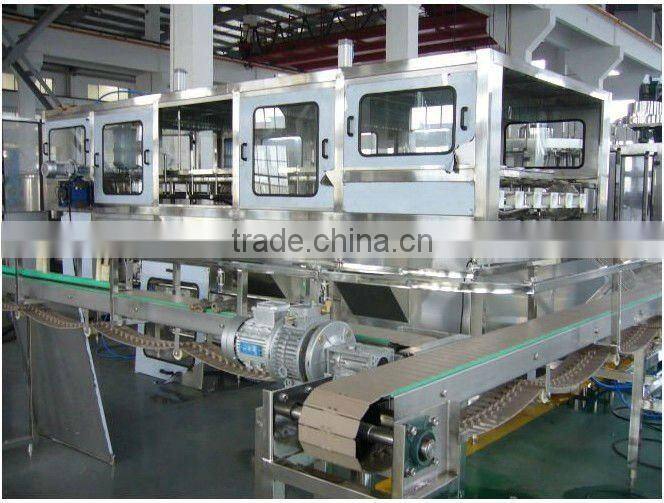

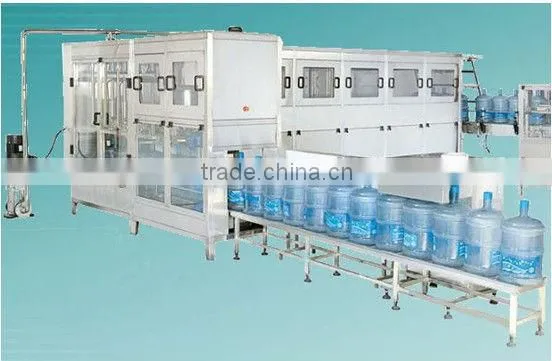

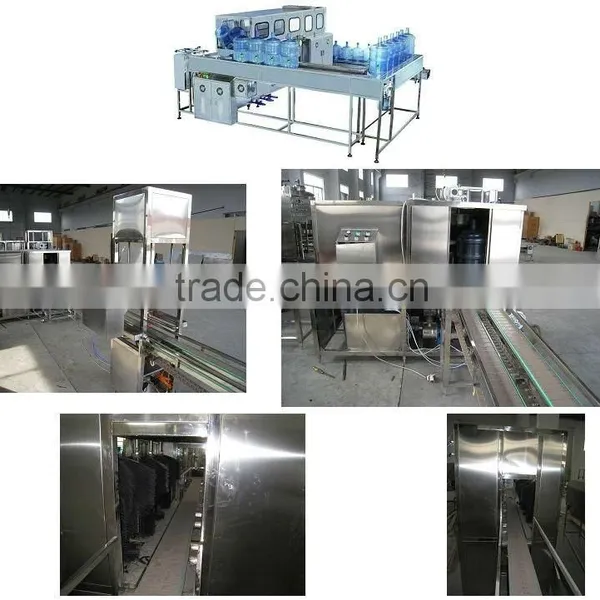

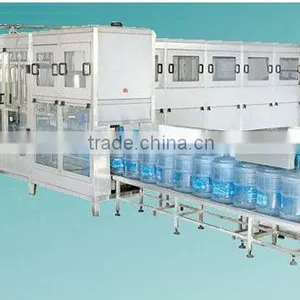

QGF mineral water filling machine/line for 18.9L 5 gallon:
Production Capacity: 600BPH
PLC controlled
CE/ISO
High quality,impeccable
Product Description:

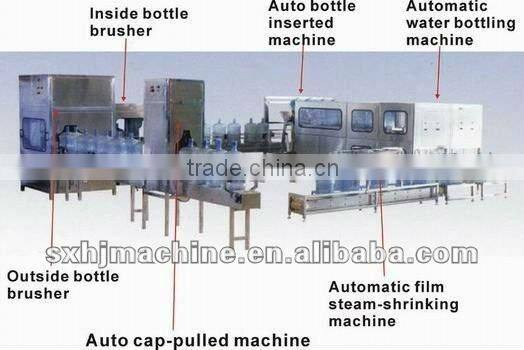

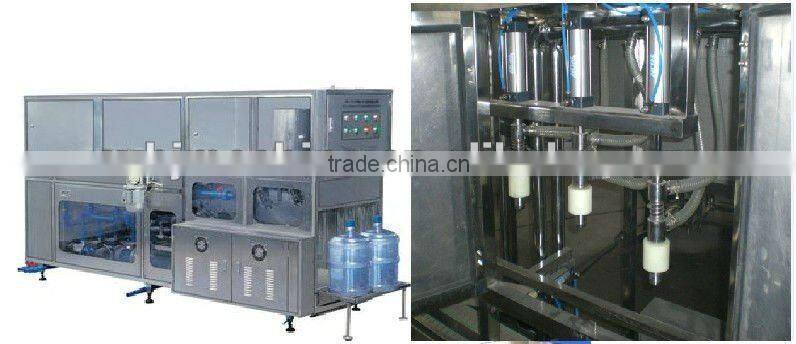

Our 18.9 liter 5 gallon bottle washing filling capping machine(QGF-600)combines the automatic washing internal bottle, filling water, placing cap, pressing cap and products outputting in one unit.
1. PLC (Programmable Logical Controller) control, full-automatic working, filling volume adjustable in high precision
2. which with Panasonic brand and the Air TAC brand pneumatic elements making the machine working more functionally
3. The international famous brand electric appliances such as LG, OMRON, pneumatic elements choose the Air TAC brand, which ensure the machine working more safely, and heavy duty running
4. The main body & frame of the machine are made of 304 stainless steel, all fine polish, sanitary & good looking
5. The high pressure inject spraying washing system can wash bottles more perfectly
Inchmeal filling system, adjustable filling time, no water spatter when flushing the bottle.
Parameter:
Model |
QGF-80 |
QGF-150 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
Filling heads |
1 |
1 |
2 |
3 |
4 |
6 |
Filling volume |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel size |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
Production capacity |
80 |
150 |
300 |
450 |
600 |
900 |
Gas pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
1 |
1.2 |
Gas consumption |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
Motor power |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9 |
Motor voltage |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Weight |
500 |
700 |
1200 |
1600 |
2000 |
3500 |
Overall dimension |
2500×1100×1600 |
2800×1100×1600 |
3800×1300×1600 |
4200×1600×1600 |
4800×800×1600 |
4200×2300×1600 |
Standard Features - Washer Parts:
1. Level control on wash and/or sanitize tanks with automatic fill - low level cut-off
2. Electric wash heater with temperature control and indication
3. Bottles automatically unloaded into cleanroom environment for filling
4. 304 Stainless steel baskets for recycled wash and sanitize rinse water
5. Air cylinder driving through fill and capper
6. High velocity spray nozzles with placement for maximum cleaning/rinsing
7. The hot detergent tank combined thermal system and temperature adjustable and temperature display meter
8. 1 line 4 washing section
9. ** 1st & 2nd are hot detergent washing sections
10. ** 3rd is dripping water section
11. ** 4th is the pure water
