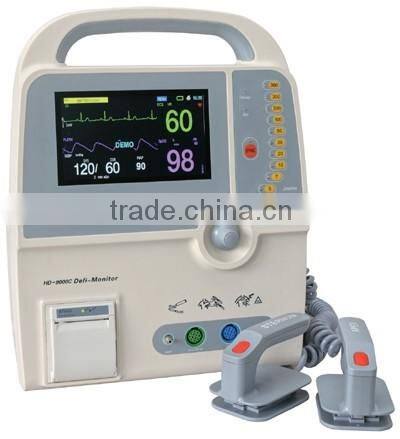

HD-9000C Hospital medical monophasic external difibrillator monitor
Technical specifications
DEFIBRILLATOR
(1)Defibrillator type: Manual,Synchronized,Asynchronized
(2)Out put waveform: Biphasic technology
(3)Energy accuracy: ∠+1%
(4)Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal ata resistance of 50)
(5)Charging time: Maximum 8 seconds to 360 Joules
(6)Standard Adult/Pediatric Paddles: Reusable external adult paddles(pediatric paddles integrated)
Power requirements.
(a)AC Power supply: 100V~240V,50Hz/60 Hz
(b)Vehicle Voltage(Option): DC 12V
Internal Battery Backup
(1)Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2)
(2)Charging time: Time-Minimum of 4 hours for full charging
(3)Battery charging: During AC Power Supply operation of the device.
(4)Charging /Low Battery Indication: Red LED
(5)Battery Capacity: 100% of the battery will provide 120 mins of monitoring;and 30 discharges at 360 joules.
Display
-LED Dimensions: 7-inch
-Type: High resolution true-color graphic LED
-Resolution 480X234
ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation.
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cufftype: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45℃
Resolution 0.1℃
Pulse Oximetry(spO2)
Display :spo2 value,pulse histogram,waveform,Pulse
Range:0~99%for adult,pediatric and neonatal patients
Probe :standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse range
Pulse range: 0-255bpm
Standard parameter & configuration
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
