Beverage Mixer Machine
- 8 Set / Sets per Month
- shanghai port
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220/380/415V | Power: | 1.1-5.1(kw), 1.1-5.1(kw) | Place of Origin: | Jiangsu, China |
Brand Name: | wanjin | Model Number: | QHS | Dimension(L*W*H): | 1500*1000*2000 |
Weight: | 800kg | Certification: | CE/SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

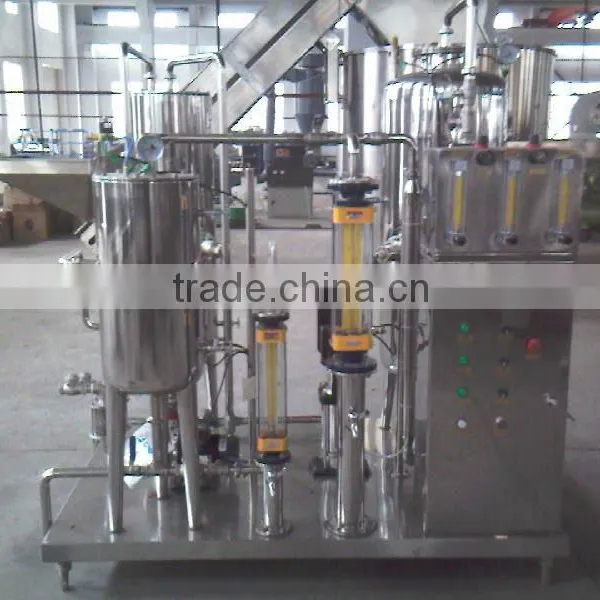

Beverage Mixer Machine
Beverage Mixer Machine
This series beverage mixer is used for all kinds of carbonated drinks' mixing. It can mix the purified water, CO2 and syrup together to be carbonated drinks
Main Features:
1.Good material, perfect processing. All the parts of the machine contact with liquid are made of high quality stainless steel 304, which exactly is up to requirements regulated by internation food sanitation.
2.Full automatic with alarm system. All the pressure in the can and liquid level adjustment will be debugged automatically, via PLC to control the whole process of operation. Once there goes wrong, the alarm light and alarm ring will be on to stop the machine automatically.
3.Easy operation and debugging. This machine is easy to operate. Without changing any part, you can debug the production capacity, water, syrup match, and the gas content.
4.Complete mixing, correct match. The mulling ratio of water and syrup is seriously controlled by measure pin valve, with precision up to 5%.
5.Enough air with high efficiency. The machine adopts normal pressure to oxygenate, with the oxygenation rate is above 90%. Also collocated with plate heat exchanger to mix the sugar water, and then cool to secondary carbonation. So the air content is rich which could reach to 3 times.
Technological data:
Model | QHS-1500 | QHS-2500 | QHS-4000 |
prduction capacity | 1500kg/h | 2500-3500kg/h | 6000kg/g |
carbon dioxide content | >2.6 | ||
lnlet temperature of the chilled wated | 0-4°C | ||
power | 1.1kw | 2.42kw | 5.1kw |
overall dimensions | 1000*900*1800mm | 1500*1000*2000mm | 1660*1600*2150mm |
weight | 500kg | 800kg | 2500kg |
Pictures
