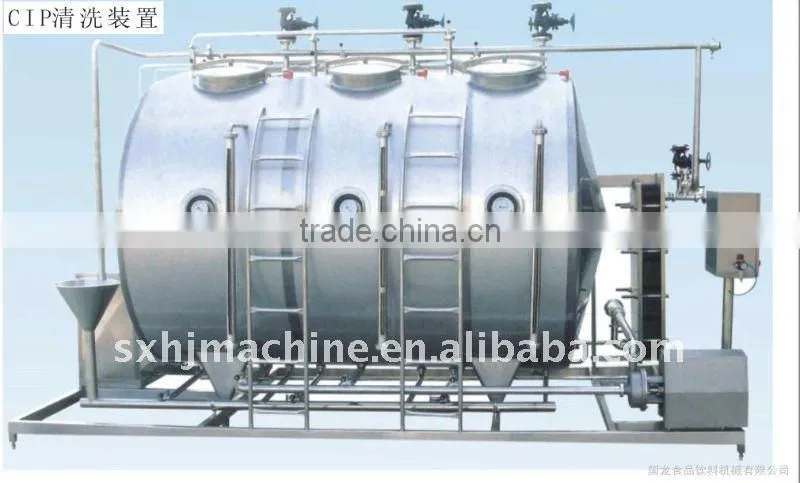

Auto CIP Cleaning System /Minute Vertical CIP System

Name: Auto CIP Cleaning System /Minute Vertical CIP System
Brand: wanjin
SKU: 105515099
Availability: InStock

US$ 9,500 - 32,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

wanjin

Zhangjiagang City Wanjin Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name wanjin

Model Number WJ

Voltage 220/380/415V

Processing Types Carbonated Beverage

Certification CE/SGS

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Auto CIP Cleaning System /Minute Vertical CIP System

brief introduction

1.The product is suitable for CIP cleaning of the material pipes and containers in diary products factories, as well as cleaning

of the material pipes and equipments in brewery factories, beverage factories and general foods factories.

2.In the equipment, a compelled cycling process of cleaning liquids is achieved by centrifugal pump through material

pipes and containers during the cleaning process.

3.Therefore, the pipes and equipments need not to be disassembled,

which improves the availability of equipments and reduces labors working burden greatly. As a conclusion, this product is

a type of advanced cleaning equipment.

4.CIP system is one of the prerequisites of sanitary standards on food and pharmacy production .

5.It can remove the active ingredients, cross contaminations as well as insoluble particles of impurity and reduce

or remove the germs and the contamination on the productions by the heat source .

6.As CIP system is required in pharmacy industry according to GMP and the automatic CIP systems overseas are

expensive, the usage of CIP system has been limited in some corporations of our country.

the form below is the main composition of the equipment

Name	Simple instruction
Alkali tank	Material 304, conic top and tonic bottom, thickness:50mm, keeping warm
Acid tank	Material 304, conic top and tonic bottom, thickness:50mm, keeping warm
Hot water tank	Material 304, conic top and tonic bottom, thickness:50mm, keeping warm
Dense acid and alkali tank	Material 316,single layer, plate top and plate bottom pot or berried pot
Advancement pump	Material 316,single layer, plate top and plate bottom pot or berried pot
Dense acerbity and alkali pump steam motred film pump	Material 316,flow:1000L/H
Plate heat exchanger	Material 304, 18 square meters
Filter	Material 304
Returning pump, self-priming pump	Material 316, flow:20 m³/h,lift:20m, electric motor:4kw
Controlling cabinet	The shell is stainless :controlling method can be made to order
