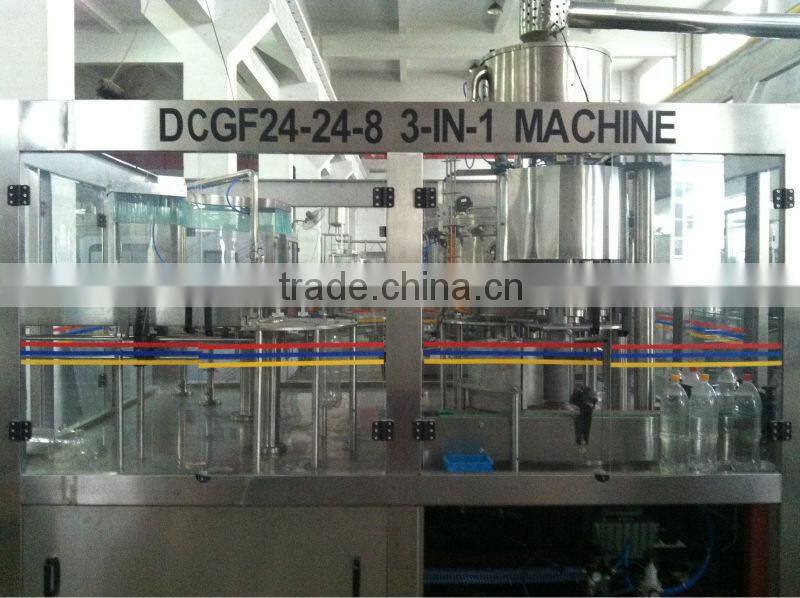

DXGF Series 3in1 Carbonated/Soda Water filling Machine(hot sell)
3in1 carbonated drinks filling machine
3in1 soda water filling machine
The carbonated beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable .The application of alarm devices for bottle jam ,bottle shortage,bottle damage, cap shortage, over loading etc in several places ensure the quality of its production.The machine obtains advantages of high reliability,high efficiency,high grade of automation and easy operation
Capacity:2000-30000 bottls per hour
Packaging: PET bottles.
Applicable Bottle Type: 330ml, 500ml, 600ml, 1liters, 1.5liters
Can be filling on different bottle sizes; it adopts hanging type bottle chuck that can change over bottles easily and fast.
Features:
Bottle Washing Part
1. Adopt hanging bottleneck locked method, convenient to change the type of bottles.
2. Spring-type washing and cleaning pliers are applied, empty bottles can automatically turn 180 degrees with tracks.
3. Twice washing and cleaning for inside and outside surfaces, the washing and cleaning efficiency.

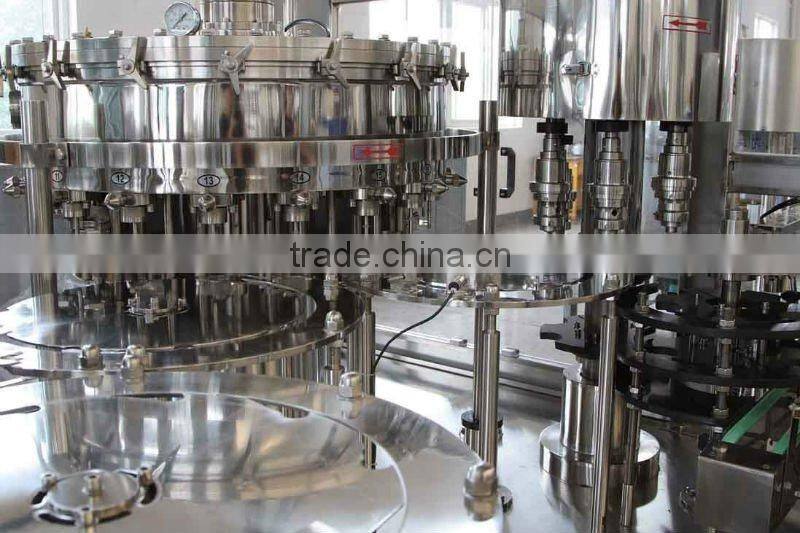

Advanced Filling
3.The technology is comes from Germany and italy. Its filling speed is fast and the liquid amount is controlled accurately.
The filling device can be stopped automatically when there is no bottle or bottles were damaged.
4. Magnetic torque type cap turning can fasten but not damage the bottle caps.
Main technical parameters | ||||||||
Model |
DXGF16126 |
DXGF18186 |
DXGF24248 |
DXGF32328 |
CGFD404010 |
CGFD505012 |
CGFD606015 |
CGFD808020 |
washing/filling/ |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-12 |
60-60-15 |
80-80-20 |
Specifications for bottle |
Φ=50-100 H=170 330-1500ML |
Φ50-Φ110 H=160-340 |
||||||
Capacity(350ML) |
2000- 4000 |
4000- 6000 |
8000- 10000 |
10000-12500 |
12500 -15000 |
16000 -20000 |
20000 -24000 |
26000 -32000 |
Filling temperature |
0-5 |
|||||||
Filling ways |
Normal pressure filling |
|||||||
pressure |
0.2-0.25 |
0.2-0.25 |
||||||
filling pressure |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
MotorPower |
1.5+0.55 +0.12 |
2.2+0.55 +0.18 |
3+0.55 +0.18 |
5.5+0.55 +0.18 |
7.5 |
11 |
15 |
19 |
Dimension |
2300×1600 |
2600×1920 |
3100×2200 ×2800 |
3850×3000 ×2850 |
4850×3800 ×2750 |
5750×3550 ×2750 |
6500×5500 ×2750 |
7680×6640 ×2650 |
Weight |
2800 |
3650 |
4800 |
6800 |
8650 |
10500 |
12800 |
15000 |
The capacity complete depend on the customer demands .We welcome customer to visit our company !At any time ,you will see the machine working and running in our factory !
