Home > Packaging & Printing > Packing Machinery > Filling Machine > QGF Series18.9L/5 Gallon Barrel Pure Water Making Machine

QGF Series18.9L/5 Gallon Barrel Pure Water Making Machine

QGF Series18.9L/5 Gallon Barrel Pure Water Making Machine photo-1
US$ 22,000 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220/380/415V
Place of Origin Jiangsu, China
Brand Name Wanjin
Model Number QGF
Certification CE/SGS
After-sales Service Provided Engineers available to service machinery overseas

GF Series18.9L/5 Gallon Barrel Pure Water Making Machine



QGF Series18.9L/5 Gallon Barrel Pure Water Making Machine

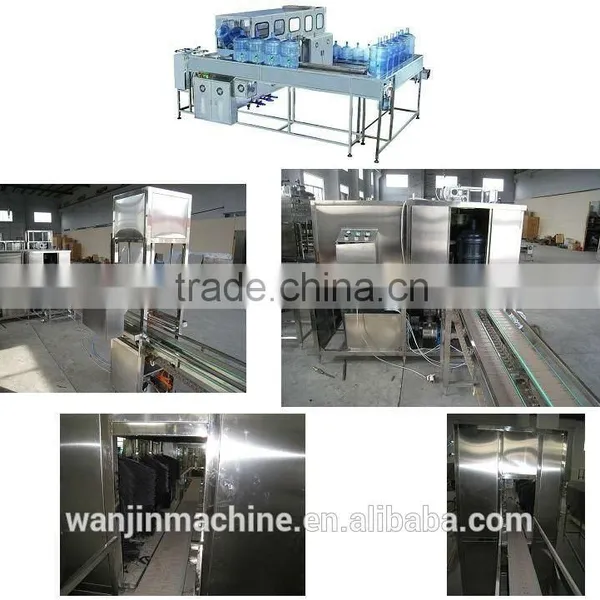

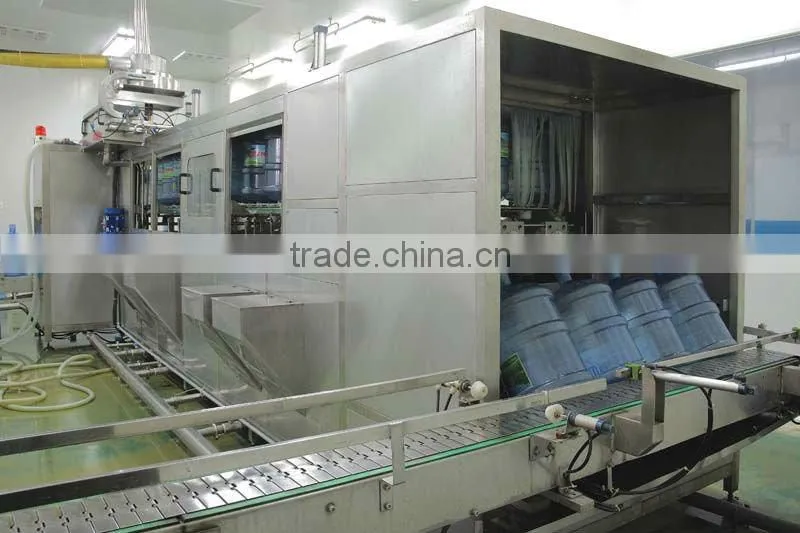

Barrel Filling Machine is the core equipment specially supplied to the barreled production line for 5 gallons barreled drinking water. It is the ideal equipment for the production of the mineral water, the distilled water and the pure water. Using the high quality stainless steel to manufacture, anti-corrosive, easy to clean. The main electrical element uses the import products. The inside and the outer nozzle used to wash the barrel uses the unique technical equipment of the import from American Spray Company. This equipment structure is compact, working with a high efficiency also stable and reliable, movement is keen and correct, the automatic level is high, is the full-automatic barreled production equipment of an integrated (machine, electricity and gas).



Technological Parameters



QGF-300

QGF-450

QGF-600

Filling Valves

2

3

4

Filling Volume

18.9L

18.9L

18.9L

Bucket Size

φ270×490mm

φ270×490mm

φ270×490mm

Capacity

300 b/h

450 b/h

600 b/h

Pneumatic Pressure

0.5Mpa

0.5Mpa

0.5Mpa

Air Consumption

400L/min

500L/min

500L/min

Power

6.5kw

7.5kw

7.5kw

Rated Voltage

380V

380V

380V

Dimensions(L×W×H)

5130×2500×2220mm

6220×3500×2170mm

6220×3500×2170mm

Weight

About 1750kg

About 2200kg

About 2500kg



We have CE Certificate:QGF Series18.9L/5 Gallon Barrel Pure Water Making Machine
