Specifications
chain coupling:1:With high corrosion resistance.
2:Long service life.
3:Short delivery time.
Mechanical Transmission Products Chain Coupling
Features: |
| 1. High torque capacity. |
2. Easy pulling out and install. |
| 3. Both shafts can be easily coupled or decoupled with a single joint pin inserted into or extracted from the roller chains. |
4. The clearances between the chains and sprockets and between chain components absorb the great positional misalignment of both shafts. |
Coupling Chain Type Covering:
KC3012,4012,4014,4016,5014,5016,5018,6018,6020,6022, 8018,8020,8022,10020,12018,12022
Drawing & Dimensions:

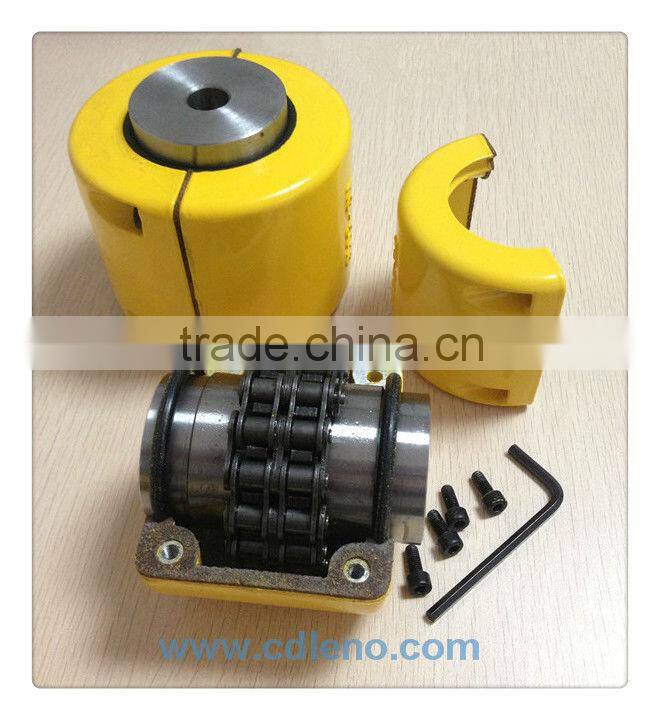

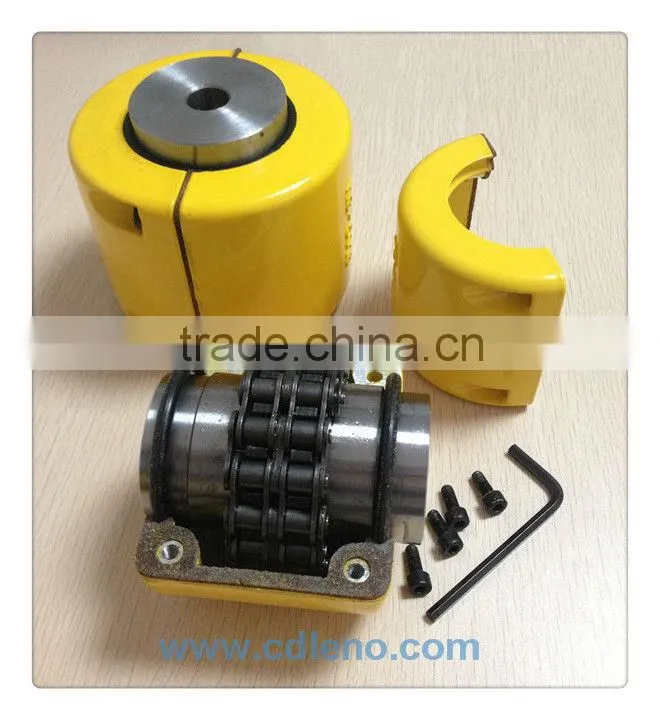

Chain Couplings Strcture
Chain Couplings are used to connect two shafts, a reducer, or a motor directly to a machine for efficient power transmissions. And it consist of a combination of only three basic parts ------ one coupling roller chain and two coupling sprockets.
Packing Details
| Company Advantages: |
1. Rich experience in cooperating with big companies in this field. |
2. Large production capacity with fast delivery and quality assurance. |
3. Rich experience in non-standard timing pulleys. |
Our Factory
Contact Details
If there is any need, pls kindly contact us without delay, we will do our best to cooperate with you!
