Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board

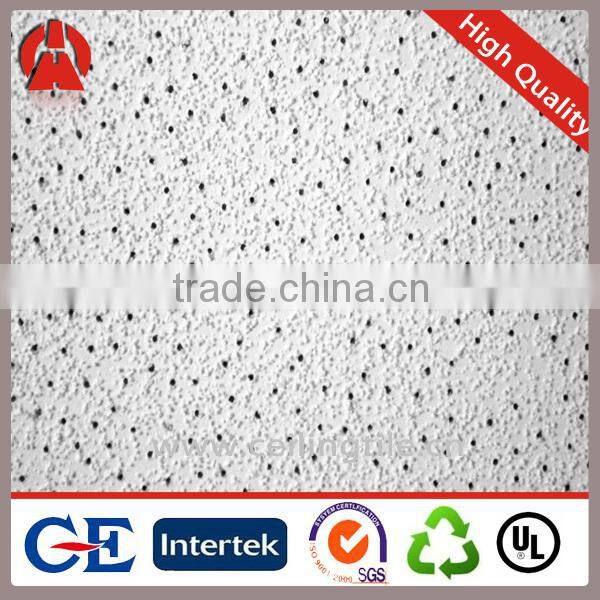

Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-1

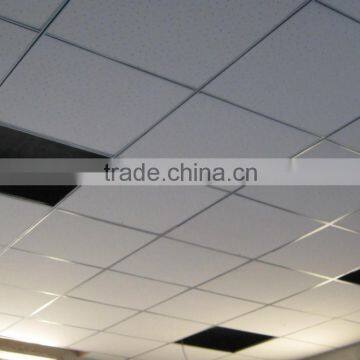

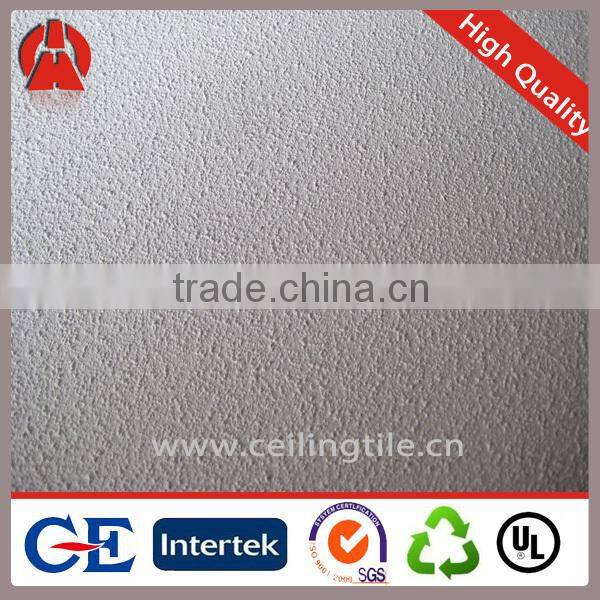

Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-2

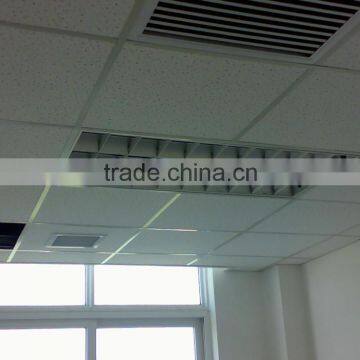

Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-3
Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-4
Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-5
Good Quality Non-asbestos no Formaldehyde Mineral Fiber Board photo-6
US$ 1 - 3 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
OEM
Model Number:
AM SERIES
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG PORT
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name OEM
Model Number AM SERIES
Function Fireproof, Heat Insulation, Moisture-Proof, Mould-Proof, Smoke-Proof, Sound-Absorbing, Soundproof, Waterproof
Feature Artistic Ceilings, Honeycomb Ceilings, Integrated Ceilings, Perforated Ceilings
Ceiling Tile Shape Square
Ceiling Tile Type Mineral Wool Ceilings

Specifications



mineral fiber ceiling board--sound absorption, fire resistance, moisture resistance, heat insulation, class A.



Acoustic non-asbestos mineral fiber ceiling board:



Standard Size: 595mm*595mm; 603mm*603mm and so on

Thickness: 6.5mm--20mm

Color: White

Finish: Factory-Applied Vinyl Latex Paint

Quality Certification: ISO9001:2000; ISO14001:2004; CE certificate

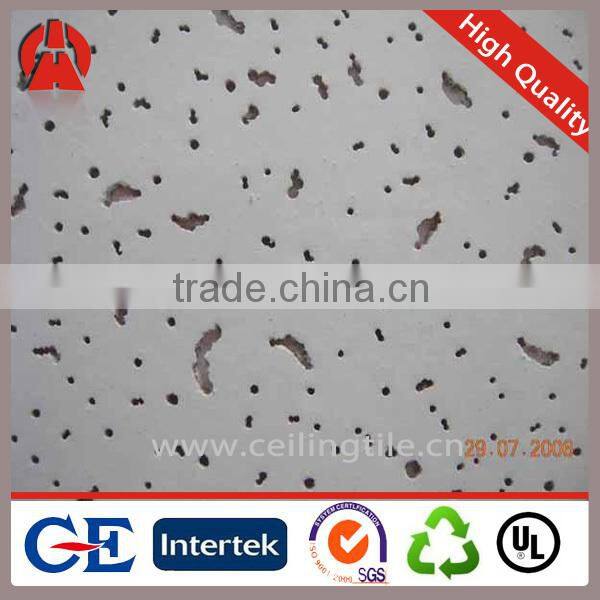

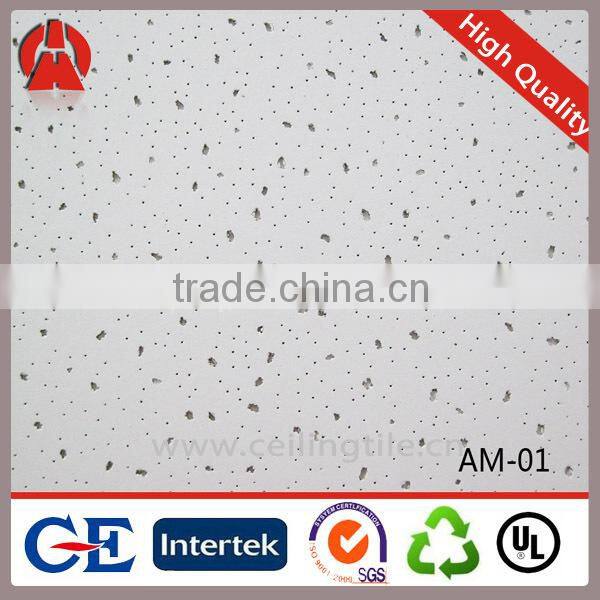

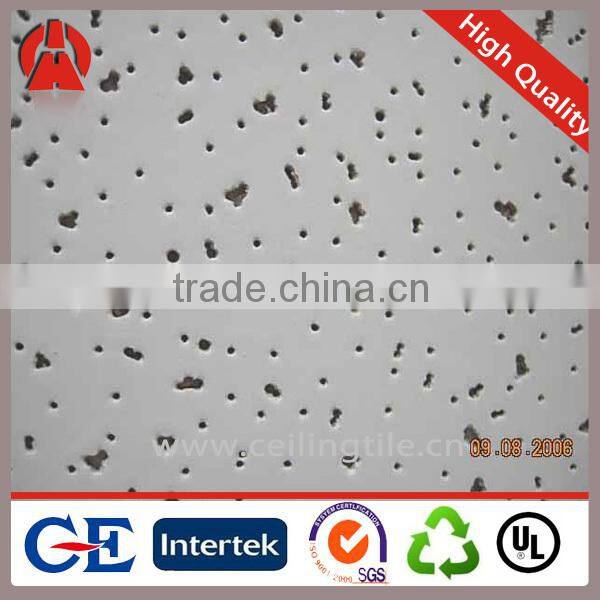

Design: Pin holes, Little stars, Lovely worms, Sand surface and sand surface with holes and so on.

Edge: Square Edge, Tegular Edge, Concealed Edge, Super Concealed Edge, Adhesive and Nails.

Notice: Other specifications and designs, we can produce according to the customers’ request.



Product Introduction:



We can produce cover more than ten varieties of six categories, acoustic decorative acoustic mineral fiber ceiling board including knurling Board, relief-embossing Board, printing Board, spraying Board, stereo-molding Board, etc. The mineral fiber acoustic ceiling board is a kind of high-grade construction decoration material. Being sound-absorbing, fire-proof, warm-keeping, energy-saving and heat-insulating, it is widely used in indoor decoration industry, especially for first-class buildings such as hotels, restaurants, large department stores, ballrooms, cinemas, stations, auditoriums, offices, guest halls, office buildings, electronic instrument rooms, precision apparatus rooms, industrials or residential buildings.



Product Specification:

Edge Detail

Metric System(mm)

British System(mm)

PCS/CTN

Square Edge

595X595X12
595X595X14
595X595X15
595X595X18
595X595X20
595X595X22

603X603X12
603X603X14
603X603X15
603X603X18
603X603X20
603X603X22

12
10
10
8
6
6

Square Edge

595X1195X12
595X1195X14
595X1195X15
595X1195X18
595X1195X20
595X1195X22

603X1213X12
603X1213X14
603X1213X15
603X1213X18
603X1213X20
603X1213X22

12
10
10
8
6
6

Tegular Edge

595X595X12
595X595X14
595X595X15
595X595X18
595X595X20
595X595X22

603X603X12
603X603X14
603X603X15
603X603X18
603X603X20
603X603X22

12
10
10
8
6
6

Tegular Edge

595X1195X12
595X1195X14
595X1195X15
595X1195X18
595X1195X20
595X1195X22

603X1213X12
603X1213X14
603X1213X15
603X1213X18
603X1213X20
603X1213X22

12
10
10
8
6
6

Concealed

300X600X12
300X600X14
300X600X15

300X600X12
300X600X14
300X600X15

24
20
20

Concealed

600X600X12
600X600X14
600X600X15

600X600X12
600X600X14
600X600X15

12
10
10



Technical Data:



Density

280--320kg/m3

Environment protection

No asbestos  No formaldehyde

RH(Humidity Resistance)

Above 90%

NRC(Noise Reduction Coefficent)

0.55-0.7 depending on the thickness

LR(Light Reflection)

0.90

Sound Insulation Grade

30 Min

Fire Resistance Grade

GB8624 A Grade

Water Content

<= 3%

Thermal Conductivity

<= 0.065W/mk























Our Services:Best quality with good hardness and light weight  ;Meet the customer's needs
