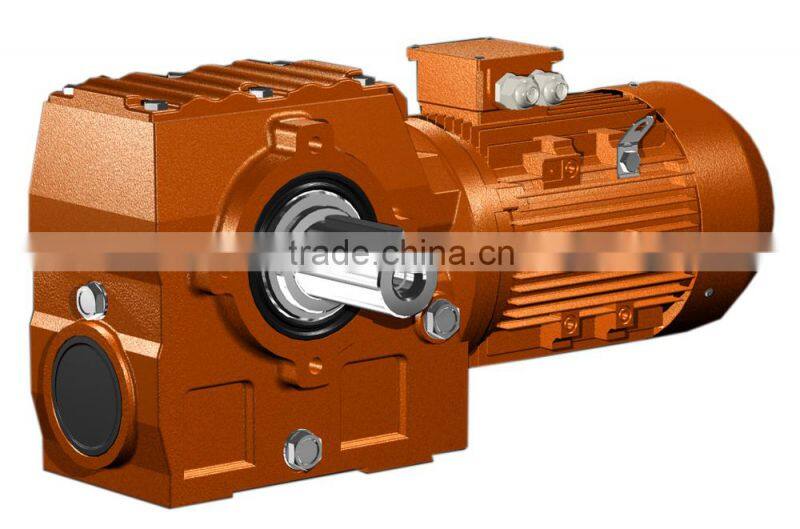

Our WS series Helical-worm gearbox is based on the building block design, so its convenient for them to fit all types of motors or to connect with other power input. Its possible for different types of machines to combine.
1) The combination of worm and gear has higher efficiency and wider speed range to single worm
2) Designation of square shape, beautiful shape, compact structure, radiate
heat efficiently and low noise
3) Good sealing and adaptability
4) Precise division of transmission ratio with a wide range. Its combination with WR gear reducer and MB/MBN variator can meet all kinds of speed requirement.

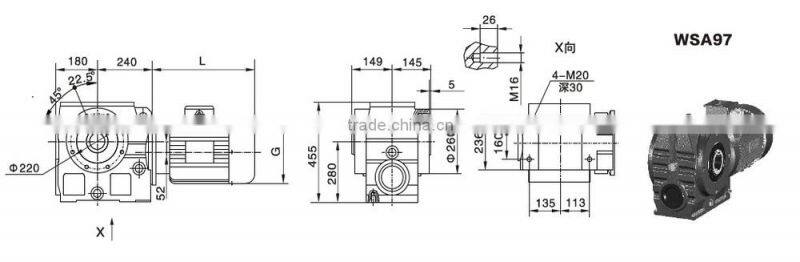

5) Specification: WS37~WS 97 seven type totally
6) Input power: 0.12~22KW
7) Output torque: 9 ~3,700Nm
8) Transmission ratio: 7.8~300
9) Installation: Foot-mounted, B5/B14 flange-mounted, input shaft, hollow output shaft, etc.
| WS series worm gear reducer | |
| Efficiency | 55%~80% (depends on the transmission stage) |
| Housing material | HT250 high-strength cast iron |
| Gear material | 20CrMnTi |
| Surface hardness of gears | HRC58°~62 ° |
| Input / Output shaft material | 40Cr |
| Machining precision of gears | accurate grinding, 6 Grade |
| Lubricating oil | |
| Heat treatment | tempering, cementiting, quenching,etc. |
| Brand of bearings | HRB heavy-duty bearing, C&U bearing |
| Brand of oil seal | NAK or other brand |
| Noise (MAX) | 65~70dB |
| Temp. rise (MAX) | 40 C |
| Temp. rise (Oil)(MAX) | 50 C |
Zhejiang Wuma Reducer Co., LTD. is a company specializing in research, development and production of various speed reducers and variators etc. It is a member of China Speed Reducer and Variator Industrial Association.
Our main products are RV series worm reducer, MB,MBN series variator, WR ,WK ,WF series helical gear reducer, WS series helical-worm gear reducer, WH/WB series high power reducer and WAH series hypoid gear reducer etc.We can also provide customised products.The products have serialized and modularized advantages, and have been widely used in the driving fields and transmission for all types of industries.
Our company has internationally and domestically advanced gear grinders, machining center and gear inspection center, as well as universal tool microscope etc. testing and machining equipmentWe have an annual production capacity of 200,000 sets of reducers.
We manufacture according to the ISO9001:2000 quality control system. In 2001, we obtained self-operating import and export qualification certificate. The products have been widely used all over China and exported to Europe, America, HongKong, Taiwan, outh America and Southeast Asia etc.
