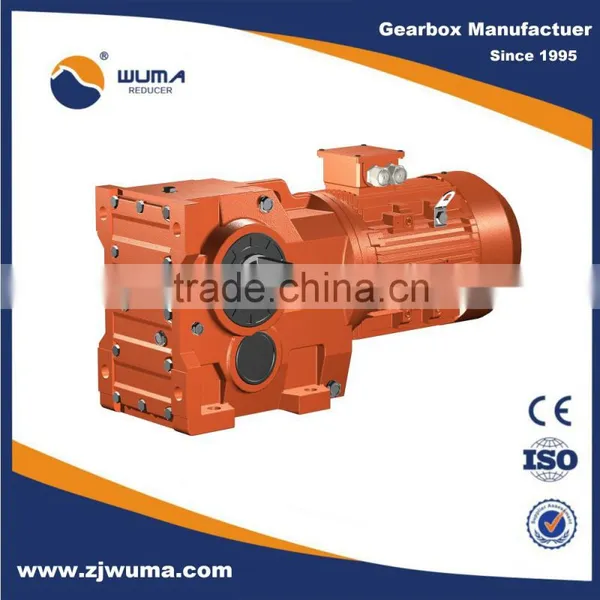

Flange Mount Helical Bevel Gearbox

Name: Flange Mount Helical Bevel Gearbox
Brand: Wuma or other
SKU: 105481877

US$ 82 - 2,500 MOQ: 1 Piece

Key Specifications

Gearing Arrangement:

Helical

Output Torque:

150~50000Nm

Rated Power:

K series gear speed reducer can be used with circular-conic

Zhejiang Wuma Reducer Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Gearing Arrangement Helical

Output Torque 150~50000Nm

Rated Power K series gear speed reducer can be used with circular-conic

Input Speed 1400rpm(4pole),others

Output Speed 0.08~263r/min

Place of Origin Zhejiang, China

Model Number WK47

Brand Name Wuma or other

flange mount helical bevel gearbox

Similar Products


WK SERIES	WS SERIES	WF SERIES

Specification

WK series bevel gear of right angle gearmotors

1. Specification: 37~187 twelve type totally

2. Power: 0.12~200KW

3. Torque: 150~50000N•m

4. Transmission Ratio: 5~195

5. By motor direct connection and shaft input, feet, flange and small flange etc., mounting form.

WK series helical reducer
Efficiency	94%~98% (depends on the transmission stage)
Housing material	HT250 high-strength cast iron
Gear material	20CrMnTi
Surface hardness of gears	HRC58°~62 °
Input / Output shaft material	40Cr
Machining precision of gears	accurate grinding, 6 Grade
Lubricating oil
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing
Brand of oil seal	NAK or other brand
Noise (MAX)	65~70dB
Temp. rise (MAX)	40 ℃
Temp. rise (Oil)(MAX)	50 ℃
Vibration	≤20µm
