WAH75C Hypoid Gear Reducer With Output Shaft
US$ 22 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WUMA
Model Number:
WAH75C with shaft
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WUMA
Model Number
WAH75C with shaft
Gearing Arrangement
Hypoid
Output Torque
Up to 500NM
Rated Power
0.12,0.18,0.25,0.37,0.55,0.75,1.1,1.5,2.2,3,4
Input Speed
1400rpm or other
Output Speed
7.5,10,12.5,15,20,25,30,40,50,60

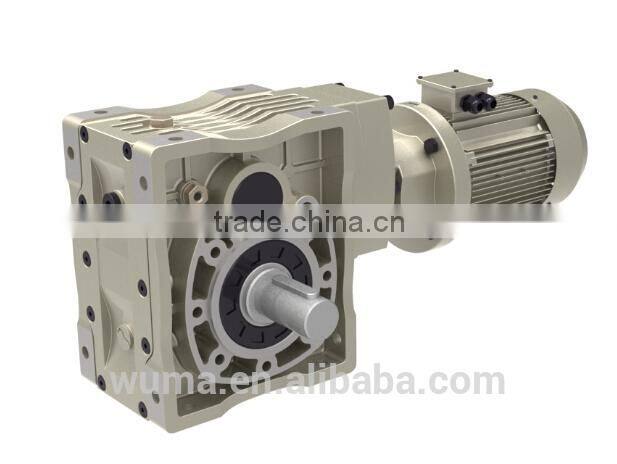

WAH75C Hypoid Gear Reducer with output shaft
Similar Products
 |
|
|
| RV SERIES | PC SERIES |
COMBINATION OF RV SERIES |
Product Description
Characteristics:
Product Name: WAH Series Hypoid Gear Reducer
Product Description :WAH series helical-hypoid gear units is a new-generation of product developed by our company .With a combination of advanced technology both from domestic and aboard .
| TYPE | WAH50,WAH63,WAH75,WAH90 |
| Transmission Stage | B: 2 stages |
| C: 3 stages | |
| Ratio | B: 7.5,10,12.5,15,20,25,30,40,50,60 |
| C: 50,60,75,100,125,150,200,250,300 | |
| Output torque | Up to 500NM |
| Motor power | 0.12~4KW,with flange:B5 or B14 |
| Housing material | Aluminum alloy |
| Output shaft | material: 40Cr |
| Hardness level: 242-286HB | |
| Helical gear | Material:20CrMnTi |
| Hardness level: 58-62HRC | |
| Precision level:6 grade | |
| Transmission efficiency | B:92%-94% |
| C:90%-92% | |
| Oil seal brand | SKF |
| Bearing | C&U |
| Lubricant | Mineral oil or sythetic oil |
| Difference from RV | ||
| project | WAH | RV |
| Transmission | Hypoid gear,Cylindrical gear | Worm wheel,worm shaft |
| Transmission efficiency | High(about:90%-92%) | Low(about:50%-85%) |
| Bearing capacity | 1-1.5 | 1 |
| temperature-rise | 30°C | 60°C |
| Running temperature | 50-60°C | 70-80°C |
| The sealing reliability | High | Low |
| Life | Long | Short |
| Self-locking | Non | Some ratio |
| Extension shaft | Non | Some |

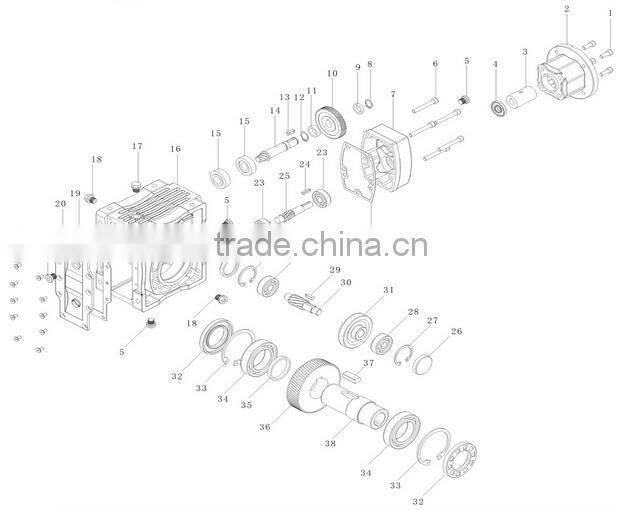

| 1,Inner hex screw | 15,Hexagon sunk screw |
| 2,Intput flange | 16,Seal cover |
| 3,Oil seal | 17,Hole-circlip |
| 4,Intput adaptor | 18,Bearing |
| 5,Shaft-circlip | 19,Gearing |
| 6,Key | 20,Key |
| 7,Gear shaft | 21,Gear |
| 8,Bearing | 22,Oil seal |
| 9,housing | 23,Hole-circlip |
| 10,Breather | 24,Bearing |
| 11,Oil plug | 25,Distance collar |
| 12,Rubber | 26,Gear |
| 13,Cover | 27,Key |
| 14,Oil drain plug | 28,Hollow shaft |
Parking&shippment

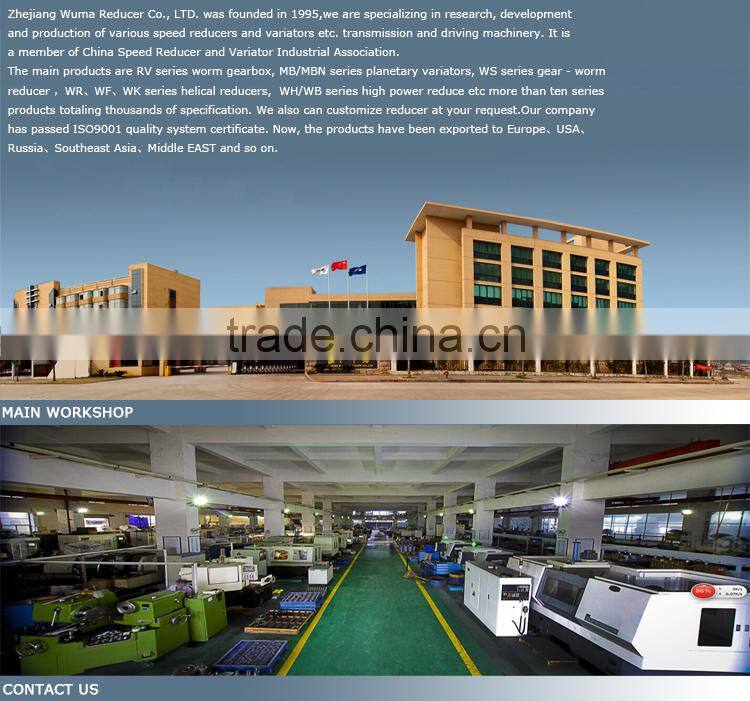

Company Information
