10000 Dots Dengsity Waterproof P10 Red Led Display Module

Shenzhen Coolview Display Technology Co., Ltd.
10000 Dots Dengsity Waterproof P10 Red Led Display Module thumbnail-1
10000 Dots Dengsity Waterproof P10 Red Led Display Module photo-1
US$ 7.5 - 8 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
coolview
Model Number:
CV-O-P10RC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name coolview
Model Number CV-O-P10RC

Specifications

1.Silan,Epistar chip
2.encapsulation by Unilumin
3.stable quality with 5 years warranty
petitive price

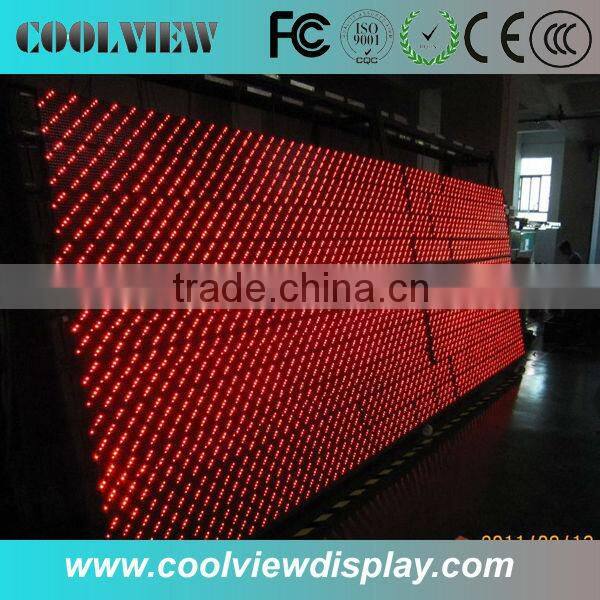

10000 dots dengsity waterproof p10 red led display module



Coolview p10 red led display module Description:



led display for indoor stage outdoor advertisement, music club use, The advantage of the LED display is low power consumption,transparent & low cost. The most common use LED curtain display is

P10mm,P16mm , P20mm . The Large size,full colorfull effect for the outdoor advertising.



Coolview products range:



LED DIP module:



         single color : P10 R,P10 G,P10 B,P10 Y,P10 W



         double color:P10 RG ,P10 RB,P16 RG



         full color:   P10,P16,P20



LED SMD module:





             SMD: P3,P4,P5,P6,P7.62,P8,P10

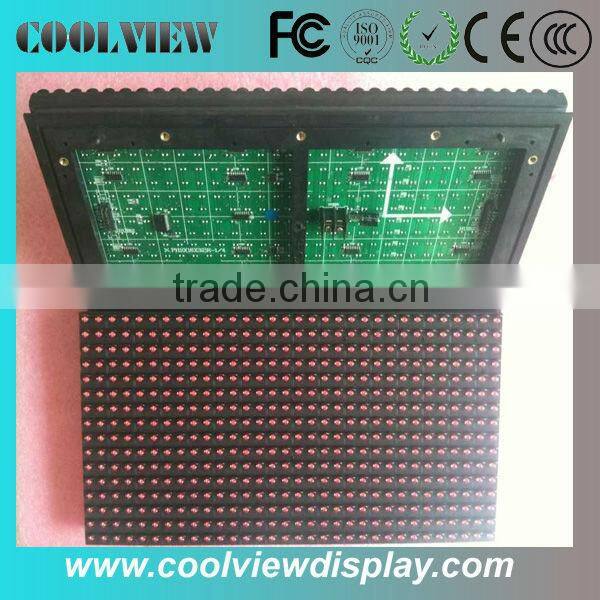

p10 red led display module Module:



 10000 dots dengsity waterproof p10 red led display module



p10 red led display module Technical parameters:



Project classificationConventional display
modelP10
Pixel unit modulePixel pitch(mm)10
Pixel density (dots/sqm)10000
LED typeDIP 546
Module size(mm)W320×h160
Pixel composing1R
Pixel unit screenscreen size(mm)based on customer need
module Resolution (nits)W32×h16
Cabinet structureWater-proof
installationfixed on the back
screen materialironaluminum
The way the cascadeAviation head
Protect degreeIP65 front ,IP54 rear
Display parametersViewing distance(m)7~105
brightness(cd/sqm)5000 cd/sqm or 5000 nits
Power consumption (w/sqm)18 max
Driving IC1/4 scan SL 16739P
Refresh rate(HZ)≥2000
Display ratio (suggest)4:3/16:9
Viewing angel(c)H130 V65
System working voltage88-132VAC176-264VAC 47-63HZ
Other parameterImage adjustmentcontrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processingVideo noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformityThe whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray65536
Color temperature/contrastRed, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting DistanceThe shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input SignalRF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control SystemPCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time5000 hours
Life span100,000 hours
Out-of Control rate0.0001
To floor drain currentLess than 3.5MA
Control systemSynchronized
Operating Environment Temperature-20°C—65°C Optional



Coolview p10 red led display module after-sale service:



1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance

manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.



p10 red led display module factory:



10000 dots dengsity waterproof p10 red led display module



10000 dots dengsity waterproof p10 red led display module



p10 red led display module all kinds of cabinets:



10000 dots dengsity waterproof p10 red led display module





Coolview certificates for p10 red led display module :



  10000 dots dengsity waterproof p10 red led display module
