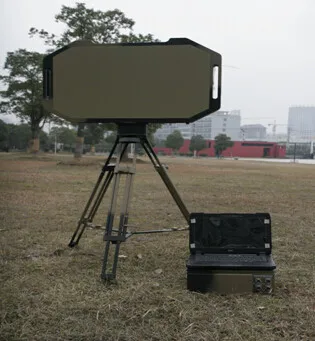

JY-17A Portable Surveillance Radar

JY-17A Portable Surveillance Radar thumbnail-1
JY-17A Portable Surveillance Radar photo-1
US$ 110000.00 - 120000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Ecriee
Model Number:
JY-17A
Contact Supplier Request Quote Chat Now
CETC (Hefei) Brainware Information Development Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Ecriee
Model Number JY-17A
Product Description

1. Operating Frequency: X band

2. Operating Mode: Regular mode (for ground)

                                         Sea mode

                                         Air mode (target height<1000 m)

3. Detection coverage (possibility of detection Pd＝80%, false-alarm probability Pfa＝10-6，4°/s, SweringI target, range    of visibility)

   σ=1m2:　　≥10 km

  σ=2m2:　　≥11.5 km

  σ=5m2:　　≥13 km

  σ=10m2:　 ≥16 km

4. Blind area of range: 150 m

5. Scanning mode:

     Mechanical sector scan: 30°~240°

     Range of electrical scanning: 30°

6. Continuous working time: 4 hours (single battery)

7. Weight of radar: ≤35 Kg (excluding battery and tripod)

8. Measurement accuracy

     Distance:　30m

     Azimuth:      1°

Product Name
PORTABLE SURVEILLANCE RADAR
Antenna form:
assembly feed planar antenna array
Operation frequency:
9.51-9.87 GHz
Antenna array surface gain
≥31 dB
Slow wave line loss:
≤2.5 dB
Beam Width Horizontal plane
2.5°±0.5°;
Beam Width Vertical plane
6.5°±0.5°
Electronic scanning scope:
30°(in azimuth)
