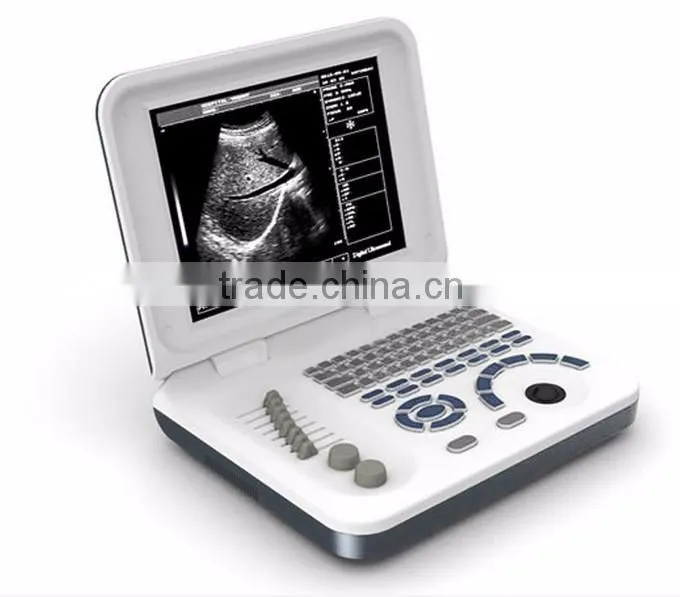

Help CenterLaptop Vet Ultrasound Scanner/color Doppler
Related Products
-
Low Price Portable Ultrasound Machine, Mini Laptop Ultrasound ScannerUS$ 1 - 1,500MOQ: 1 Unit -

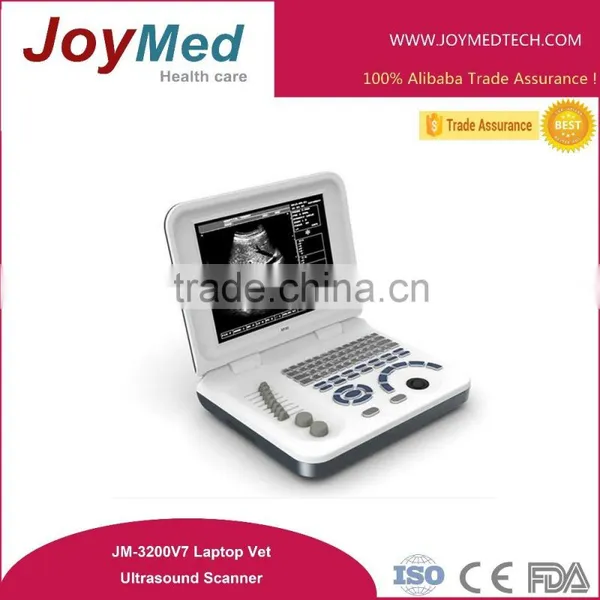

JM-3200V7 Animal Hospital Laptop Diagnostic Vet Ultrasound ScannerUS$ 1 - 1,500MOQ: 1 Unit
-
15" Large Screen Portable Ultrasound/laptop Diagnostic Ultrasound Scanner for PregnancyUS$ 1 - 1,500MOQ: 1 Unit
-
Mini Swine Pregnancy DetectorUS$ 1 - 300MOQ: 2 Units
-
Pig Pregnancy DetectorUS$ 1 - 300MOQ: 2 Units
Display mode:B;B/B;4B;B +M;M
Display size:10.4inch LED displayer
Image multiplying factor:3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom:Magnify 2 times of real time image
Dynamic range:0~120db adjustable
Focus position:Dynamic electron focusing
Image proessing:8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale:256 levels
Frequency conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function:Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function:Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide:3.5MHz convex array probe can display punture guide in B mode
Gain control:8segments TGC and overall gain can be adjusted respectively
Image polarity:Left and right flip; up and down flip
Capacity cine loop:Real time display 256 consecutive images which are moemorized successively
Image playback:Series playback or check one by one
Permanent storage:128 images
Output interface:USB port
