Hospital MRI Equipment MRI Machine MRI Scan for Sale

Excellent price performance ratio

Comprehensive application suite and powerful software included in standard configuration

Patient friendly appearance

Most open C-shaped magnet

Minimal sitting requirements

Less than 50 m² (538 sq.ft);

Low operating Costs

Permanent magnet – no helium

Higher revenues

Attractive to more patients and referring physicians

Excellent Return On-Investment

Decreased costs-optimized profitability

Efficient and Professional service team

24 hours service on-line

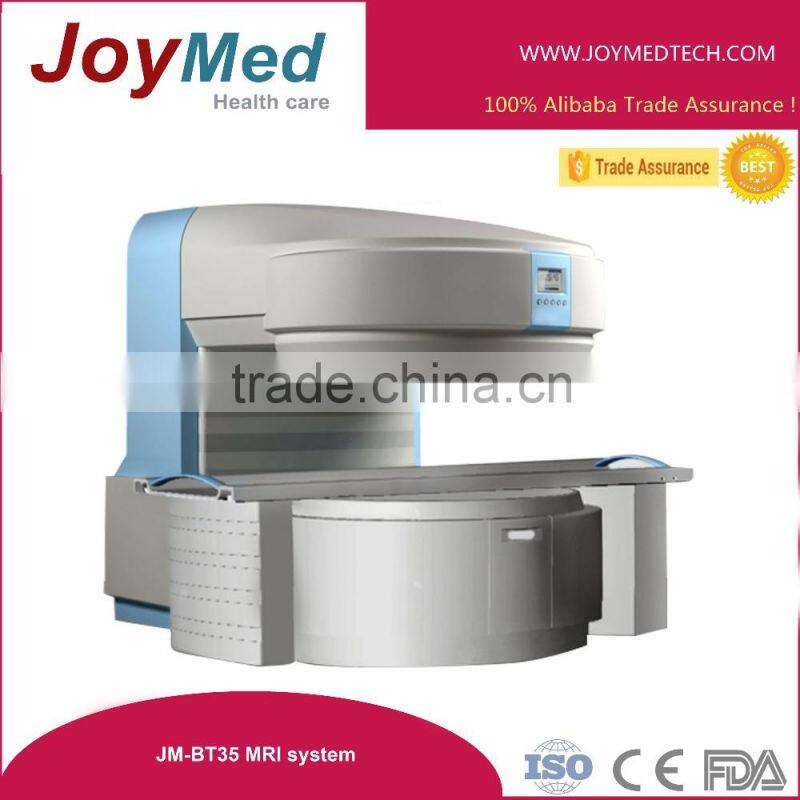

Specifications of BTI-035 System

1.0 Magnet:

Operating Field Strength: 0.35 Tesla(3500 Gauss)

Magnet Type: Full open C-shaped, 2-colum

Magnetic material: Permanent Nd-Fe-B magnet

Homogeneity: (400mm DSV) ≤ 2.0ppm (Vrms)

            (200mm DSV) ≤ ±1ppm (FWHH)

Shimming: Passive & active shimming

Patient gap: 400mm(from cover to cover)

Net Weight: 17,500KGS

Dimension: 1970mm*1320mm*1820mm

2.0 Gradient System:

Gradient strength: max. 25mT/m (Gx/Gy/Gz)

Slew rate: 75mT/M/ms (Gx/Gy/Gz)

3.0 RF System:

Spectrometer: Digital (4 channels)

Transmitting coil: Flat planar coil

Receiving coils: Phase array coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil, Wrist coil, Shoulder coil)

Optional coils: spine coil, breast coil, ankle coil, etc.

Power of transmitter amplifier: 6KW

4.0 Computer System:

Operating system: Windows2000/NT/XP

CPU: 2.8GHz(Dual Core Processor)

Hard disk: ≥250GB

RAM: 2048MB (2GB)

Display Device: ≥22’’ TFT

Network & laser printer interface: DICOM3.0

Software: BASDA BTI-035 Software

5.0 Auto Pre- scan

6.0 Pulse Sequence:

Standard IR

Spin Echo ( SE 2D/3D)
