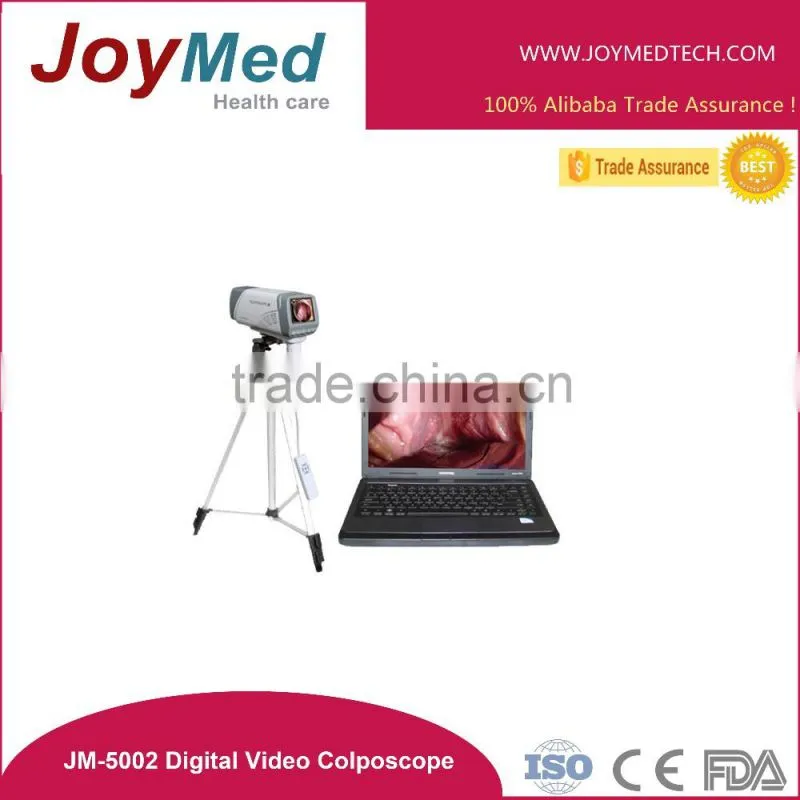

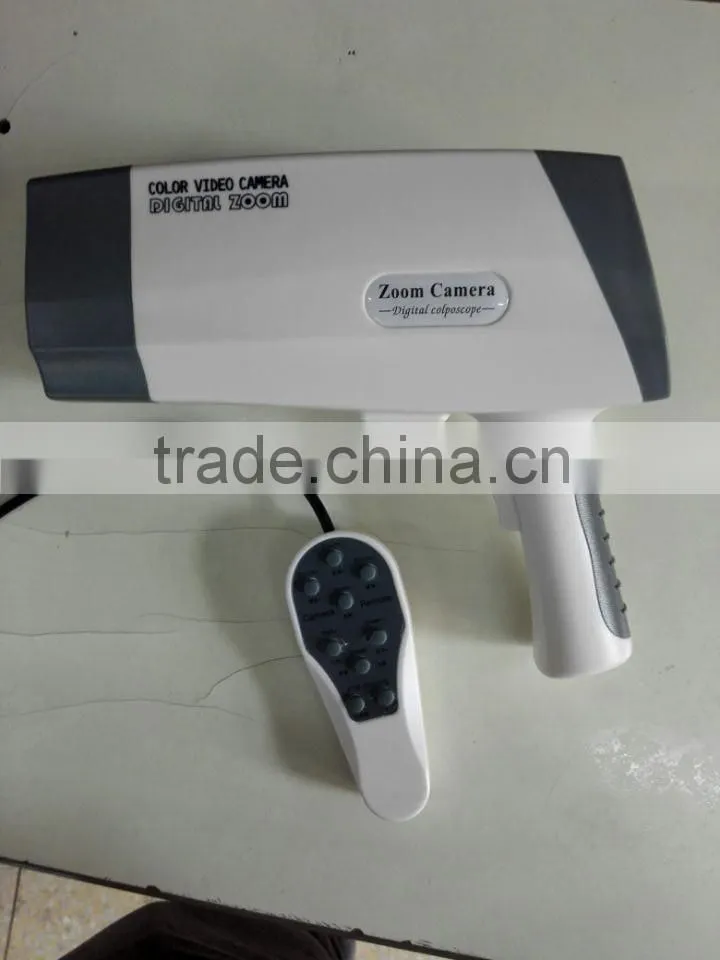

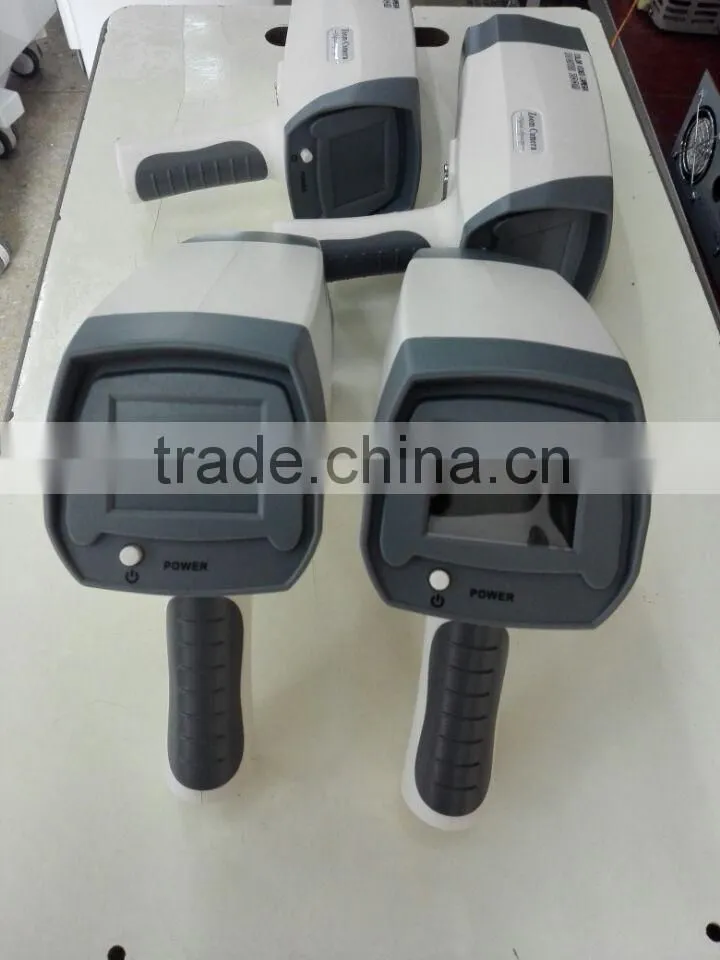

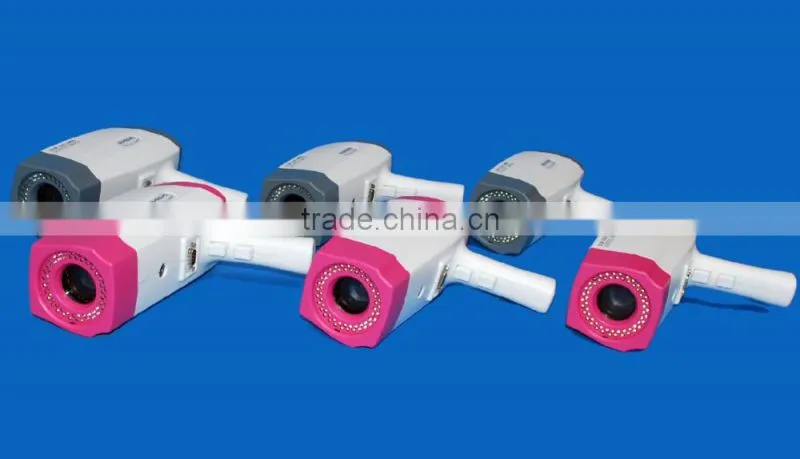

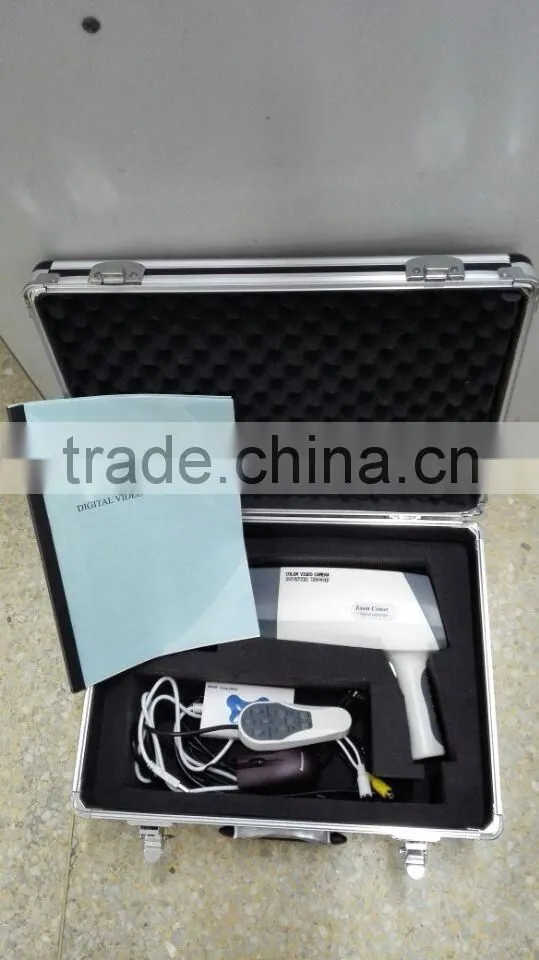

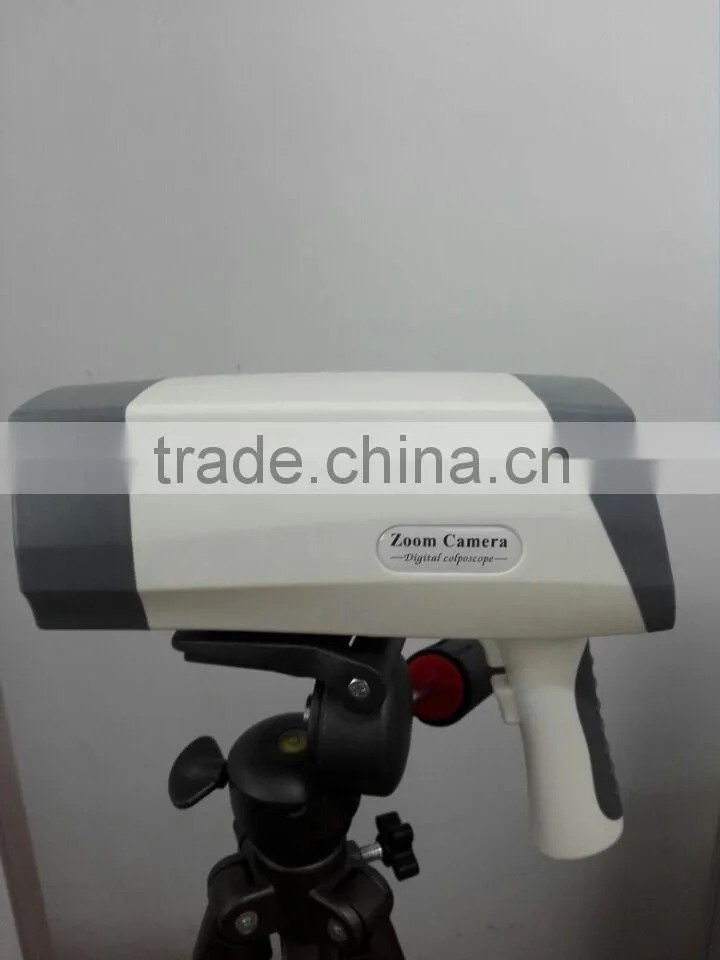

JM-5000 Digital Video Colposcope /Colposcope Camera/colposcopy system
Colposcope Application:Vaginalitis, cervical ectropio, cervicitis, especially examining in the early diagnosis of cancer
Colposcope Specifications:
· Import high-definition digital color Sony 1/4 Super HD COLOR CCD. Illumination:0.02lux (Minimum ) Pixels: ≥800,000 (2000000pixels is optional)

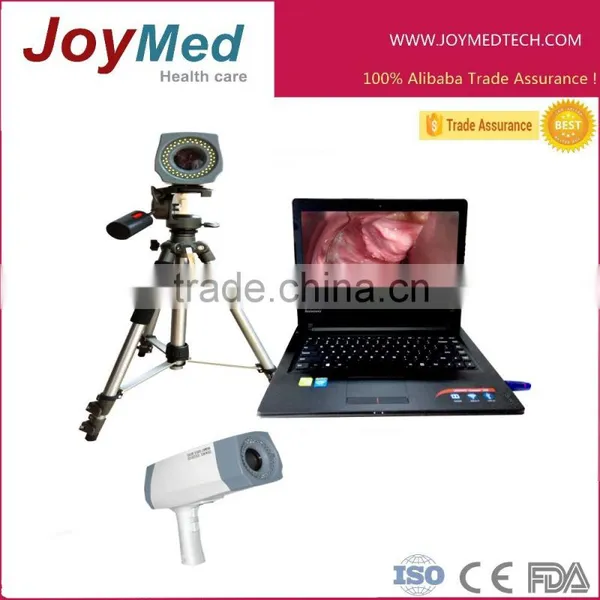

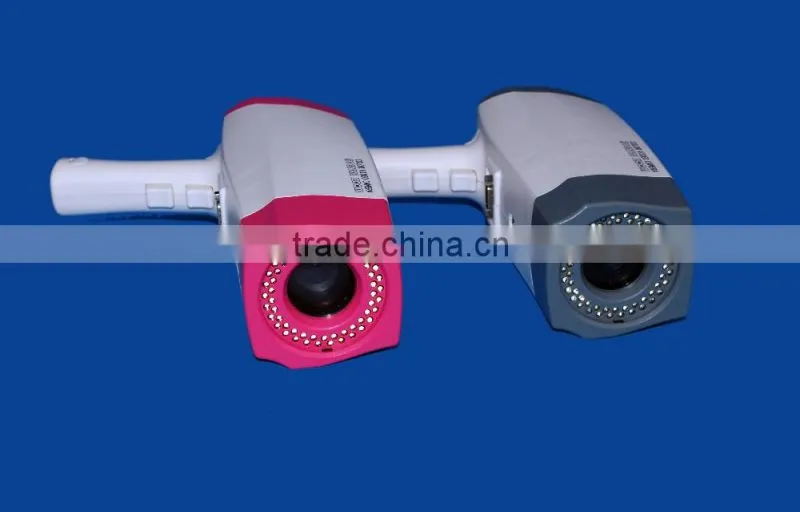

· Light Source:Multi-points ring LED,White,green light source with filter.shadowless, 100, 000 hours longevity
· Image Magnification:1-220(Optical ≥22X, Eelectronical ≥10X), image freeze, filter technique.
· AGC, AWB way internal automatically measuring light, brightness auto adjustment and electronic shock-proof function, dynamic balance of focusing around
· Quick focus CCD technique makes the clinical examination, observing, operating more conveniently
· Image Card: Supper-speed Video capture card,Support PAL,NTSC,S_VIDEO.
Colposcope Software :
WINDOWS operating system, static, dynamic image continual capturing and replaying, many images in one screen; easy for measuring, calculating, copying, editing freely, printing multi-format report, including the diagnosis database, offering the case analysis of reference
· Image flare subtractive radiography, shows subcutaneous vessels form more clearly, identify extremely tiny detail more easily, special effect of observing the cervix, genital blood
· Continuous capturing static images function, and it can browse the dynamic dozens of image
· Capacity of cine loop and record continuously for different frequencies dynamic image in sampling
· Image database can be edited at any time, and dynamic review dozens of images
· Tens of image enhanced functions to improve the checking rate of micro-focus
· Capacity of internet report, and transmit the data through the internet to make a long-distance consultation and share information.

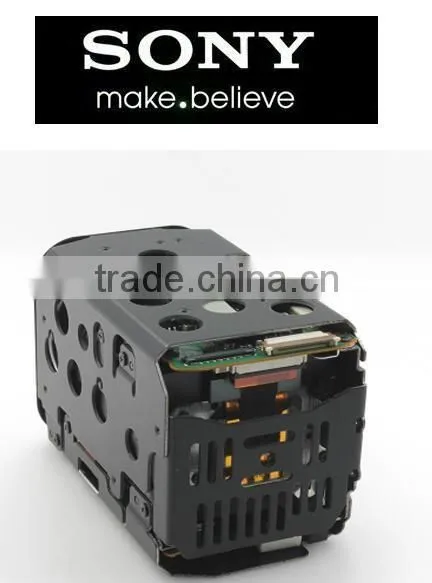

FOR 2000000 Pixels Colposcope,Camera is Sony FCBEH4300
- FCBEH4300 SPECIFICATIONS:
Camera Specifications: - Image Device: 1/3 type Exmore™ CMOS
- Effective Pixels: Approx. 2 mega pixels
- Digital Zoom: 10x digital zoom (200x with optical zoom)
- Horizontal Viewing Angle: 54.1° (wide end) to 2.9° (tele end)
- Minimum Object Distance: 10 mm (wide) ~ 1,000 mm (tele)
- Sync System: Iinternal
- Electronic Shutter: 1/2 to 1/10,000 s, 21 steps
- White Balance: Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
- Gain: Auto / Manual / Max. Gain Limit (-3 to 28 dB, 2 dB steps)
- Wide Dynamic Range: Auto/Manual
- Privacy Zone Masking: Spherical Privacy Zone Masking Function
- Character Generator: Title Display: 20 characters/line, max. 11 lines
- Focus System: Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
- Camera Operation / Zoom Switch: Switch (Yes) - Zoom Tele, Zoom Wide)
- Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image, Color enhancement
- Exposure Control: AE Control: Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Video Output Specifications: - Lens Value: 20x optical zoom f=4.7 mm (wide) ~ 94.0 mm (tele) F1.6 to F3.5
- S/N Ratio: More than 50 dB
- Minimum Illumination: Less than 1.7 lv (F1.6, 50 IRE)
- Video Output: HD: Digital: Y/Cb/Cr 4:2:2 EIA/CEA-861-B type via LVDS; (Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock); HD Analog: Component (Y/Pb/Pr); SD: VBS
Interfaces Specifications: - Camera Control Interface: VISCA (TTL Signal Level), Baud Rate: 96Kb/s, 19.2 Kb/s, 38.4 Kb/s Stop bit: 1/2 bit selectable
