Low Voltage BUS BAR DC CONTACTOR ZLJM-250D/SW250

Low Voltage BUS BAR DC CONTACTOR ZLJM-250D/SW250 thumbnail-1
Low Voltage BUS BAR DC CONTACTOR ZLJM-250D/SW250 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DY
Model Number:
ZLJM-250D
Contact Supplier Request Quote Chat Now
Zhejiang Dongya Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DY
Model Number ZLJM-250D
Electricity Type DC
Number of Pole 2
Phase 2
Main Circuit Rating Voltage Other, 12VDC-120VDC
Main Circuit Rating Current Other, 250A

  DC CONTACTOR ZLJM-250D



Model No.

ZLJM-250D/

Contact Arrangement

1H (SPST-NO)

Contact Material

AgCdO(12)

Contact Rating(at Resistive Load)

250 80VDC

250A 250VAC

Max. Switching Voltage

80VDC,250VAC

Max. Switching Power

62500VA

Endurance of Over Loading Current7Ie/10S

1750A/10S

Coil Rated Voltage

12,24,48,60,72,120VDC, etc.

Pick-up Voltage

(40-70) % of coil rated voltage

Drop-out Voltage

(5-30) % of coil rated voltage

Contact Pressure Drop

At most 30mv when 100A

Insulation Resistance

Min. 100MΩ at 500VDC

Dielectric Strength

(Between Insulated Electric Parts)

1000VAC 50 HZ/60 HZ (1 minute)

Operate Time

Max. 50mSec.

Release Time

Max. 50mSec.

Ambient Temper

-25oC~+60oC

The shocking of fixed point

(10-200)HZAcceleration≤3.5g

Shocking

(60-100) time/minuteAcceleration≤4g

Mechanical Life

100,000 Operations (no load)

Electrical Life

20,000 Operations (at rated load)



Outline dimension of ZLJM-250D



Low voltage BUS BAR DC CONTACTOR ZLJM-250D/SW250

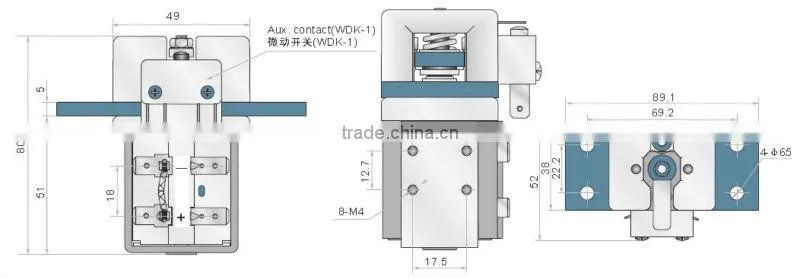

Outline dimension of ZLJM-250D.S with auxiliary contacts





Low voltage BUS BAR DC CONTACTOR ZLJM-250D/SW250
