UNS K94610 Kovar Plate 4J29 Precision Alloy

UNS K94610 Kovar Plate 4J29 Precision Alloy thumbnail-1
UNS K94610 Kovar Plate 4J29 Precision Alloy photo-1
Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Type:
Nickel Plate
Application:
Commonly used in aircraft factory
Contact Supplier Request Quote Chat Now
Shanghai Chonray Precision Alloy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Type Nickel Plate
Application Commonly used in aircraft factory
Grade Fe-Ni-Co 4J29 Kovar alloy plate, Fe-Ni-Co 4J29 Kovar alloy plate
Ni (Min) 28.5
Powder Or Not Not Powder
Model Number 4J29 Kovar alloy plate
Brand Name Chonray







Product Description

The picture of precision alloy.

 UNS K94610 kovar plate 4J29 precision alloy



4J29







Precision alloy 4J29 is a Fe-Ni-Co alloy,and it has similar liner expansion coefficient with hard borosilicate glass under the temperature of 20-450℃, with high Curie point and good low-temperature stability.4J29 has tense oxide film and can be well wetted by the glass.

It is suitable for mercury discharge instrument because it doesn’t react with mercury.

4J29 alloy is the main material of sealing parts in electric vacuum devices.







Chemistry (%)





Ni

Co

C

Fe

Mn

Si

Mo

Cr

Cu

P

S

MIN

28.5

16.8

-

-

-

-

-

-

-

-

-

MAX

29.5

17.8

0.03

Balance

0.5

0.3

0.2

0.2

0.2

0.02

0.02

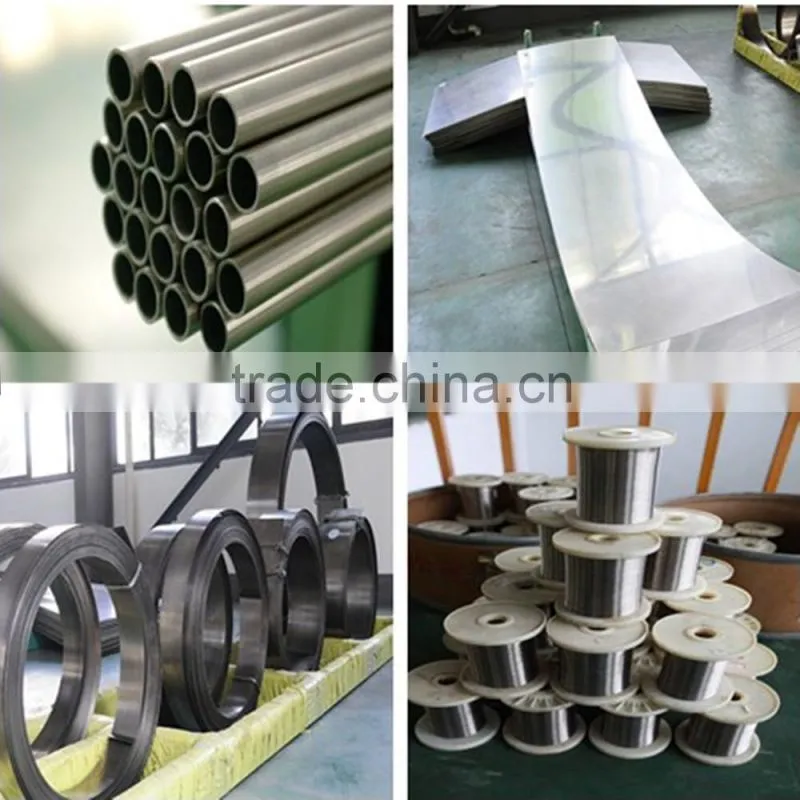

Alloy Form



4J29 wire, strip, plate, pipe and rod







Chinese Grade



4J29







Common Trade Name



Russia

USA

U.K.

Japan

France

Germany

29HK

Kovar

Nilo K

KV-1

Dilver P0

Vacon 12

29HK-B

Rodar

Techallony Glasseal 29-17

Telcaseal

KV-2

KV-3

Dilver P1

Silvar 48







Features



  • High Curie point
  • Good low-temperature stability
  • Tense oxide film, and can be well wetted by the glass
  • No reaction with mercury
  • Good corrosion resistance in air, fresh water and sea water



Applications



Commonly used in aircraft factory, main material for glass sealing in electric vacuum devices, such as glass sealing for launch tube, oscillating tube, igniting tube, magnetron, transistors, sealing plugs, relays, IC lead, chassis, housings, brackets, etc.







Physical Properties



  • Melting temperature: 1450℃
  • Specific heat capacity: 440J/(kg•℃) at 0℃
  • Resistivity:ρ=0.48μΩ·m
  • Curie point: Tc=430℃







Thermal Conductivity



θ/℃

100

200

300

400

500

λ/(W/(m·℃))

20.6

21.5

22.7

23.7

25.4







Temperature Coefficient of resistance



Temperature/℃

20~50

20~85

20~100

20~200

20~300

20~400

αR/10-3℃-1

3.7

3.7

3.9

3.9

3.7

3.3







Magnetic Properties



H/(A/m)

B/T

H/(A/m)

B/T

H/(A/m)

B/T

8

0.9×10-2

80

0.35

2000

1.47

16

2.1×10-2

160

0.81

4000

1.61

24

3.6×10-2

400

1.17





40

8.3×10-2

800

1.34







At 4000A/m, remanence Br=0.98T, coercivity Hc=68.8A/m







Mechanical Properties







Hardness of Deep Drawing Strip



State

δ/mm

             HV

Deep drawing

>2.5

≤170

≤2.5

≤165







Tensile Strength of Wire and Strip



State number

State

σb/MPa





Wire

Strip

S

Soft state

<585

<570

1/4H

1/4 hard state

585~725

520~630

1/2H

1/2 hard state

655~795

590~700

3/4H

3/4 hard state

725~860

600~770

H

Hard state

>850

>700

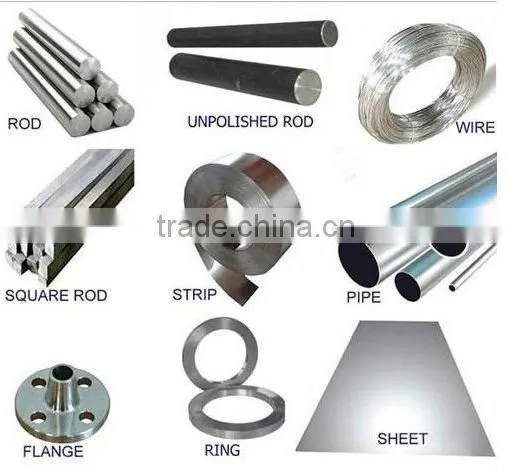

More products for you to choose.



UNS K94610 kovar plate 4J29 precision alloy

UNS K94610 kovar plate 4J29 precision alloy



Company Information



Shanghai Chonray Precision Alloy Co.,Ltd was founded in Year 2000, comprised of two major business sectors: Electric heating elements for industrial furnaces & special alloys. We have a manufacturing base in Shanghai City, specialized in electric heating elements for industrial furnaces. The other manufacturing base in Jiangsu Province is specialized in research and production of special alloys, including high resistance alloys, superalloys, corrosion resistant alloys, precision alloys, welding wires and so on. Based on 15 years experience of electric heating elements and 23 years experience of special alloys, Chonray has established long-term and strategic cooperation with many well-known companies abroad and at home.
Strictly implementing the quality management system ISO9001: 2008 and environment management system ISO14001, Chonray ensures the quality control with the solid technical force and advanced testing and analysis equipment .Our products are widely used in various fields, such as aerospace,chemical processing,medical,glass,oil and gas,power generation, and thermal process.
Guided by the philosophy of being professional, ethical and lawful ,environmental and social responsible, Chonray aims to provide best quality electric heating elements for industrial furnace and special alloys to customers worldwide. Chonray professional team is fully qualified to satisfy your sales, engineering and logistics requirements. We warmly welcome customers to visit our company.
UNS K94610 kovar plate 4J29 precision alloy

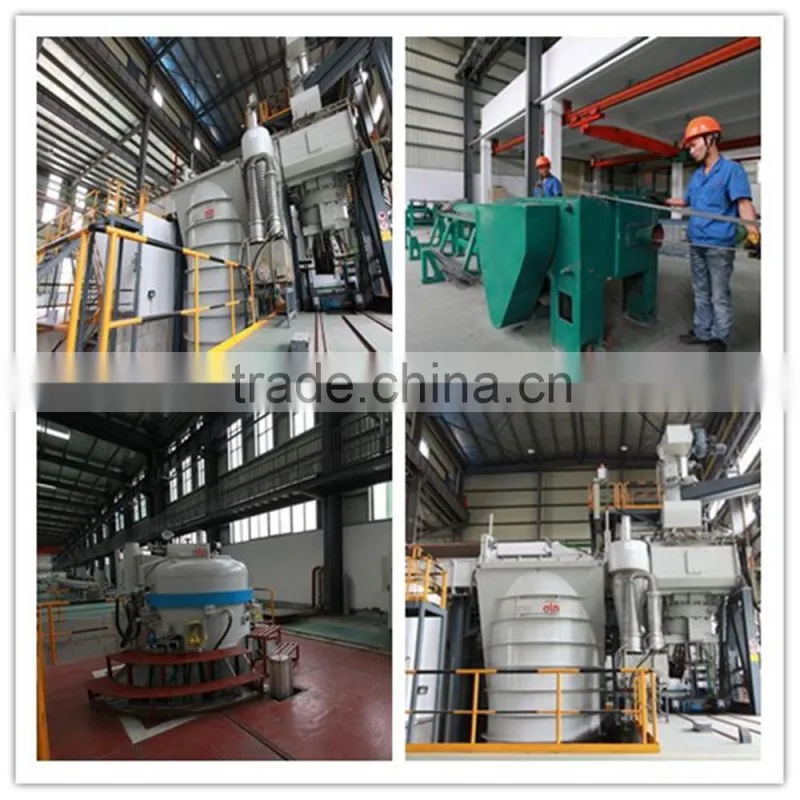

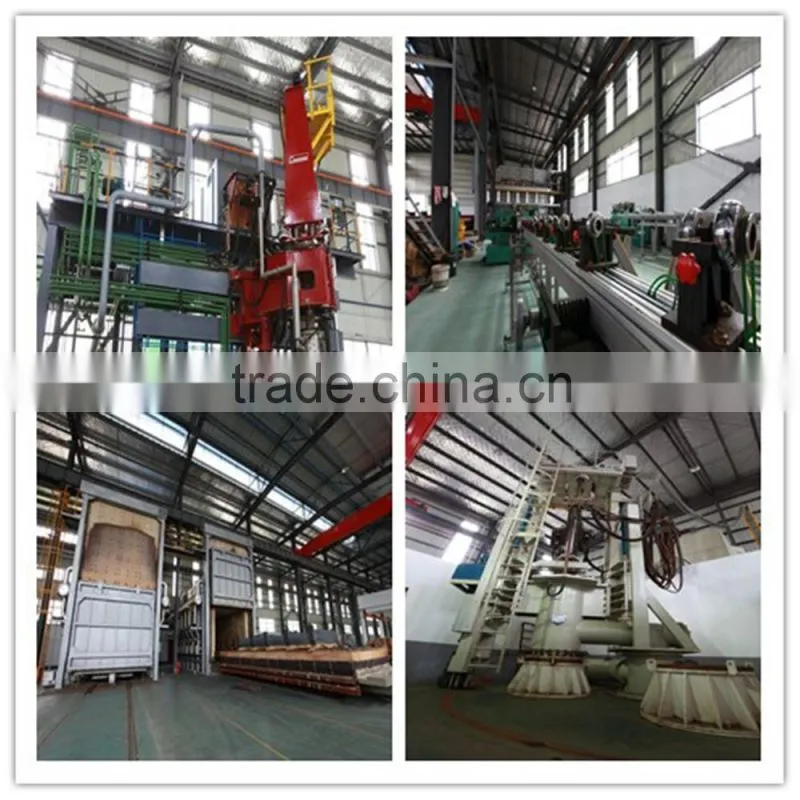

 Production line





UNS K94610 kovar plate 4J29 precision alloyUNS K94610 kovar plate 4J29 precision alloy

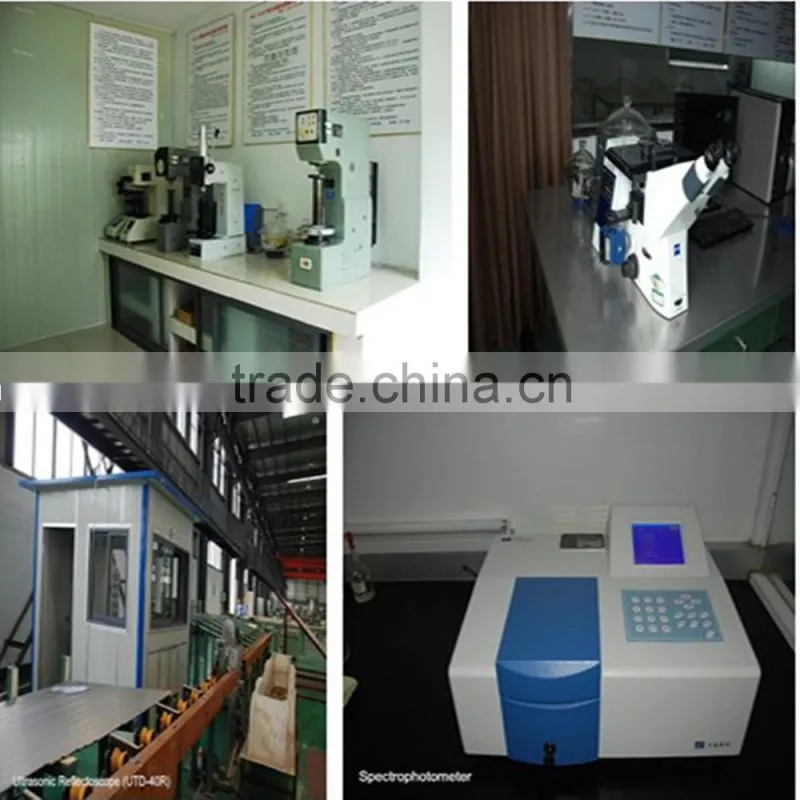

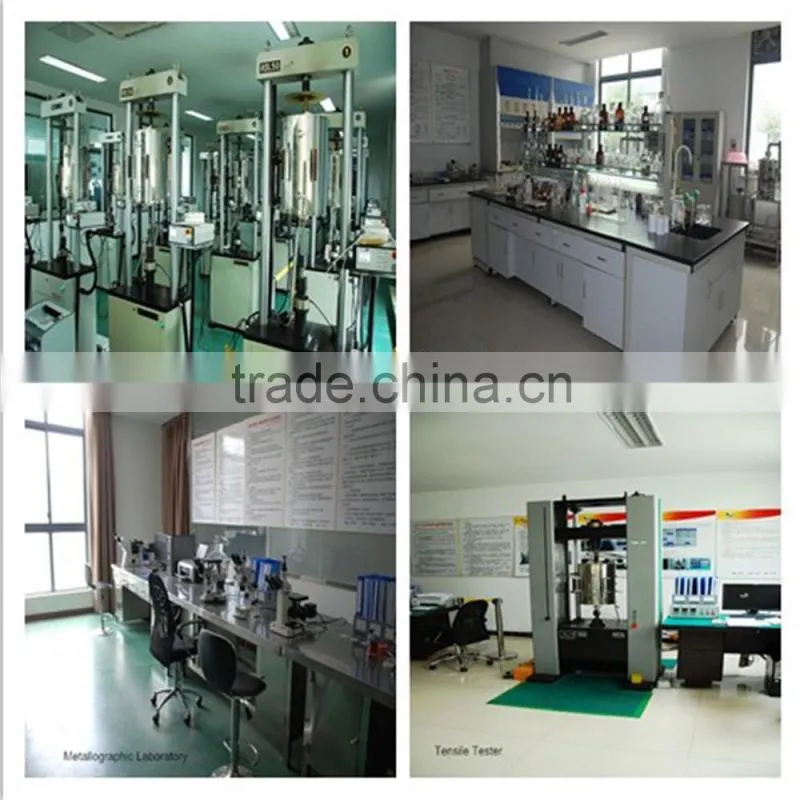

Testing Equipment

UNS K94610 kovar plate 4J29 precision alloyUNS K94610 kovar plate 4J29 precision alloy







Certification

UNS K94610 kovar plate 4J29 precision alloy

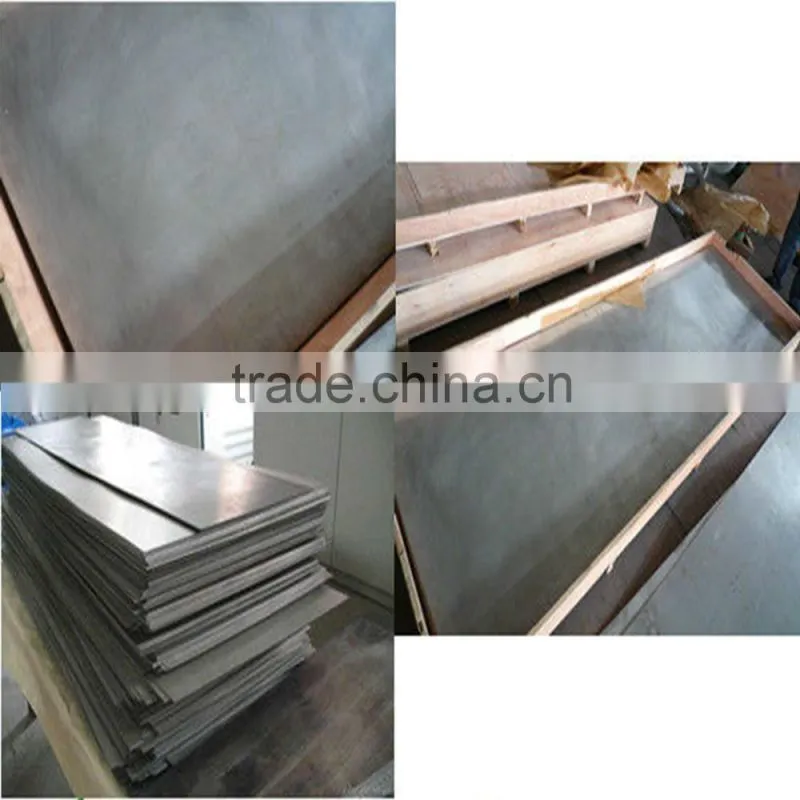

Packing picture:



UNS K94610 kovar plate 4J29 precision alloy

Our market

UNS K94610 kovar plate 4J29 precision alloy

UNS K94610 kovar plate 4J29 precision alloy



Our advantages and services





a. Our advantage







We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.







We can provide all kinds of electric heating alloy material and elements, including customized products.







We can provide a complete solution for you.







OEM service can be provided.







b. Technical services we can provide:







 Product selection







 Process optimization







 New product development

UNS K94610 kovar plate 4J29 precision alloy
