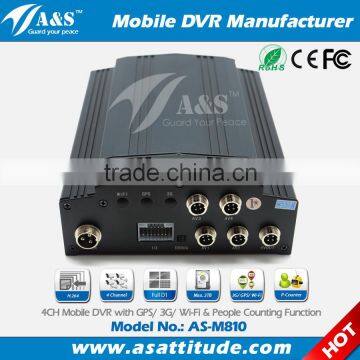

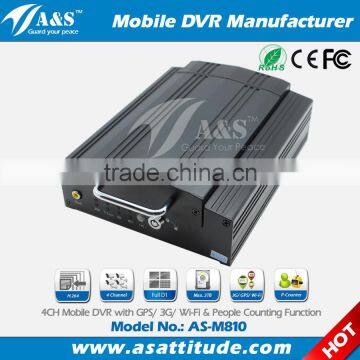

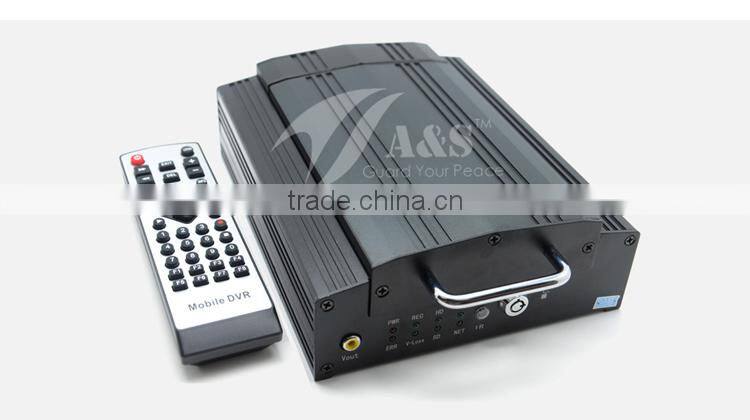

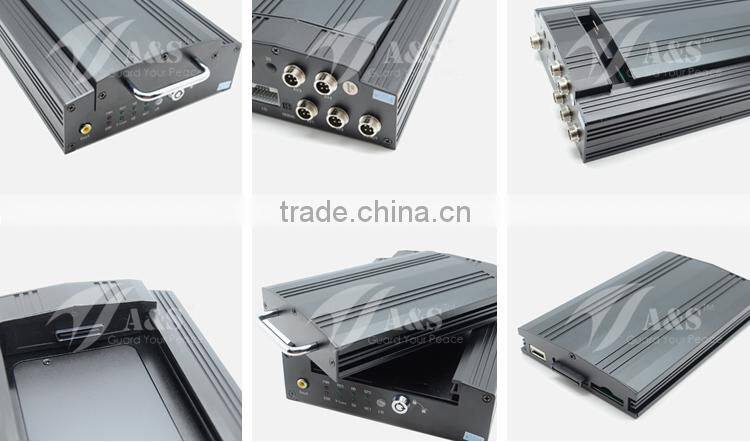

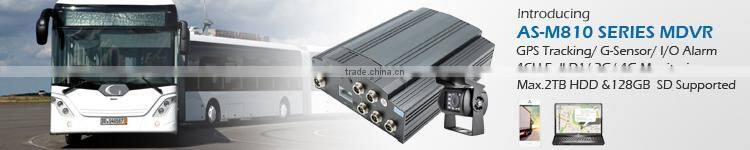

High Performance 4CH 3G Mobile DVR with optional Passanger Counting Function

Power

Voltage Input

DC8-36V

Voltage Output

DC12V (+/-0.2V, max. 2.0A)

DC5V (+/-0.2V, max. 0.5A)

System

Language

Chinese/English

OSD

Graphical User interface OSD menu

Password

Users Password/ Administrator Password

Video

Video input

4CH Video Inputs (1.0Vp-p/ 75 Ohms)

Video output

2CH Video Inputs (1.0Vp-p/ 75 Ohms)

Preview

1 CH/ 4 CH Preview.

Recording Ratio

PAL: 25 Frame/s; NTSC: 30 Frame/s

Image Compression

H.264 Main profile

Audio

Audio input

4-CH

Audio output

1-CH

Recording mode

Audio & Video sync.

Image processing

& Storage

Video Quality

D1/HD1/CIF adjustable for each channel;

Highest Video Quality: 4CH Full D1

Bit Rate

D1: 800Kbps~3Mbps,

HD1: 600Kbps~2Mbps,     CIF: 256Kbps ~ 1.5Mbps

8 levels optional.

Storage

2TB Hard Disk & 128GB SD Card (maximum)

Alarm

Alarm input

6 alarm inputs

Alarm output

1 alarm output,

Communication Port

RJ45 Interface

Yes

RS232 Interface

2-RS232 interface

Wireless

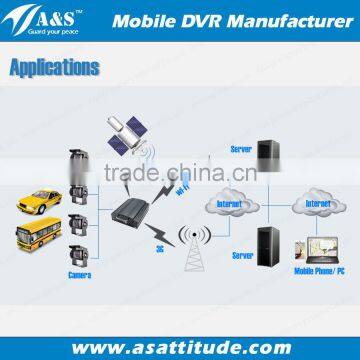

3G

Built in WCDMA/ CDMA2000 Module (Optional)

GPS

Built-in GPS module (Optional)

G-Sensor

Built-in G-Sensor

Upgrade

Support Hard Disk & SD card Upgrading

Operation Environment

Temperature

-25 degrees to +70 degrees

Humidity

10% to 95%
