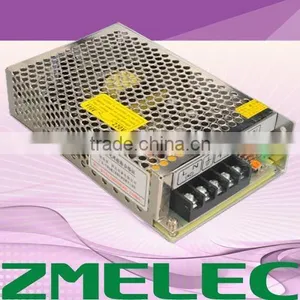

Help CenterSwitchs Power Supply(S-60W)
Related Products
Specifications
switchs powers supplyInput Voltage:85V-132V 170V-264V
Input current:2A/115V 1A/230V
Ouput:12V/15V/24V
CE approved
DC Power Supply/Switch power supply/dc regulator
Main Spec:
1.Connection place:5 poistion terminal blcok 9.5mm
2.L.N ac Input
3.-V DC output
4.+V DC output
5.Type:S-60-5 5V 0~10A
S-60-12 12V 0~4.2A
S-60-15 15V 0~3.4A
S-60-24 24V 0~2.1A
6.Efficiency: 5V/ 71% 12V/78% 15V/78% 24V/82%
7.Input ac voltage range:85V-132V 170V-264V
8.Input current:1.3A/115V 0.65A/230V
9.Frequency:47~63Hz
10.Ac Inrush Current:Cold-start current 18A/115V 36A/230V
11.Leakage Current:<1mA/240V AC
12.DC adjustable range:rated output voltage +/-10%
13.Over-load Protection:105~150% cut down output.auto-recovery
14.Over-voltage protection:115%~135%
15.Set up,Rise.Hold up time: 200ms 100ms 20ms
16.Withstand Voltage: I/P-O/P:1.5KV AC 1 minute
I/P-F/G:1.5KV AC 1 minute
O/P-F/G:0.5KV AC 1 minute
17.Working Temperature:-10~60 degree
18.Weight/Packing:0.5kg
19.Dimension(mm):159*98*38mm
