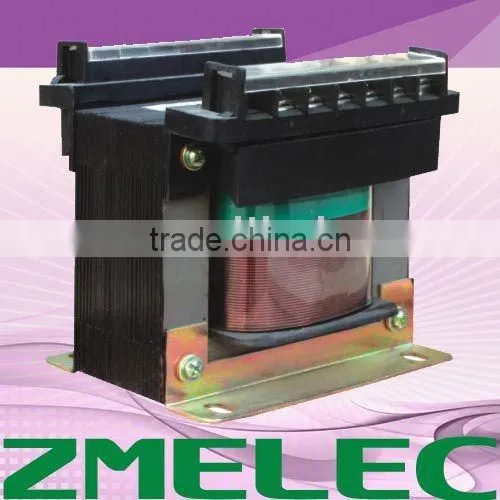

JBK3 Transformer(JBK3-100VA)

JBK3 Transformer(JBK3-100VA) thumbnail-1
JBK3 Transformer(JBK3-100VA) photo-1
US$ 2 - 10 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZMELEC or OEM
Model Number:
JBK3-100VA
Contact Supplier Request Quote Chat Now
Yueqing Zhongming Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZMELEC or OEM
Model Number JBK3-100VA
Usage Power
Phase Single
Coil Structure Other, EI
Coil Number Other, Isolation

Specifications

BK Control transformer
Full load Temperature Rise no more 85 degree
Warranty: 3 years
10 years experience.
CE Soncap appro

Application:
  JBK Series machine tool control transformer suitable for AC 50/60Hz,Output rated voltage no more 220V input rated voltage no more 660V circuit.,As various types of machine tools, machinery and equipment, the control of the general electric power supply, local lighting, work lighting, signal power and light power.
Structure Character:
  This series transformer is the other control transformer replacement products, using imported materials and advanced technology of manufacturing, with reliable operation, low power consumption, small size, connection security, broadly applicable and so on.
Model Means:
JBKX-Z
  JB: Machine Tool Transformer
   K: Control
  X: Design serial number(1,2,3,4)
  Z: Rated Capacity
Working Enviconment
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient  air  temperature is +40°C, the relative humidity should  not  exceed 50%, and  it allows  higher relative humidity under lower temperature. Max average humidity in the  dampest month is 90%,  meanwhile  the lowest  average  temperature  of  this  month is  + 25°C,  and  condensation  on  the  product  surface  caused  bytemperature change should be taken into consideration.
JBK5 Outline and Install dimension

Type
Outline dimension(mm)
Installation dimension(mm)
Installation
hole(mm)
Bmax
Dmax
Emax
A
C
JBK5-40,63
78
72
90
56±0.15
46±0.15
4.6
JBK5-100
85
75
96
64±0.15
62±0.15
4.6
JBK5-160
96
92
105
84±0.175
73.5±0.15
5.5
JBK5-250
96
100
104
84±0.175
85±0.175
5.8
JBK5-400
120
100
122
90±0.175
85±0.175
5.8
JBK5-630
150
110
140
122±0.2
90±0.175
7
JBK5-1000
150
190
142
105±0.2
155±0.2
9
JBK5-1600
170
225
153
140±0.2
176±0.2
7
JBK5-2000
168
138
155
116±0.2
138±0.2
9
JBK5-2500
194
160
165
172±0.2
195±0.23
7
