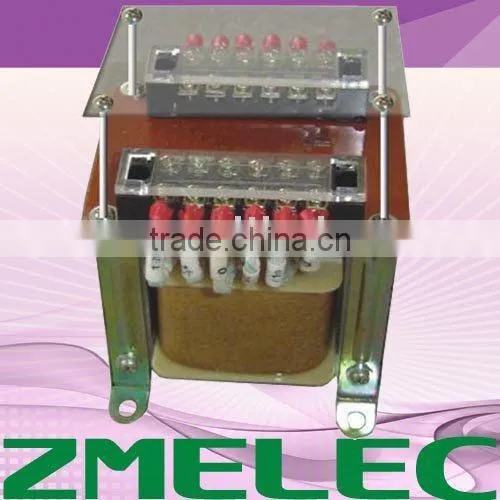

Isolation Transformer(BK-100VA)

Isolation Transformer(BK-100VA) thumbnail-1
Isolation Transformer(BK-100VA) photo-1
US$ 2 - 15 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZMELEC or OEM
Model Number:
BK-100VA
Contact Supplier Request Quote Chat Now
Yueqing Zhongming Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZMELEC or OEM
Model Number BK-100VA
Usage Power
Phase Single
Coil Structure Other, EI
Coil Number Other, Isolation

Specifications

BK Isolation transformer
Full load Temperature Rise no more 85 degree
Warranty: 3 years
10 years experience.
CE Soncap ap

Application:
  BK(DK) Series control transformer(Hereafter call transformer) is suitable for circuit of 50~60Hz, voltage up to 500V, usually applied as power supply for machine tool electrical appliances, locallightings and indicator lamps power supply.
Structure Character:
  According  to different structures,  BK  transformer belongs to shell type,  and according to the installation mode, it belongs to vertical type.
Model Means:
  BK-x                                     DK-x
  B:Transformer                    D: Single Phase
  K: Control                          K: Control
  x: Rated Capacity               x: Rated Capacity
Working Enviconment:
1.Ambient air temperature: -5 degree ~+45 degree , the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient  air  temperature is +40°C, the relative humidity should  not  exceed 50%, and  it allows  higher relative humidity under lower temperature. Max average humidity in the  dampest month is 90%,  meanwhile  the lowest  average  temperature  of  this  month is  + 25°C,  and  condensation  on  the  product  surface  caused  bytemperature change should be taken into consideration.
Outline and Install dimension
type
Outline dimension(mm)
Hole distance for installation(mm)
Installation
hole(mm)
K × J
Bmax
Dmax
Emax
A
C
BK-50
78
66
90
56±0.4
50±3
5 × 12
BK-100
84
78
93
56±0.4
62±2.5
6 × 12
BK-150
102
88
110
83±0.4
70±2.5
6 × 12
BK-250
102
95
110
83±0.4
76±3
9 × 11.5
BK-300
120
127
135
100±0.4
90±3
9 × 11.5
BK-400
146
130
160
123±0.4
90±3
9 × 11.5
BK-500
146
145
160
123±0.4
105±3
9 × 11.5
BK-700
146
155
160
123±0.4
115±3.5
9 × 11.5
BK-1000
150
165
160
123±0.4
125±3.5
9 × 11.5
BK-1500
171
200
190
145±0.4
135±3.5
9 × 11.5
BK-2000
180
230
210
145±0.4
160±3.5
9 × 11.5
