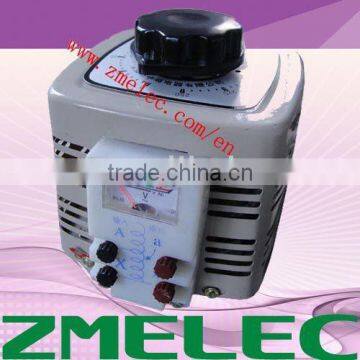

Variable Voltage Regulator

FOB Price

US$ 10 - 20 / Piece

50 Pieces(Min. Order)

Port Ningbo or Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ZMELEC or OEM
Model Number	TDGC2-0.5kVA	Usage	Other, TDGC2
Phase	Single Phase	Current Type	AC

Product Description

Specifications

Single Phase Variable Voltage Regulator
Input:220V
Output Adjustable:0-250V or 0-300V specially technical need remind make ord

TDGC2,TSGC2 Series of Contacts Regulator

Feautre:

TDGC2,TSGC2 is series energy-saving voltage regulator are made of imported silicon steel,it can successively adjust the output voltage(single-phase 0~250V,three-phase(0~430V),with the features of no waveform distortion,small volume,light weight,high efficiency,convenient use,reliable performance and so on

Main Technical Data:

Phase no.: Single-phase, three-Phase

Input voltage: Single-phase 220V, three-phase 380V
Output voltage : Single-phase 0~250V, three- phase 0~430V
Frequency: 50Hz

Model means

TDGC2,TSGC2

T: Regulator

D: Single phase

S: Three phase

D: dry self-cooled

C: Contact

2: Economic design serial number. according to china standard since 1982 after unified national design

Application:

This kind regulator can be applied in industry,scientific experiment,public facilities and domestic appliances to achieve the goal of voltage regulating,temperature controlling,light regulating,power controlling and so on.

Detail Specification:

Model	Rating Power (kVA)	Phase No.	Frequency (Hz)	Input volt. (V)	Output volt (V)	Output current(A)
TDGC2-0.2	0.2	1	50	220	0~250	0.8
TDGC2-0.5	0.5	1	50	220	0~250	2
TDGC2-1	1	1	50	220	0~250	4
TDGC2-2	2	1	50	220	0~250	8
TDGC2-3	3	1	50	220	0~250	12
TDGC2-5	5	1	50	220	0~250	20
TDGC2-10	10	1	50	220	0~250	40
TDGC2-15	15	1	50	220	0~250	60
TSGC2-3	3	3	50	380	0~430	4
TSGC2-6	6	3	50	380	0~430	8
TSGC2-9	9	3	50	380	0~430	12
TSGC2-15	15	3	50	380	0~430	20
TSGC2-30	30	3	50	380	0~430	40

Note: Regulator insulation grade is B grade, carbon brush contact point restrict no more 90 degree.(use semiconductor thermometer method measure)
