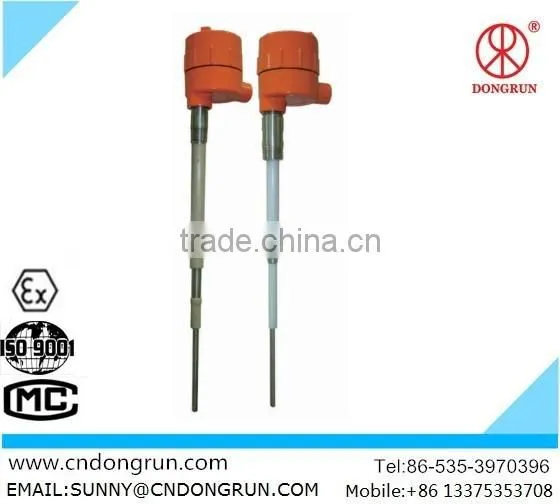

DRFK-98 RF Admittance Level Switch
Introduction
DRFK-98 RF admittance level switch is universal point control meter. he meter consists of a electronic unit, a explosion-proof shell and hard or flexible probe elements. Auxiliary in-phase driven probe should be added through the sensor, which solves the problem of material adhesion.It is stable and reliable, good versatility , no need maintenance. It is not affected by the density of the materials, the size of the particles, the chemical elements, the electrical conductivity, high temperature and high pressure, which can be widely used in the process control of the liquid level or material level of the liquid, solid, slurry and interface.
Product Application
Application industry: metallurgy electric power, chemical and petrochemical, water and sewage treatment, pulp and paper, food and pharmaceutical industries.
Measuring medium:
1.Liquid: fuel, solvent, acid, alkali, liquefied petroleum gas, water, etc.;
2.mixture: sewage, liquid waste, pesticides, solution, industrial products;
3.interface: the oil-water interface, alcohol / acid interface;
4.Foam: Latex foam, beer foam, soap bubble, etc.;
5.slurry: sludge, pulp, crude oil / bitumen, paint / grease, etc.;
6.powder: pulverized coal, fly ash, cement, lime, mineral powder, flour, etc.;
7.particles: plastic, alumina, fertilizers, drugs, and grains.
8.block material: crushing coal, lime, coke, ore.
PRODUCT DISPLAY
Performance Parameter
Relay Capacity |
DPDT, rated 10A, 115VA.C or 5A 220VA.C |
Medium Temperature |
-184 ℃ ~ 200 ℃ (When it is higher than 200°C,the high-temperature ceramic probe is available.) |
Delay |
0 to 30 seconds continuously adjustable |
Circuit temperature |
-40 ℃ ~ 80 ℃ |
Sensitivity |
0.5pF ~ 800pF |
Power Failure Protection |
high and low mode, adjustable on site |
Power Supply |
220VA C or 24VDC or 110VAC |
Power |
3W |
Enclosure |
IP65, cast aluminum flameproof enclosure |
Electrical Interface |
3/4 "NPT |
Probe material |
insulation layer |
PTFE / PFA / PPS / high temperature ceramic, metal layer |
304/316 stainless steel |
Connecting thread |
1 "NPT (PTFE), 3/4" NPT (PPS), flange (≥ DN20) connection or user-specified |
Explosion-Proof |
d Ⅱ BT4 |
PROBE EXTERNAL DIMENSION
1) Standard probe Level Switch (It can be used in various occasions.)
2) Special short probe Level Switch(It is suitable for a variety of applications or used as blocking coal switch.)
3) Flexible probe (It can be used as a coal handling switch)
is generally longer than 2 meters and must be mounted vertically.
4) Tablet probe (It solves the shock of large material to stick probe.)
