China made PHS-8B ground water PH meter/ Aanalyzer /tester/transmitter/sensor
Introduction
PHS8B intelligent industrial PH transmitter is the intelligent industrial online analytical instrument. It can be connected to the high-impedance analog signal pH ORP electrode of many companies at home and abroad. It can be used to detect the pH, ORP value of the solution in chemical, petroleum, rubber, paper, tobacco, alcohol, sugar, food, mining, smelting, iron and steel, power generation, pharmaceuticals, water treatment and other industries.
Technical Parameter
Measurement range | pH 0~14 ORP-1999~+1999mV |
Instrument stability | ±0.05pH(±2mV)/48 hour |
Measurement error | ±0.05pH(±2mV) |
Instrument resolution | ±0.01pH(1mV) |
Input impedance | >3×1012Ω |
Output signal | 4~20mA.DC or RS485(MODBUS) |
Input signal | high impedance millivolt signal |
Output load resistance | 4~20mA.DC, 0~500Ω |
Alarm setting range | 0~14pH( can be set) |
Alarm setting hysteresis width | full scale hysteresis setting |
Alarm output contact capacity | 250VDC, 3A |
Temperature measurement range | -10~150°C |
Operating ambient temperature | -10~55°C |
Power supply | 220V. AC ±10%, 50Hz, 15W |
Temperature compensating range | -10~100°C |
Temperature compensating error | <0.005PH/°C |
Protection grade | IP65 |
Dimension | 210(width)×185(height)×105(thickness) |
Feature
1.16 bit high accuracy AD and low power microprocessor technology.
2.Multi-level password protection, reliable and safe measurement data.
3.Automatically identify and calibrate the PH standard solution. Automatic temperature compensation
4.Highresolution graphic LCD which can display the PH (mV) value, temperature, date, electrode slope, zero position, output current, etc. simultaneously.
5.Two analog (pH/mV and temperature) isolated output and digital signal output (RS485/ standard MODBUS protocol) can be chosen.
6.4-way alarm relay and 1-way cleaning control relay output
7.Isolated power supply is adopted to measure and output. Strong anti-interference ability.
8.Intelligent paperless record and poweroff protection can record and inquire the operation of a month~a year and set data.

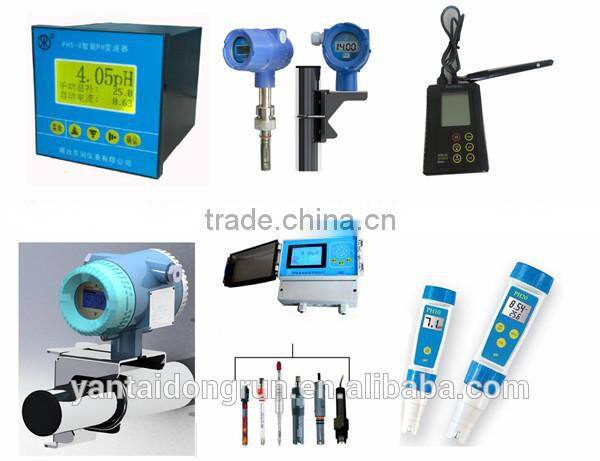

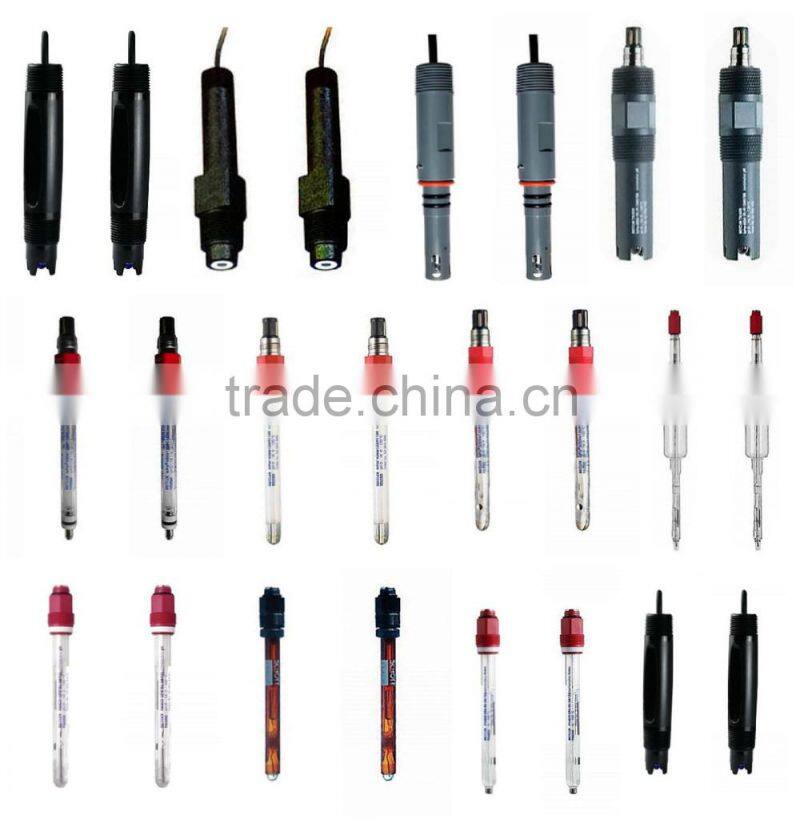

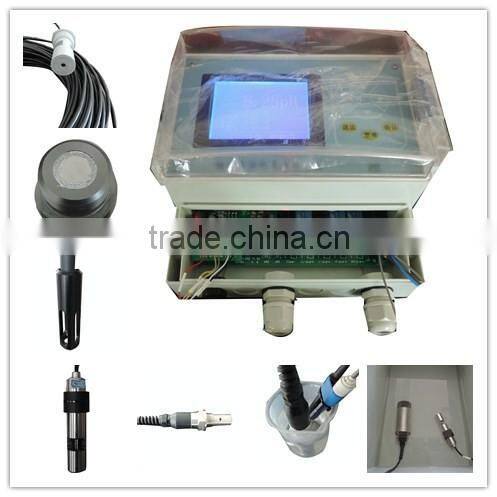

PRODUCE DISPLAY

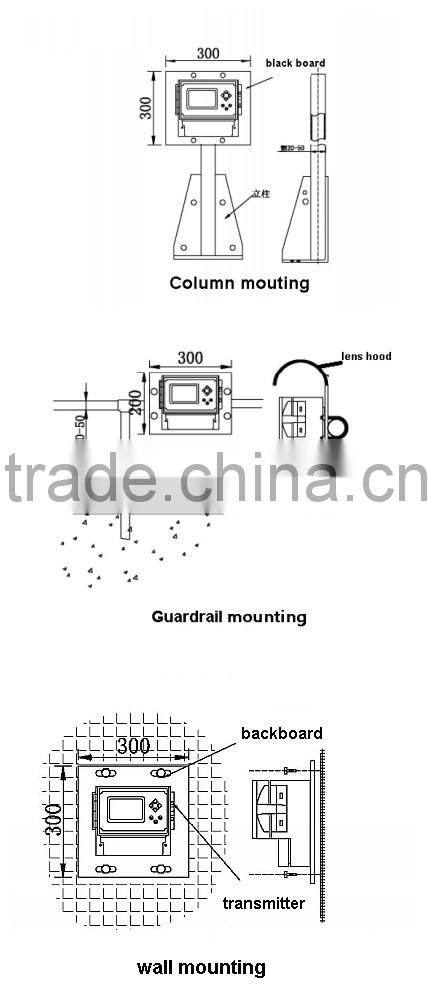

INSTALLATION
PACKAGE&TRANSPORT
Yantai dongrun Instrument Co., Ltd. founded in 1998. It specializes in manufacturing online water quality analysis equipment, level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperates with Chinese Academy of Sciences and builds up a water analysis laboratory, mainly producing TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification. Our professional R & D team can provide technical supports to satisfy customer demand and our unique technologies can meet different working conditions.
