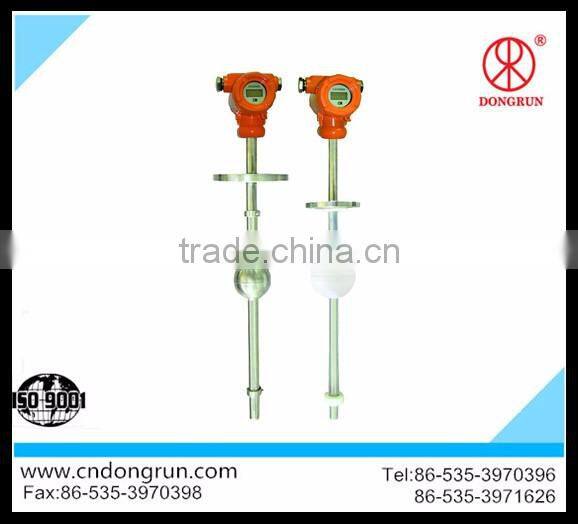

fuel level sensor RS485 2016 HOT SALE DRCM-99 magnetostrictive fuel level sensor
Product Introduction
Series DRCM-99 Magnetostrictive Liquid Level Gauge adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications.It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.
Feature
Simple structure, easy for installation .
No signal drift
No need for periodic calibration or maintenance.
High accuracy, no wearing parts and reliable and durable.
Multiple choices of signal output mode
Flexible cable types apply for the large range
Technical Parameter
Measurement output | Standard type:2-wire4-20mA(HART protocol can be selected.) Digital type:ModBus, Profibus, multi-parameter( level, interface, temperature ( up to 5 points) |
Liquid level measurement
| Liquid level, interface, liquid level+ interface |
Measurement range | 0. 50m to22m |
Accuracy | The maximum between 0. 01 %F. S. and +0. 5mm |
Temperature output | Up to 5 single points temperature |
Temperature range | -50 ~ +200C |
Temperature accuracy | ± 0. 25 C |
Power Supply | 18-36VDC |
Output signal | 4-20mA ,ModBus, Profibus |
Explosion-proof | ExiaIICT6 |
Ambient humidity | 0-100% R.H.(not frost) |
Working temperature | Electronic unit:-4 0 ~ +80 C, waveguide:-40 ~ +125 C |
Operating pressure | Rely on the pressure the float can withstand |
Electronic Cabin | Cast aluminum/304 stainless steel |
Probe material | 304/316L /304+PTFE or FEP |
Process connection | Thread or flange connection |
Electrical interface | 1/2” NPT thread |

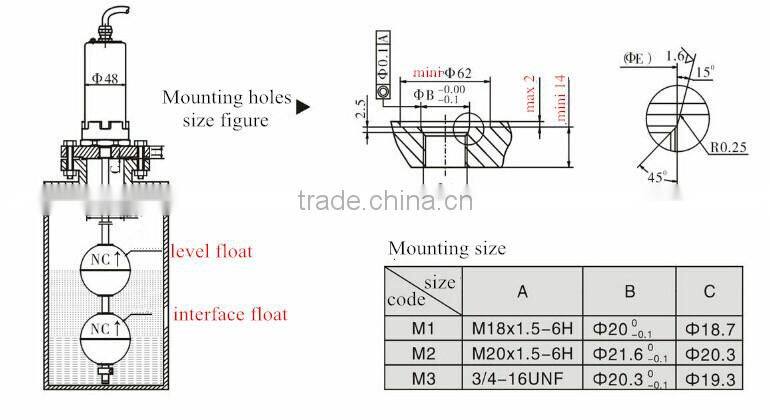

Mounting drawing of magnetostrictive fuel level sensor

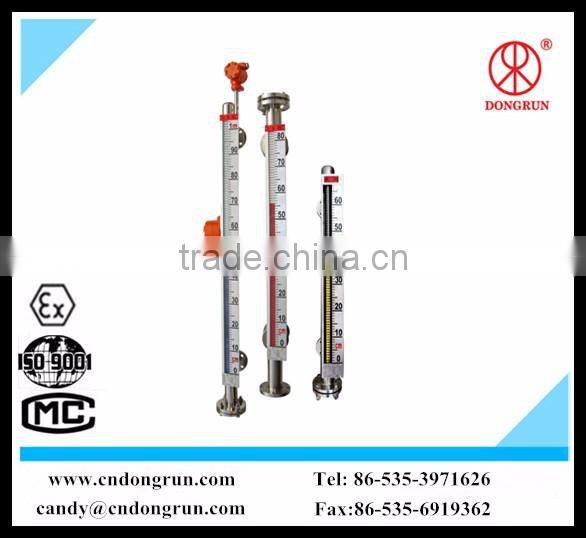

Other Hot Sale Products( Pls Click The Photo)

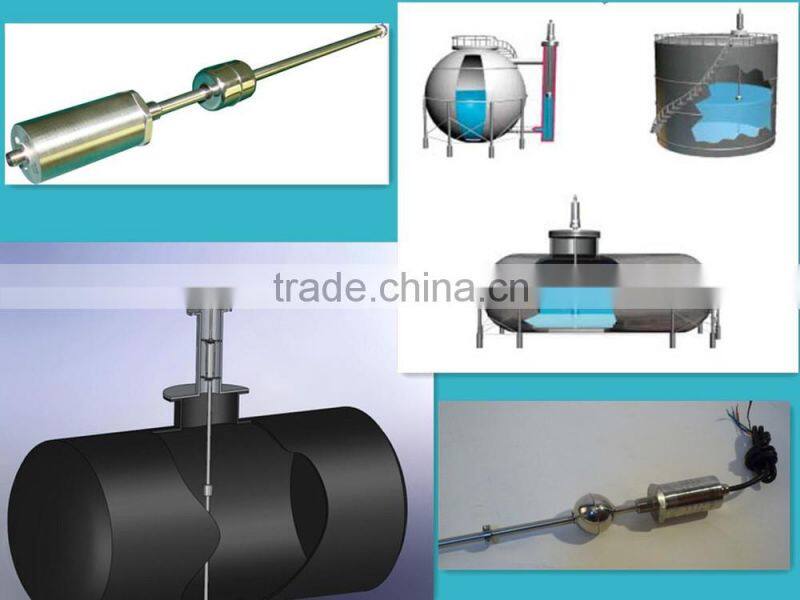

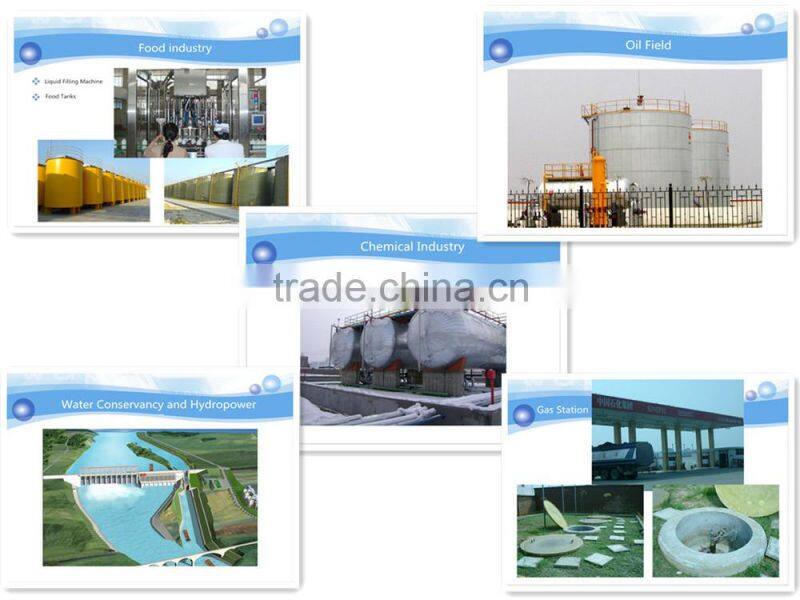

Application range of magnetostrictive fuel level sensor
Factory and trading show
Package and shipping
Company Introduction
Yantai dongrun Instrument Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
we are manufacturer in china for online water analyzer and level transmitter, pressure transmitter , level sensor since 1998, our product have been exported to
Iran, india, Australia, Philippines , Indonesia , Malaysia, Italy , Chile, Hungary , Brazil, Colombia, South Africa, Canada , Ireland, New Zealand, Russia , Belarus, Israel, etc. have good quality and competitive price.
