water cooler fan

Specifications

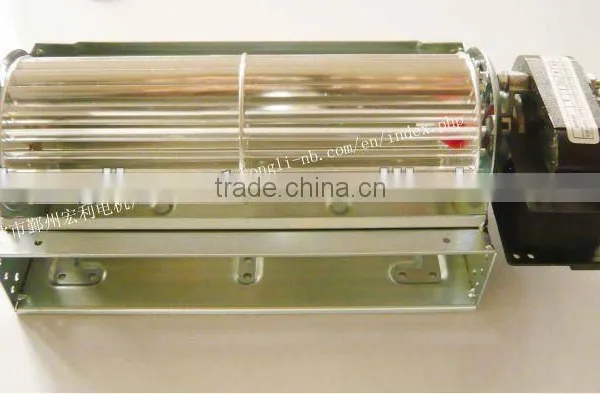

Tangential fan used in cooling systerms,like air conditioner

Model:cross flow blower

Instruction

protection class:IP42/IP44

Insulation class:B

Environment temperature:≤60^oC



Application: This blower are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Characteristic:large and stable air flow,low noise, long life,and widely used.



Specification

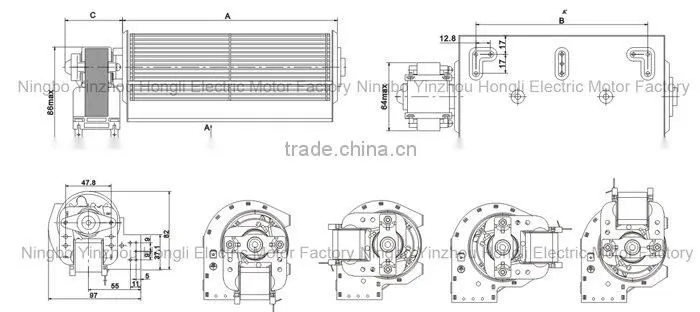

Model	Power	Voltage	Frequency	Current	Speed	A	B	C	Static pressure	Max. air flow	Noise
VT90E	23W	110V	60Hz	0.15A	2550RPM	102	64		6.2mmAq	1.9 m3/min	43 dBA
VT90D	23W	220V	50Hz	0.30A	2400RPM
VT120E	30W	110V	60Hz	0.40A	2350RPM	132	94		6.0mmAq	3.0 m3/min	43dBA
VT120D	30W	220V	50Hz	0.20A	2100RPM
VT180E	30W	110V	60Hz	0.40A	2000RPM	192	154	46	6.0mmAq	3.0 m3/min	48dBA
VT180D	30W	220V	50Hz	0.20A	1900RPM
VT240E	33W	110V	60Hz	0.50A	2000RPM	252	214	56	5.2mmAq	3.3 m3/min	47dBA
VT240D	33W	220V	50Hz	0.25A	1900RPM
VT300E	45W	110V	60Hz	0.70A	2000RPM	312	274	61	5.4mmAq	4.7 m3/min	46dBA
VT300D	45W	220V	50Hz	0.35A	1900RPM
