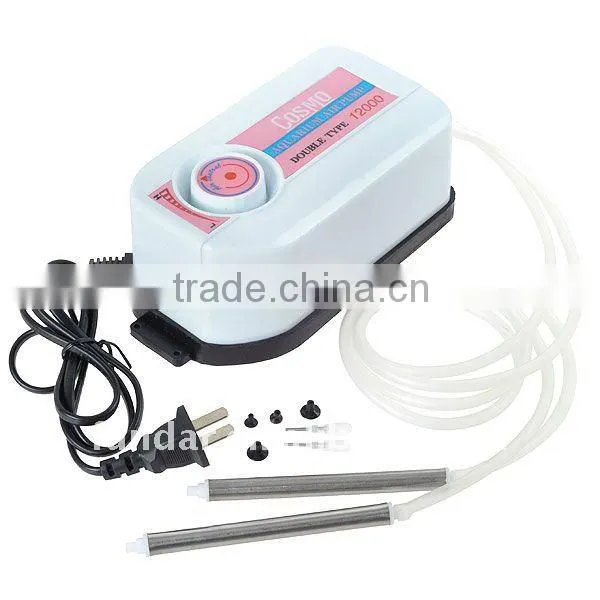

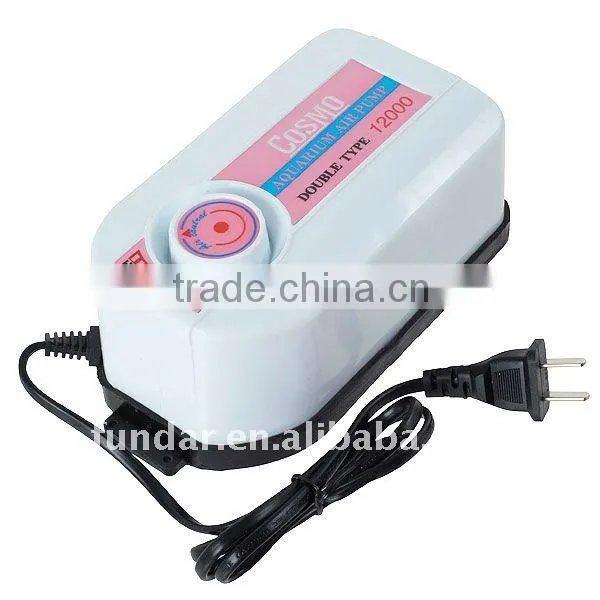

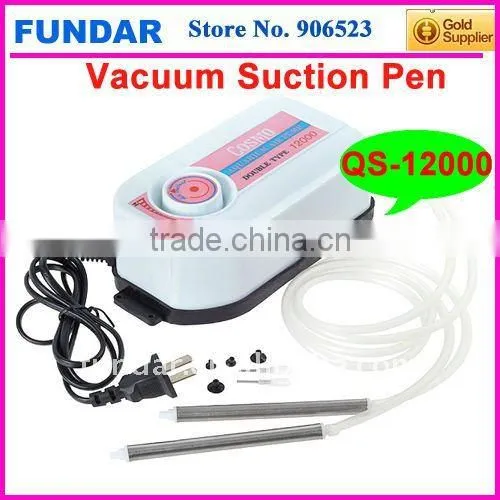

Double Air Vacuum Pick Up Pen QS-12000 for Small IC SMD Pick and Place Vacuum Pick Up Station

Box

Specifications

1. QS-12000 Double Air Vacuum Pick Up Station
2. Vacuum Suction Pen
3. Power is 8W
4. For small IC pick place
5. absorb 50g

Double type air vacuum pump QS-12000 IC SMD pick up pen Vacuum Pick Up Station



Features:

Here are the features of the QS-12000 vacuum suction pen:



1. This QS-12000 vacuum suction pen is a great placement machine can absorb 50 grams of the CPU, BGAIC, circuit board.

This QS-12000 vacuum suction pen is not only the chip-level maintenance tools ,motherboard repair tools  but also the anti-static cleaning tool.

This QS-12000 vacuum suction pen is a manual an important tool for surface mount technology, it is mainly artificial patch patch pen mouth, through the QS-12000 vacuum suction pen self-generated air pressure difference (reverse vacuum), the chip components from direct suction from the strip, and then manually placed in the corresponding components PADS bit, through the suction pressure has been adjusted, artificial patch pen sorptivity than solder paste (SMT adhesive) and adhesion, components automatically placed on the corresponding PADS.

2. The QS-12000 vacuum suction pen can be adjusted by adjusting the size of the switch to accommodate the weight of the components of different sizes.

3. This QS-12000 vacuum suction pen is more stable than the traditional forceps and efficient. The QS-12000 vacuum suction pen can directly adsorbed components' back , avoiding forceps element the device edge. damage to the pad bit, to avoid solder balling, and even the phenomenon of welding and soldering bridges.



4. It can take disk type resistance,easy to operate, convenient and practical.Greatly improve the producing efficient in welding the chip.The air power is 8W,can take IC and big components.

It can use of a 220V power supply, and comes with the air vacuum generators



5. This QS-12000 vacuum suction pen can pick up such a heavy CPU IC, there BGA chips, circuit boards and various IC, resistors, capacitors.

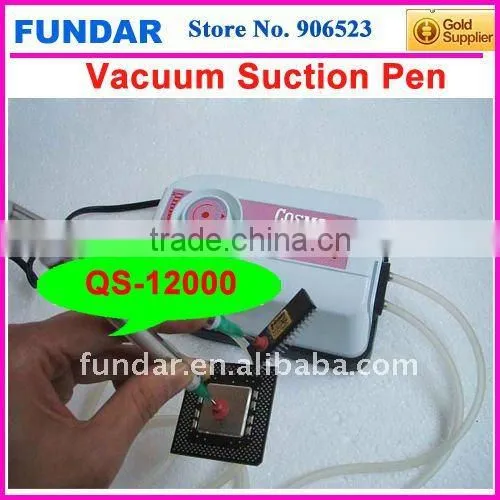

6. Here is a picture of QS-12000 for your reference:
