Home > Lights & Lighting > LED Interior Lighting > LED Grille Light > Built-in Air Slot Lamp Panel 3*14W,3*18/20W

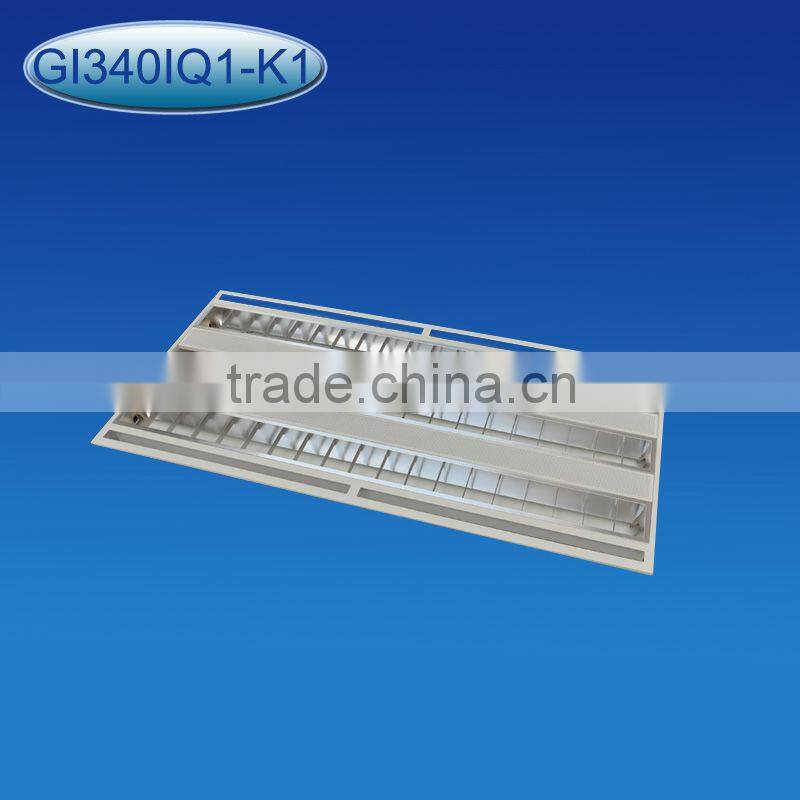

Built-in Air Slot Lamp Panel 3*14W,3*18/20W

Built-in Air Slot Lamp Panel 3*14W,3*18/20W thumbnail-1
Built-in Air Slot Lamp Panel 3*14W,3*18/20W photo-1
US$ 20 - 25 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ROMAN
Model Number:
GI320IQ1-K1
Contact Supplier Request Quote Chat Now
Foshan Shunde Roman Electrical Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Rongqi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ROMAN
Model Number GI320IQ1-K1
Light Source Fluorescent
Install Style Embeded
Reflector Mirror
Ballast Other, Electromagnetic, electronic ballast or magnetic ballast
Grid Shape I
Voltage Other, 220v, 110V/60Hz,220V/50Hz,80-277V

Specifications

Built-in air slot lamp panel for T5 14W or T8/T10 18/20W tubes
0.4mm-0.60mm steel, power painting,
0.3mm chinese alunium
CE

Built-in Air-Slot Lamp Panel:

air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel

Model And Specifications:

  1. Model and spec:GI314IQ1-K1-T5:3*41W;

                                       GI317IQ1-K1:3*17W, GI340IQ1-K1: 3*18/20W;

                                       GI314IQ1-K1-T5-LED: T5 LED lamps;

                                       GI320IQ1-K1-LED: T8/T10 LED lamps

  1. Voltage: 80-120V/60Hz,180-230V/50Hz,80-270V/50/60Hz.

Material Feature:

  1. Housing: 0.40-0.60mm cold-roll steel with electrostatic powder coated finish;
  2. Louver: high purifier 0.30-0.35mm Chinese aluminum with 86% reflection, or 0.4mm Germany aluminum with 96% reflection;
  3. Lamp holder: ABS or PC anti-fire, CE,VDE, or UL certificated;
  4. Wire: pure copper wire, 0.5-0.8mm2, CE,VDE or UL certificated;

 Design Feature:

  1. The air-conditioning lamp tray integrate the project luminaire, commercial luminaire and air outlet, facilitating the installation exercise, saving project cost, and playing a decorative landscaping work;
  2. The Inclined bottom design, can be matched with a variety of different structure of ceiling keel.
  3. The air stream line design ensure the enough air-conditioning wind out, and the adjustable grill can be change the wind blowing way;
  4. Double cambered grille and the arc-shaped side plate, the lamp body fluid lines;
  5. The wider bat wing light distribution, double arc grille has decomposition glare, higher diffusion rate
  6. Design of optical professional distribution, ensure the light distribution curve is more scientific and reasonable, avoiding glare, and result more even and soft light

Available Light Source:

  1. Traditional T5 lamp 28W or 54W (the tube length without pins are 549mm) ;
  2. Traditional T8 lamp 32/36W (the tube length without pins are 588-590mm);
  3. Traditional T10 lamp 40W (the tube length without pins are 588-590mm);
  4. T5 type LED lamp 6-10W (the tube length without pins are 549mm) ;
  5. T8/T10 type LED lamp 15-20W (the tube length without pins are 588-590mm);

Control Gears:

  1. built-in pure copper wire magnetic ballast, collocated starter, rapid start, noiseless, more than five years life span;
  2. built-in high quality electronic ballast, ≥0.90PF, collocated EMC and protection system, extending the using life, more than three years;

Installation Attention:

  1. The available surface frame: 600*600MM,595*595MM, 598*598MM,625*625MM;
  2. Installation: recessed, embedded, inlaid;
  3. Hole size of installation: (575-1595)*(575-595)mm.

Package:

  1. Every piece packed into poly bag or paper box;
  2. 2pcs/ctn;
  3. Exported standard carton,

Carton size:

  1. T5 (traditional and LED) types: 61*61*12.5cm, 64*64*16.5cm
  2. T8/T10 (traditional and LED) types: 64*61*16.5cm, 64*64*16.5cm.

Application:



Office, supermarket, meeting room, business centre, hospital, work room, restaurant, Indoor parking lot, school, and other indoor lighting required.







More Spec And Types:



air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel



Built-in air slot lamp panel 3*14W,3*18/20W       Built-in air slot lamp panel 3*14W,3*18/20W



air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel



Built-in air slot lamp panel 3*14W,3*18/20W       Built-in air slot lamp panel 3*14W,3*18/20W



air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel



Built-in air slot lamp panel 3*14W,3*18/20W      Built-in air slot lamp panel 3*14W,3*18/20W



air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel air slot lamp panel

Built-in air slot lamp panel 3*14W,3*18/20W      Built-in air slot lamp panel 3*14W,3*18/20W
