Wholesale KG-UV8D Handheld 400-520mhz Uhf Radio 2-way
US$ 10 - 30
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Wouxun
Model Number:
KG-UV8D
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Joytone NA-773A Newest Portable fm Talkie-walkie AntennaUS$ 0.5 - 3MOQ: 10 Pieces -
2015 Newest YNK-30 Ultra Thin Wireless Bluetooth Keyboard CaseUS$ 0.5 - 4MOQ: 10 Pieces
-
2015 Newest FNB-V96 Li-ion Ham Transceiver Portable BatteryUS$ 1 - 6MOQ: 10 Pieces
-
2015 Newest FNB-V88 Professional Channel Transceiver BatteriesNegotiableMOQ: 10 Pieces
-
2015 Newest FNB-V130LI Portable Powerful Interphone Cell VX350 VX351 VX354NegotiableMOQ: 10 Pieces
Place of Origin
Fujian, China
Brand Name
Wouxun
Model Number
KG-UV8D
Type
Handheld
Dimensions
114*52*29.5MM
Frequency Range
136-174Mhz ,245-246MHz,400-470MHz,450MHz-520MHz
Storage Channel
128 channels , 3 types channel scan
Talk Range
5-10KM
Product Description
Wholesale KG-UV8D handheld 400-520mhz uhf radio 2-way
Main Features
- Large half dot matrix LCD display
- Tri-color LCD illumination
- dual freqency display
- 128 channels , 3 types channel scan
- Priority channel scan
- 50 CTCSS / 214 DCS Encode & Decode , and 1 group user defined CTCSS / DCS
- 8 Groups of voice scrambler
- voice compandor
- high / low power swithchable
- DTMF , MSK Signaling
- selective call , group call
- remote kill , Stun & Activate
- Programmble 25kHz / 12.5khHz channel spacing
- voice operated transmit vox
- squelch tail elimination
- time out timer
- crystal audio FM Radio
1). Specification of Profesional long range two way radios ( KG-UV8D)
| 1). Frequency Range |
136-174Mhz ,245-246MHz,400-470MHz,450MHz-520MHz |
| 2). Channel Capacity | 128 |
| 3). Channel Spacing | 12.5 / 25.0KHz |
| 4). Operation Voltage | DC7.4V Li-ion |
| 5). Battery capacity | 1600mAh (Li-ion) |
| 6). Battery life | About 13 hours |
| 7). Frequency stability | ±2.5ppm |
| 8). Dimension(H*W*D)(Without Antenna) | 114*52*29.5MM |
| 9). Weight(With Antenna & Battery) | 250g |

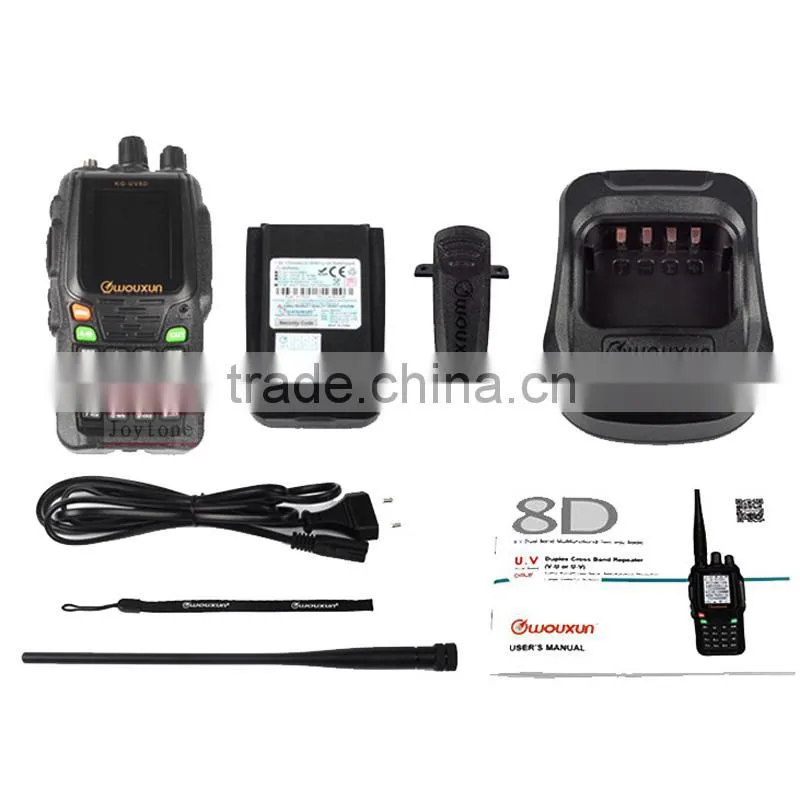

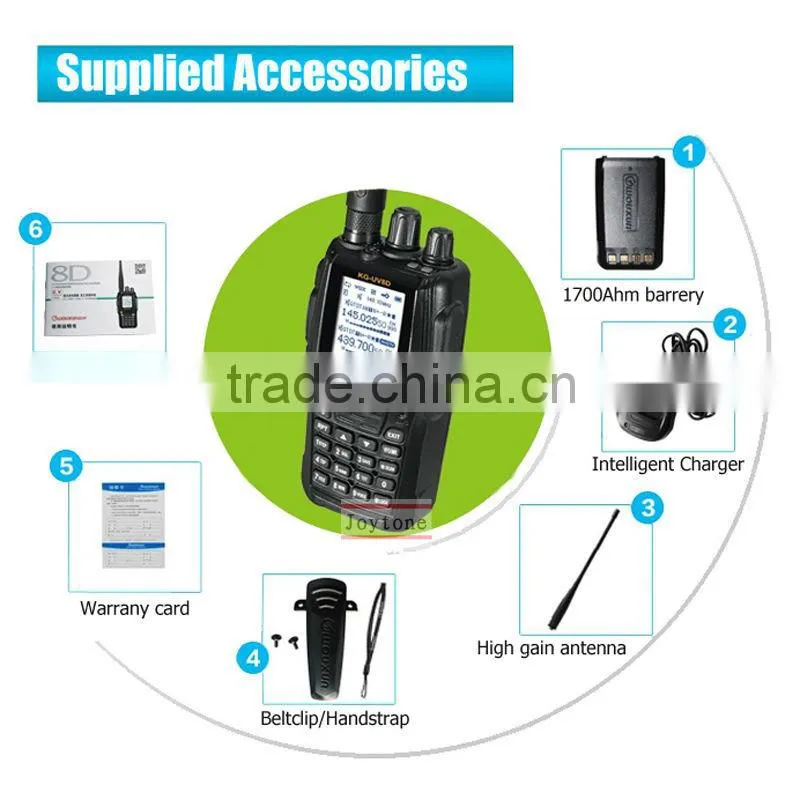

2).Accessories
| 1).Battery Pack | 1 set |
| 2.Antenna | 1 set |
| 3).Charger | 1 set |
| 4).AC Adapter | 1 set |
| 5).Belt Clip | 1 set |
| 6).Hand strap | 1 set |
3).Transmitter
| 1). RF power output | UHF:4.0W / 1.0W ,VHF:5.0W / 1.0W |
| 2). Modulation Type | F3E |
| 3). Spurious and harmonics | -36dBm<1GHz ; -30dBm >1GBz |
| 4). FM Noise | 40 / 45dB |
| 5). Audio Distortion | ≤5% |
| 6). Audio Resonse | 1dB~3dB |
4).Receiver
| 1). RF sensitivity | ≤0.30 / 0.2uV |
| 2). Adjacent chnnel Selectivity | 60 / 70dB |
| 3). Intermodulation | 65 dB |
| 4). Spurious response rejection | 70 dB |
| 5). S/N | 40 / 45dB |
| 6). Audio power output | 750mW |
| 7). Audio Distortion | ≤5% |

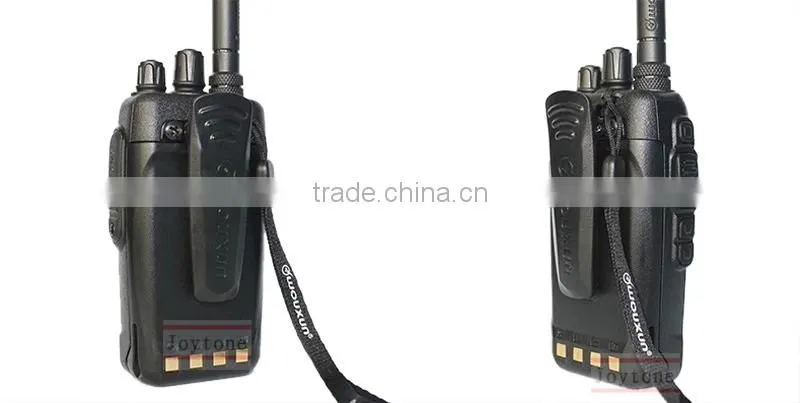

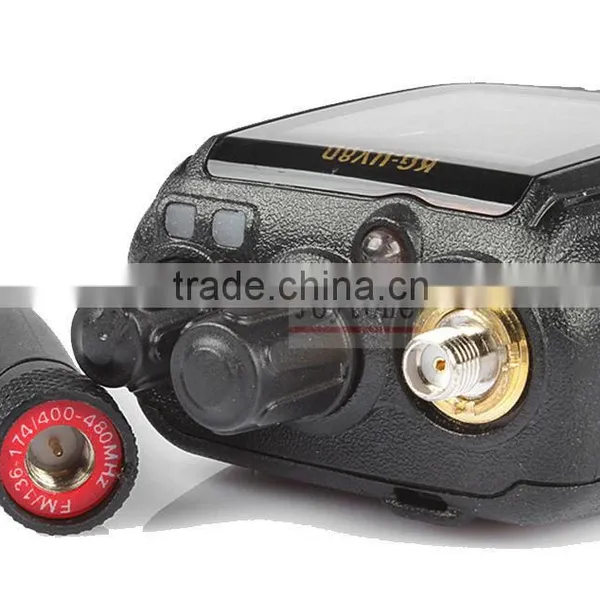

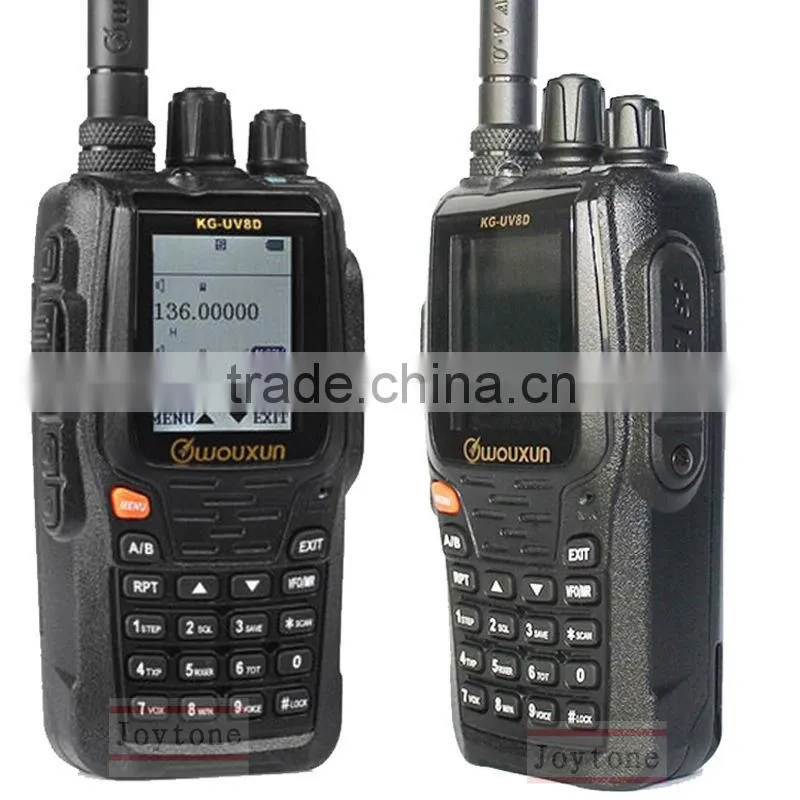

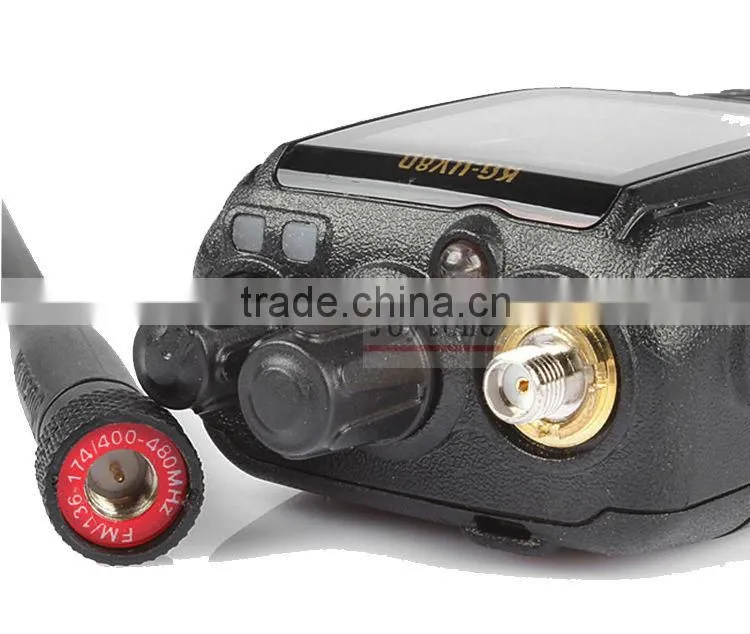

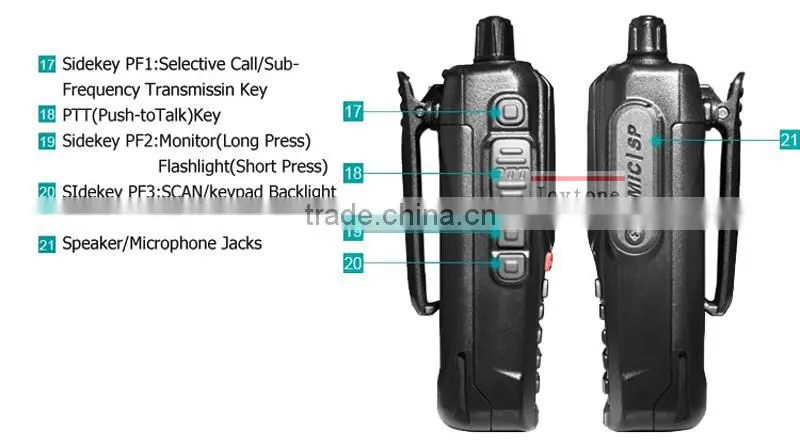

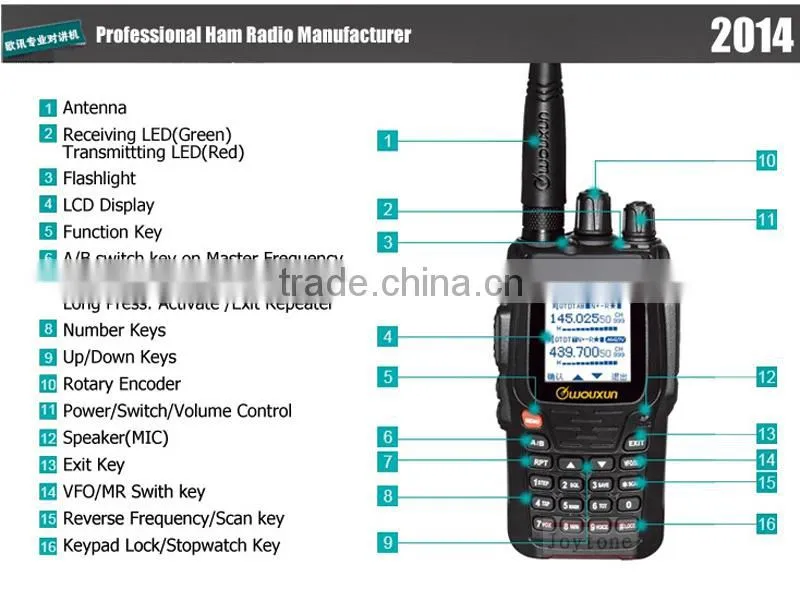

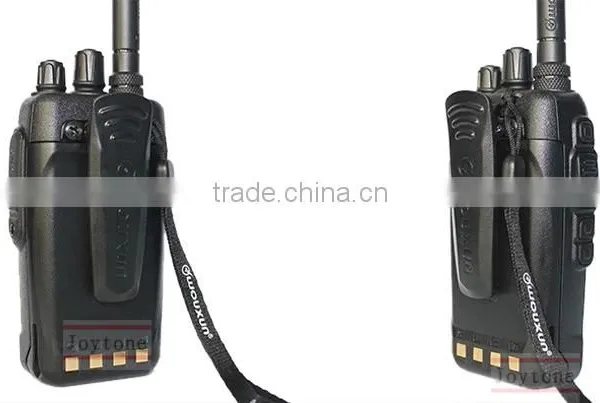

Wholesale KG-UV8D handheld 400-520mhz uhf radio 2-way more detail picture
Our Services
Note:
1. Please contact us at first time for bulk order. More discount waits for you.
2. Please inform us beforehand if you want to reduce the invoice value shows to your customs.
About Us
1.We are two way radio manufacturer,also radios and accessories larger wholesaler at the south of China;
2.OEM service offered, we can design the packing box and LOGO mark as your request.
