Home > Products > Road Marking Machine > Small Cold Paint Air Spraying Road Marking Truck

Small Cold Paint Air Spraying Road Marking Truck

Name: Small Cold Paint Air Spraying Road Marking Truck
Brand: TATU
Availability: InStock

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Supply Ability 120 Set / Sets per Month
Port China main port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power(W)	74KW
Place of Origin	Henan, China	Brand Name	TATU
Model Number	TT-Q50-CK1600	Dimension(LWH)	684221102550mm
Weight	5T	Features	fully automatic
Certification	ISO	Warranty	one year upon shipment from factory
After-sales Service Provided	Overseas service center available

Product Description

Small Cold Paint Air Spraying Road Marking Truck

Product Description

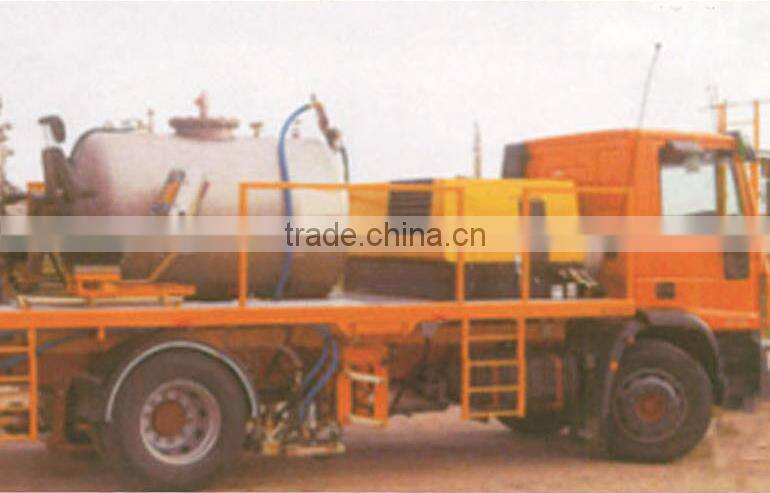

Product Photo ( TT-Q50-CK1600 )

What is the features of our Road Marking Truck?

1,Excellent construction efficiency
2,Construction quality is good
3,Put less manpower
4,Construction safety and environmentally friendly marking equipment
5,The best choice for long distance high efficient construction

What is the Specifications of our Road Marking Truck?

Technical Data:

Marking Method	air spraying
Glass Dispensing Method	sprayable (pressure adjustable)
Material Container Volume	2×1000L + 100L (pressurized)
Marking Line Width	50-400mm adjustable
Spray Gun Quantity	2 air spray guns

Chassis Specification:

Chassis Brand	Isuzu QL1090TKAR or JAC Hao38
Overall Dimension (mm)	6842×2110×2550mm, 7020×2260×2560mm
Rear Cargo Box Dimension (mm)	4880×2110×550mm, 5058×2150×450mm
Rated Load (T)	5T
Engine Model	4HK1-TC (Isuzu) or YZ4105 (JAC)
Engine Power:	129KW (Isuzu) or 75KW (JAC)
Tyre Model	8.25-168 (Isuzu) or 25-16 (JAC)

Equipment Specification:

Air Compressor	screw-type air compressor 1m³/min
Engine Power	air compressor power 2.5KW, hydraulic system power 26.2KW
Glass Bead Container Volume	2×125L
Sweeping Device	optional
Reflective Cone Placing structure & Rear Standing Platform	optional

Packaging & Shipping

Our Exhibitions

Why Choose Us?

Why Choose Us ?

     1,Asia's No.1 Manufacturer
     2,World's No.1 Exporter
     3,Quality CE & ISO Certified
     4,Perfect Service System

Company Information

Company View

TATU is the global brand specialized in research and development, production and sales of road marking products, and also the oldest brand among all the manufacturing brands as a subsidiary of TATU TRAFFIC GROUP.

Product R & D strategy: Enter from High-end, Stride systematically, Extend vertically and Promote comprehensively.TATU brand products mainly include three business modules as road marking machinery, road marking material(paint, special resin and glass beads) and traffic safety facilities, and have advantages as road marking machinery with the most comprehensive ranges and the largest number of production units, road marking material with the most varied types and the longest industrial chain, the most export countries and the most comprehensive service capabilities.
Some products are firstly developed in the world and many products are in the leading positions.

TATU will continue to promote the vitality of its technical innovation, lean manufacturing advantages and the traditional emphasis on the customer experience, and commit to R&D, manufacturing and sales of road marking products and other road-specific safety facilities through its world-class technology research institutions, seven modern manufacturing bases and multivessel lean and efficient marketing services team.

With TATU growing out of nothing, from small to big, from big to strong, from China to the world, TATU will help customers enhance their value sustainably with higher standard.

FAQ

TOP 5 Trade FAQs

1,I need some road marking paint for test, can you provide it?
Yes, of course. We can provide free paint samples, for the laboratory testing or actual testing, but you need to pay the postage.
If you need samples of road marking paint, please contact our sales engineer or leave a message to us, please tell us which kind of road marking paint that you need, how much do you need, and the recipient's name, address, postcode and telephone number.
Once we receive your information, we will promptly contact you to confirm the information and postage, and prepare the paint samples for you.
After receipt of postage, we will immediately send the paint samples to the address you specify by TNT, DHL, FEDEX or any other first class courier company.
Thanks for your support for our products, if any other questions, please contact us, thank you.

2,I want to visit your factory, what should I do?
As Asia's largest road marking machines and road marking paints manufacturer, every year hundreds of clients from around the world visit our factory, visit our road marking machines and road marking paint workshop. If you also wanted come to China and visit our factory, then the following content will provide you with detailed instructions.

Firstly, if you decide to visit our factory, please notify our sales engineer who is in touch with you, as soon as possible. Tell him / her the number of visitors and the date, so we can arrange the reception.

Secondly, prepare the passport and visa to China. If you need our assistance, please contact with our sales engineer, we will try our best. You can find the Chinese embassies and consulates' contact information in the following websites:
/eng/wjb/zwjg/2490/
/service/wjb/

Thirdly, After obtaining the visa, you need to make sure the route and schedule and scheduled flights. If you need us to scheduled return ticket or hotel for you, please contact our sales engineer, along with a scanned copy of your passport.

We are located in Zhengzhou City, Henan Province, China, you can first fly to Beijing, Shanghai, Guangzhou or Hong Kong, and then transfer to Zhengzhou.

Fourthly, After ticket booking, please give the ticket information to our sales engineer, we will arrange car to pick you up.
In order to give you a pleasant journey, if you have any other needs, please inform our sales engineers in advance. Thank you. We look forward to your visit.

3,Do you have the road marking machine in stock? When can you delivery?
As Asia's largest road marking machines and road marking paints manufacturer, almost all models of products are in stock, except the big driving-type road marking machines. Please contact our sales engineer or leave us a message to get the latest accurate information.
If we have the products in stock, after receipt of payment, we will delivery in 5 business days. If we don't have it in stock, different models, different production cycles, please contact the sales engineer to confirm the delivery time.
Thanks for your support for our products, if any other questions, please contact us, thank you.

4,What payment methods do you accept?
Thanks for ordering our road marking equipment & material. About the payment terms:

1. T/T (Telegraphic Transfer)
Total amount <=USD50,000; 30% T/T as deposit in advance, 70% T/T balance before ship out; or 100% T/T.

2. L/C (Letter of Credit)
Total amount >USD50,000; 100% L/C; or 30% T/T as deposit in advance, 70% L/C at sight.
In international trade, T/T is a normal, fast and convenient payment terms. Many of our clients prefer to use this method. And here please note that, we only accept confirmed, irrevocable sight L/C, and must open by the big international bank.

5,How do you pack and ship the road marking machine?
Small and Medium Size Machine: Plywood packing, custom fumigation free; ship by sea or air.
Big Size Road Marking Machine and Paints: Container packing, ship by sea.
Photos about Packing and Shipping:
We will try our best to make sure every detail is perfect, please rest assured.
