Hand-Push Airless Road Marking Machine

Specifications

road marking machine,line marking machine,thermoplastic road marking machine

1. Engine: Japanese Robin 6.0HP or Honda 5.5HP deceleration gasoline engine.

2. Paint pump: The imported diaphragmatic high pressure airless pump with big flow and stable pressure. Maximum pressure is 20mpa (working pressure is 10-15mpa) with maximum flow 4.5L/min.

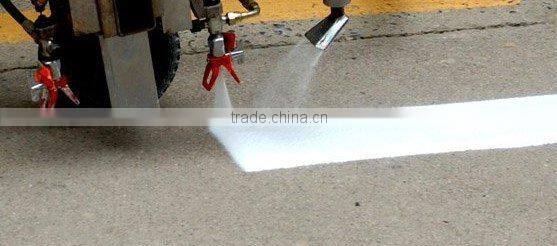

3. Spray gun: Equipped with single new-type manual spray gun with hard side columnar reverse washed nozzle (20/25) which can make the on-spot discharging easy and convenient; the non-arc nozzle ensures the marking line straight and exact. The 6m lengthening pipe which is installed with the machine can be used for spraying special signs or lines like arrows, letters or pedestrian lines.

4. Spray width: 100-200mm.

5. Chassis: A firm welded frame; its surface has been chrome-plated, galvanized or sprayed with anti-corrosion paint; equipped with imported high speed bearing which ensures the whole machine lighter and more convenient. The hand brake device is convenient for stopping on the slope.

6. Rubber wheel: The left and right back wheels are gas-filled pressure resistant vacuum wheels whose diameters are 350mm; the front directional wheel is special naturally modified rubber wheel with abrasion resistance whose diameter is 190mm.

7. Front wheel directional device: The directional device controlled by the brake handle ensures the road marking machine to operate freely in straight line or turning.

8. Guide rod: Freely adjust to up, down, left, right.

9. Paint tank: Use paint tank (option for special paint tank to improve the work efficiency). There is air in-take filter in the feeding port.

10. Size & Weight: 1450mm (L) ×1100mm (W) ×890mm (H).130kg


    Option for TT-ZT-II Roll Booster for operator to realize automatic function.

    Type B is stainless steel spraying system that applies to water based paint.

    Except all the functions of type B, type C is equipped with a micro-electronic control system, which consists of micro-electronic controller, on-off coder, electromagnet, special gun bracket and so on. This system can set four kinds of marking modes according to the national road marking standard, and realize fully automatic control.
