8 inch computer wholesale industrial pc with PDIF slot

Specifications

Intel AtomTM Dual-core processor
Independent graphics NVIDIA ION2&support 1080p HD photo quality
Fanless Ultra slim Panel PC

8 inch computer wholesale industrial pc with PDIF slot (AIO-8000)

Advantages:

1. sample is avaliable

2. CE/RoHS certificate are approval

3. good quality

4. competive price

5.12 month warranty

6.1800 units sales per month

7.Wall mount bracket/Rack mount/VESA bracket optional

8.SDD: 1GB-4GB CF/8GB-512GB SDD, industrial grade -40°~+85° optional





Product Display:

Front→

Succinct, Natural and curve smoothing frontal appearance

Port→

Side→Panel PC

Fanless Ultra slim Panel PC

Product Features

n Standard with  Intel® Atom^TM    Dual-core processor

n High brightness ,Full view angle IPS TFT panel

n Multi-directional heat- releasing structure

n Built-in W-Lan Antenna(802.11b/g/n)

n Ultra slim metal design , beautiful ,durable and rugged

n Independent graphics NVIDIA ION2  and support 1080p HD photo quality



SBC Model:     ALL IN ONE special & professional SBC

CPU:     On board Intel® Atom  D525 1.8GHz dual core

BIOS:    Award BIOS 4/8Mbit SPI Flash ROM

Chipset:    Intel NM10 Express Chipset

Memory:    2×204-pin DDR3 DIMM up to 4GB

Graphics:   Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card:    Realtek ALC662 high Definition audio codec

Network:     2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O:   4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface:   2.5”SATA (SSD optional)

Watchdog:   Support system reset grade   0~255

Front panle grade:   IP65

Power supply:   DC 12V input

Monitor size:    8"

Touch type :    4 –wires resistive touch

Surface hardness:    3H

Transmittance:    ≥80%

Sensitive:    <10ms

Resolution:   1024× 768

Brightness:   400cd/m2(Typ)

Contrast:   700:1

LCD color:   16.7M colors

Pixel Pitch:    0.264 x 0.264

Life time:    Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature:     -20°C~60°C

Storage temperature:    -30°C~80°C

Working Humidity:    5%—95%,40°C,Non –condensing

Vibration:    5-100Hz,Sine wave,11.76m/S2,1minute  X,Y,Z directions,10 times / direction

Shock:   294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint)

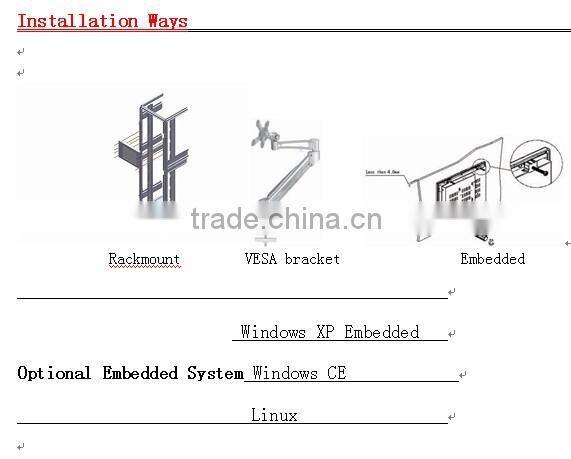

Installation ways:    Rackmount , Embeded , wall mount ,VESA bracket

Shock:    294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways:    Rackmount , Embeded , wall mount ,VESA bracket

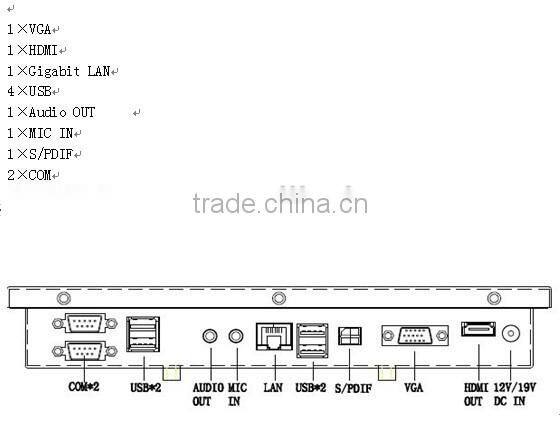

I/O Interface

The base is firm and durable, and can be adjusted to best using position to make sure the effect of without slaking when touching.



Optional  Spareparts

Wireless Lan: 802.11 b/g/n Mini-PCIe Intel® wireless lan module

Standard Bracket: Wall mount bracket /Rackmount /VESA bracket

DDR Memory: 1G-4G

SSD: 1GB-4GB CF, industrial grade  -40°~+85°

           8GB-512GB SSD,industrial  -40°~+85°



Ordering Information

   8"Panel PC , 4-wires resistive touch N/RAM;HD

   8"Panel PC , 4-wires resistive  W/2G RAM;standard HD



Packing information

Power Adaptor, AC Power cable,  Driver Disk, Certificate, Touch Pen Screws

               √                                    √                                    √                         √                               √

Fashion and industrial grade machine with touch screen is to support

Certificate:

We will take part in the HK fair every year:

Warranty:

one year warranty for free (with the exception of man-made damage).

Shipment:

 FEDEX, DHL, UPS, EMS, AIR FREIGHT, SEA FREIGHT available
