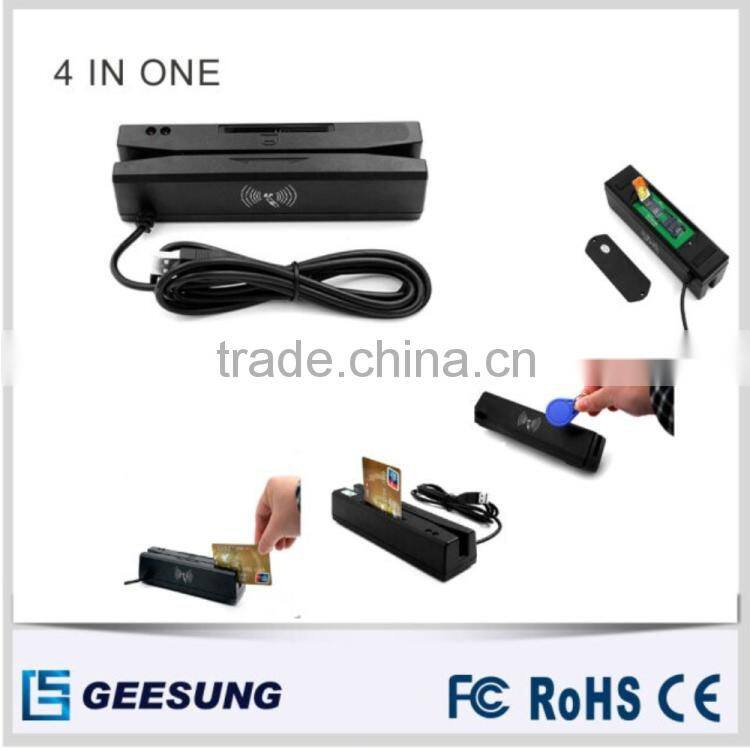

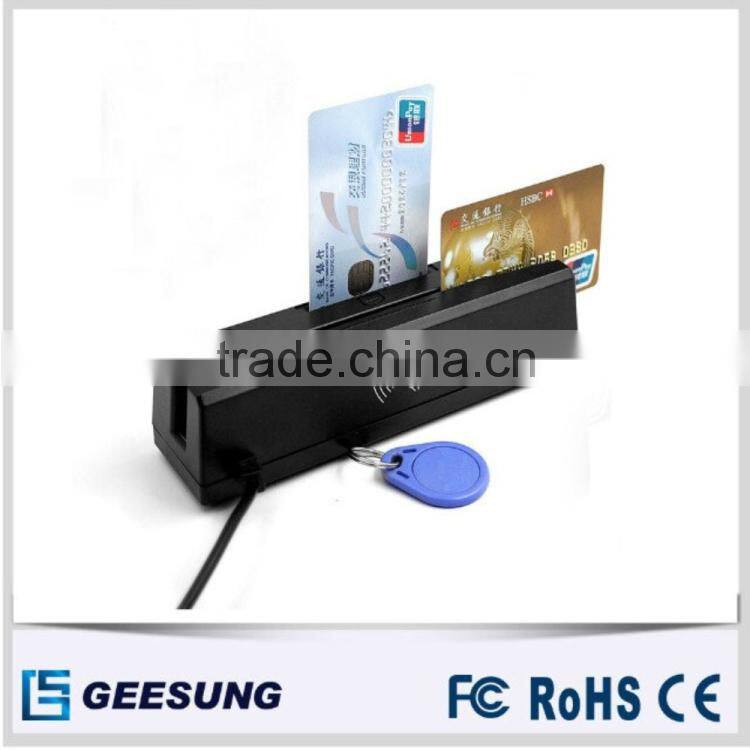

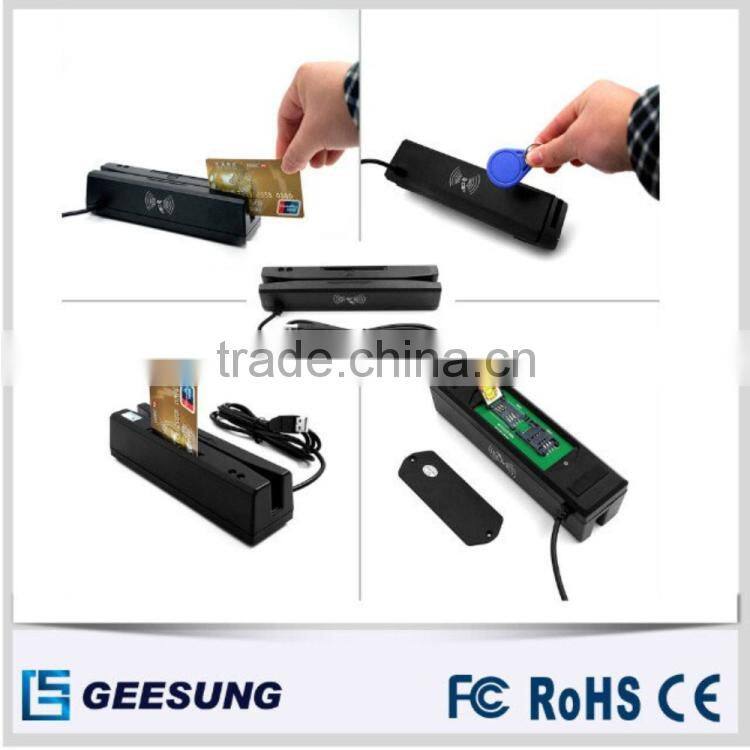

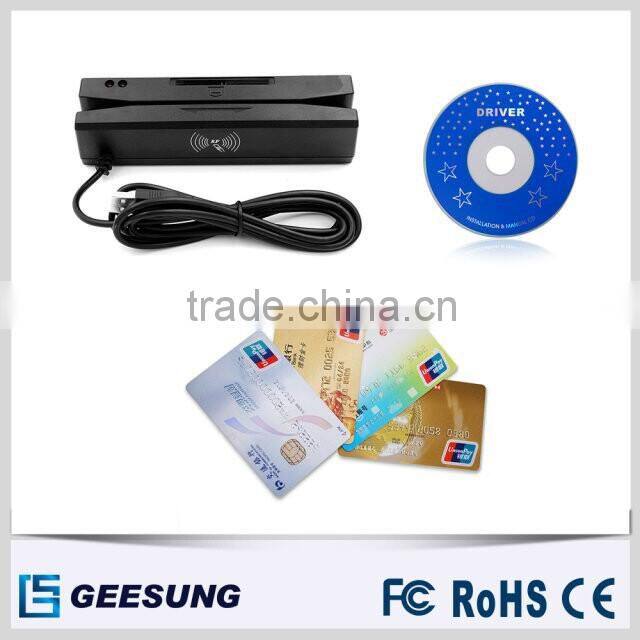

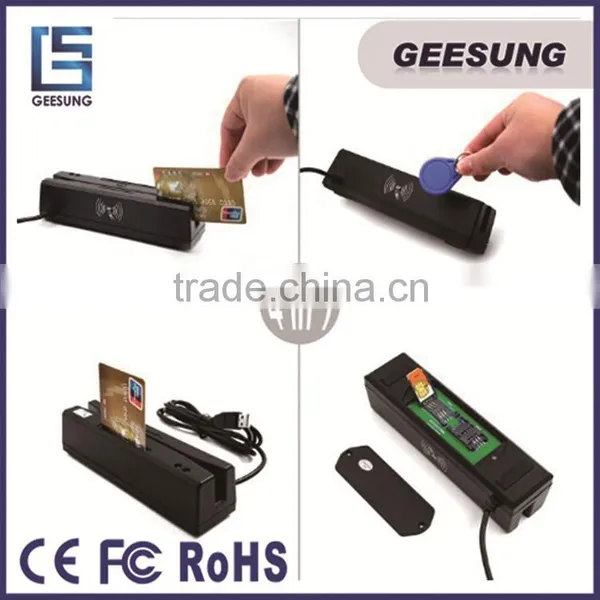

Magnetci Card Reader,EMV/Smart Card Reader

Name: Magnetci Card Reader,EMV/Smart Card Reader
Brand: Carav or OEM
SKU: 105375467
Availability: InStock

US$ 55 - 80 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Carav or OEM

Model Number:

CCS-160

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Carav or OEM

Model Number CCS-160

Magnetci Card Reader,EMV/Smart Card Reader

Brief introduction

1. Magnetic card,Smart /EMV card,PSAM card/RF card option

2.3 track read

3.USB interface

Product Description

Type	Magnetci Card Reader,EMV/Smart Card Reader
Communications	USB2.0,USB-OTG(Android 3.1 above)
Maximum power consumption	100 mW
Temperature	Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity	90% non- condensing
Anti-static interference	15KV
Magnetic interference resistance	19Oersted
Vibration resistance	Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration
Insulation Resistance	Hot and humid circumstances(40°,95%)Insulation resistance should not be less than 5MΩ
Dimensions	160mm(L) ×45mm(W) × 45mm(H)
Weight	180g
Magnetic card
Selectable tracks	yes
Read card	1/2/3tracks
Swipe	Double direction
Swipe speed	3 ~ 60 inches per second
Head life	Approx 500,000 passes
Parity and LRC checking	Built-in, audible and LED good read and error indicator
Cards supported	ISO 7811,AMMVA,CADMV

IC Card
Cards supported	AT24C01A/24C02/24C04/24C08/24C16/AT24C64,SLE4432/4442,SLE4418/4428, ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)

RFID card
Operating Frequency	13.56 MHz
Smart Card Interface	ISO14443-A, Mifare
Sensing Distance	About 0-5cm
Programmable sound	ON or OFF
Cards supported	ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight, ISO14443B ,SONY felica
PSAM card
Head life	Approx 200,000 passes
Communications	USB
Cards supported	ISO 7816-3
operating system	Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux
