Customer Display for Pos/Rear Pole Display/VFD Display 2x20 Character
Brief Introduction of Pole Display
1.40 Character 2 lines LED customer display
2.RS232 Interface or USB option
3.One sample is ok.
4.Yellow,Blue color,with button option
| Name | Customer Display for Pos/Rear Pole Display/VFD Display 2x20 Character |
||||||||
| Model | VFD-221B | ||||||||
| Interface | Serial RS232 port (USB port optional) | ||||||||
| Baud Rate | 9600bps | ||||||||
| Parity | None | ||||||||
| Data Bit |
|
||||||||
| Stop Bit | 1bit | ||||||||
| Electricial | By the power of the host computer DC12 (big 4ps interface) | ||||||||
| Used in Area |
Used in windows charge of POS System, Marketplace, Airdrome, Station, Post, bank etc. |
||||||||
| Display Method | |||||||||
| Display | VFD Bright blue-green fluorescent display | ||||||||
| Display Character | 2 linex20 characters/line, 40 characters, 5x7 Dots | ||||||||
| Character Size | Height 11mmxWidth 7mm | ||||||||
| MTBF | 25,000 hours | ||||||||
| Dimension | |||||||||
| Panel dimension | 80(H)x225(W)x37(D)mm | ||||||||
| Support dimension | Long support: 480mm; Short support: 225mm; Base dimensions: 185(L)x95(W)x25(H) | ||||||||
| Pitching Move Angle | 45°, provide comfortable,and adjust the visual Angle | ||||||||
| Weight | 1.2Kg | ||||||||
| Environment | |||||||||
| Operating Temp | -20°C~70°C | ||||||||
| Storage Temp | -40°C~80°C | ||||||||
| Operating Humidity | 10%~85% | ||||||||
| Storage Humidity | 10%~90% | ||||||||
VFD Display 2 x20 Character with Blue Color

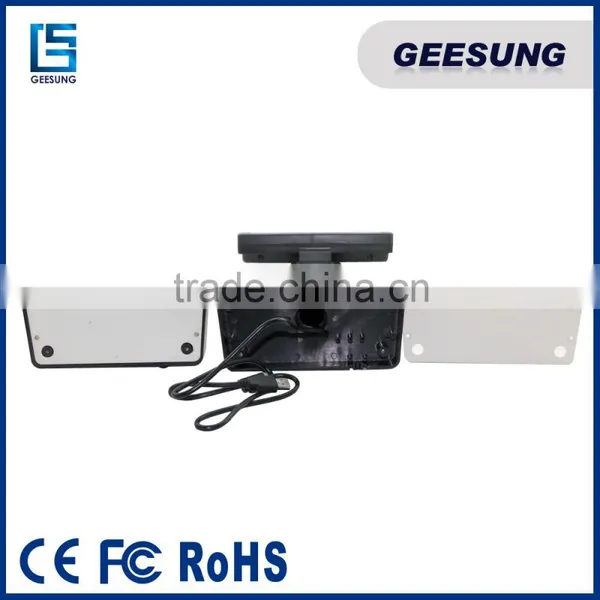

The botton of VFD Display 2 x20 Character

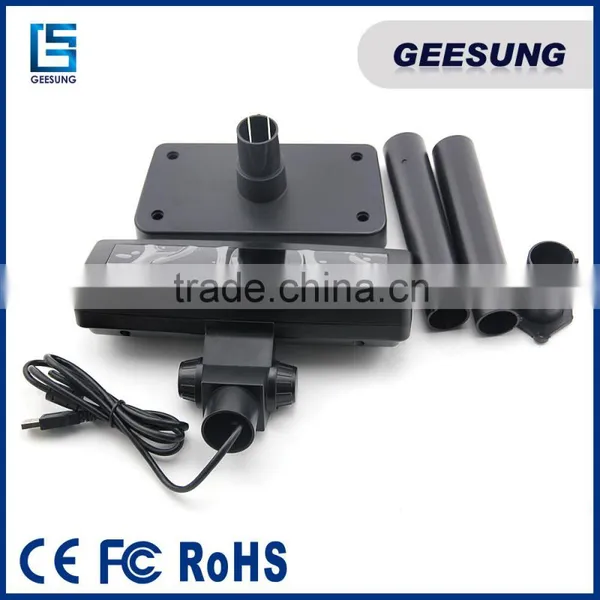

Removable VFD Display 2 x20 Character
VFD Display 2 x20 Character with pos terminal/pos machine
USB Port VFD Display 2 x20 Character
We also supply All in One Pos from 12-21.5",Pos Accesorries,such as 58MM,78mm thermal printer,card reader,barcode scanner,programmable keyboard.
