Specifications

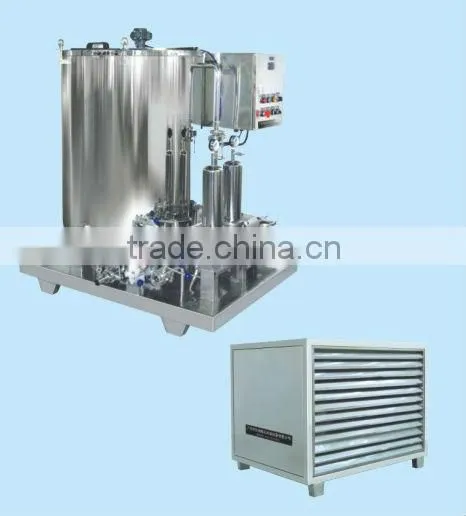

stainless steel perfume machine liquid mixing machine 1. combine with freezing , filtering , mixing. pact 3.200-1000Lstainless steel perfume machine liquid mixing machine from 200L-1000L
your enquiry will meet with our fair quotation .
Equipment Configuration:
1, Stainless steel insulating frozen tank and Titanium metal pipe
2, Ultra-low temperature chiller (imported)
3, Antisepsis pneumatic diaphragm pump
4, Polypropylene microporous filtrating membrane
5, Portable stainless steel bracket
6, Sealed electronic control system & sanitation grade pipes and valves.
Technical parameter:
Model |
3P |
5P |
10P |
Capacity |
200L |
300L |
500L |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Power |
2.2KW |
3.75KW |
7.5KW |
Freezing Temperature |
-5 Celsius degrees |
-5 Celsius degrees |
-5 Celsius degrees |
Freezing Medium |
R22 |
R22 |
R22 |
Air source |
0.5-0.6Mpa |
0.5-0.6Mpa |
0.5-0.6Mpa |
Filter pressure |
0.2Mpa |
0.2Mpa |
0.2Mpa |
Level 1 filter |
1.0um |
1.0um |
1.0um |
Level 2 filter |
0.2um |
0.2um |
0.2um |
Welcome our dear friend to enquire about the price , we will give get back to u immediately .
