Specifications

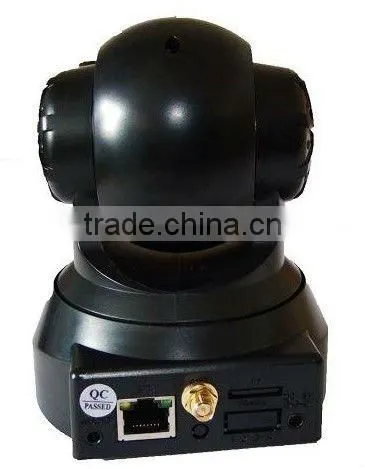

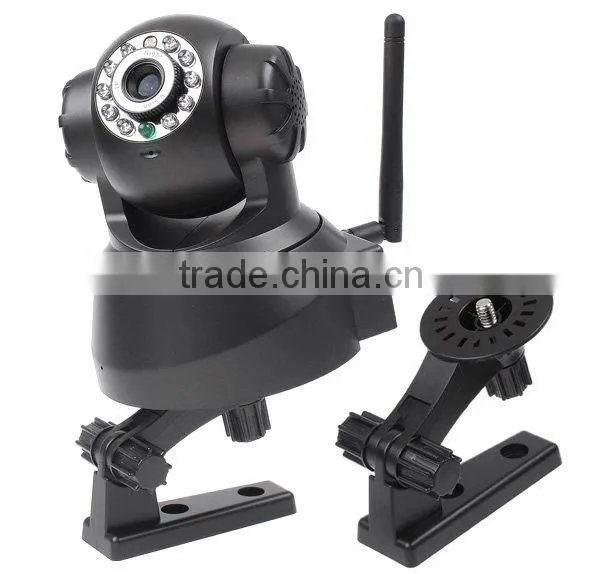

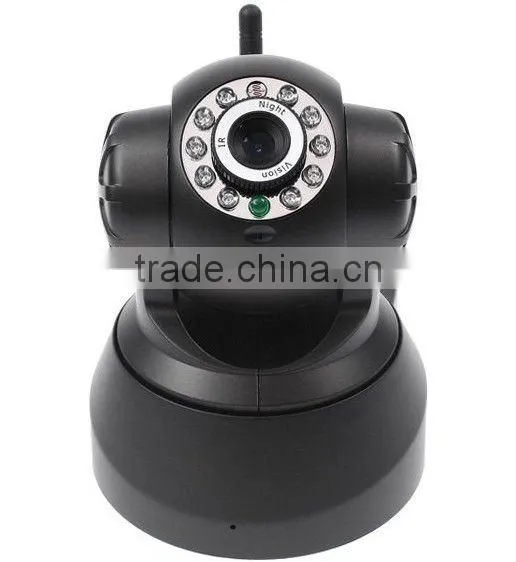

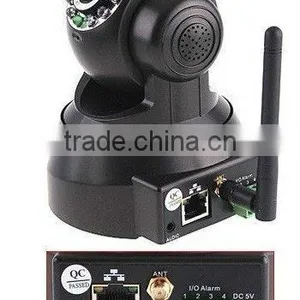

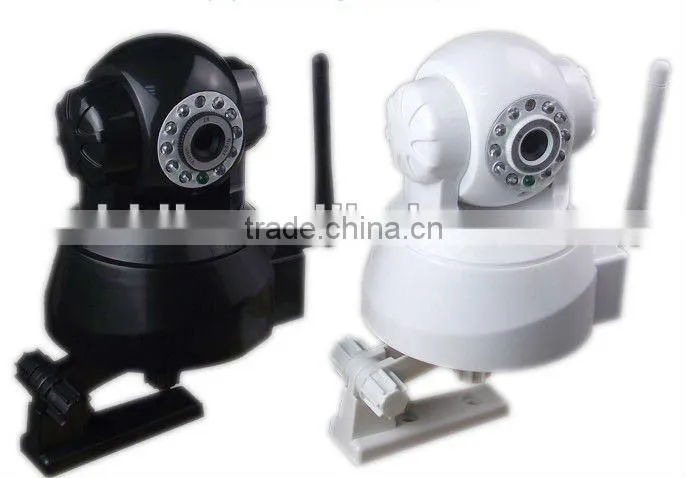

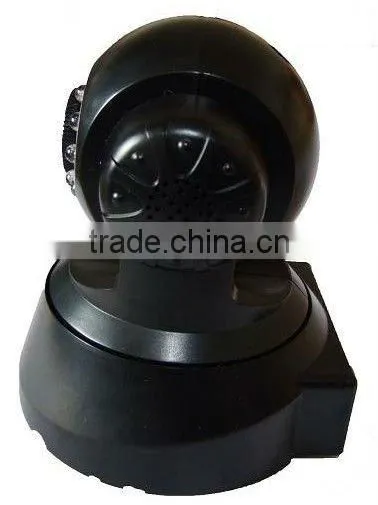

WIFI network wireless IP camera with two way audio, IE browser, cellphone visit, auto cruise and IR night vision etcModel No: L&L-IP541W
The IP Camera combines a high quality digital video camera with network connectivity and a powerful web server to bring clear video to your desktop from anywhere on your local network or over the Internet.
Feature:
1:With built-in Microphone, it enables user to monitor the sound on the site. User can also connect this equipment to the speaker, and it supports two-way intercom function.
2:It was equipped with pan/tilt function, horizontally 270 degree and vertically 120 degree, Its outlook is smart, easy and convenient to install in many sites.
3:Support 802.11b/g protocol, can build up wireless monitoring.
4:Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
5:Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
5:Alarming record can be stored by email, FTP server. External alarm can be open when detecting something unusuality.
6:It adopts the TCP/IP network protocols and has inner web server. Users can browse video through IE and other browsers. Data is transferred through one port; it is easy for user to do the network setting.
7:Support mobile phone to view.
8:Manufacture attaches a label at the bottom of each IP Camera, providing free DDNS. When IP Camera is connected to the internet, this DDNS can be used to visit the device.
9:Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
Technology:
Item |
Sub Item |
Description |
Image Capture |
Sensor |
CMOS sensor |
Total of pixel |
300k |
|
Minimum illumination |
IR ON,0 LUX |
|
Lens |
f=3.6mm, F=2.0,Fixed Iris |
|
Pan/Tilt |
Pan Coverage |
270 |
Tilt Coverage |
120 |
|
Assistant |
Lighting |
10pcs 850nm Infrared LED,5m distance |
Lighting Control |
Auto control |
|
Video and Audio |
Resolution |
640*480(VGA)/320*240(QVGA)/160*120(QQVGA) |
Compression |
MJPEG |
|
Frame rate |
30fps |
|
Bit rate |
128kbps -5Mbps |
|
Image Rotation |
Mirror /Flip |
|
Audio Compression |
ADPCM |
|
Network |
Basic Protocol |
TCP/IP UDP/IP HTTP SMTP FTP DHCP DDNS UPNP NTP PPPOE |
Other Protocol |
802.11b/g |
|
Other Features |
Video control |
support |
Dual way audio |
support |
|
Motion Detection |
support |
|
Triggered Actions |
Email/FTP/external alarm/send message to alarm server |
|
User Setting |
Three levels |
|
Date/ Time Setting |
support |
|
Upgrade |
Upgrade from network |
|
DDNS |
A free DDNS provided by manufacturer |
|
Hardware Interface |
Ethernet |
10Base-T/100base-TX |
Alarm In |
1 way |
|
Alarm Out |
1 way |
|
Audio In |
Internal mic |
|
Audio Out |
Audio Line-out interface x 1 |
|
Physical Index |
Weight |
0.85Kg |
Main body |
100mm(L)*99mm(W)*118mm(H) |
|
Power |
DC 5V |
|
Power consumption |
<6W |
|
Operating temperature |
-20~ 50degree |
|
Operating temperature |
10% ~ 80% non-condensing |
|
Software(PC Side) |
OS Supported |
Microsoft Windows 98/2000/XP/Vista etc. |
Browser |
Internet Explorer6.0 and Above or Compatible Browser, Firefox, Safari etc. |
|
Application Software |
IPCMonitor.exe |
