SPX Automatic Top Labelling Machine

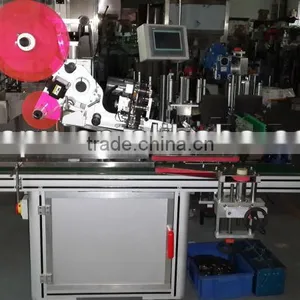

SPX Automatic Top Labelling Machine thumbnail-1
SPX Automatic Top Labelling Machine photo-1
US$ 10,656 - 15,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Material:
Wood
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Guangzhou Sipuxin Light Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Food, Beverage, Commodity, Medical, Chemical, Other, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 50HZ
Place of Origin Jiangsu, China
Brand Name SPX
Model Number SPX-PL
Dimension(L*W*H) 2000*700*1500
Certification ISO900
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic top labeling machine
1.PLC control
2.Man-machine touch-screen control, simple, practical, efficient

                           SPX-PL Automatic top labeling machine







1. Product Features:



1.The double side automatic labeling machine is suitable for square bottles or flat bottles with double mark or single mark.

2.The machine is designed with large-power and strengthening structure.

3.The shape belt can be inclined ,and the labeling head can be adjusted at eight orientations ,so the machine can be adjusted successfully in several minutes for any bottle.

4.The pressure between the active axle and the press roller can be adjusted ,so the running direction of the label can be adjusted freely .the label is only pressed flexibly without causing any distortion.

5.The labeling head adopts the structure of the double press rollers .it guarantees that the label is pulled tightly but isn’t broken because of the underneath paper die-cutting, the separated clutch makes the strain more balanced.

6.The touch screen based human interface in Chinese and English with the online helping system makes it easy for operate the machine for the workers .the press belt is geared into the main transporting line ,so it makes the two transporting lines work in synchronous absolutely .



2. construction of machine



A: Principal machine

750 Panasonic ultra-small inertia servo motor, Panasonic servo amplifier, Danfoss frequency converter, Siemens Programmable Logic Controller (PLC), HITECH human-computer interface (operating interface with English and Chinese),SICK label sensor of Germany, Japan KEYENCE FS-V11 product testing photoelectric switch.


B: mechanical parts
Transport sector: black PU leather belt with high friction, Panasonic motor driver, to ensure  product distribution smoothly and  labeling accuracy.
Shaping sector: double coordinate adjustment of stainless steel rail

Scratch mark sector: sponge , spring ,steel plate combination, Teflon patch. (or flexible brush)
Supporting organizations: stainless steel body, aluminum frame











3. Technical parameters:



Material size: thickness 15-120mm, height: 90-300mm

Labeling speed: 200bottle/min(based on the bottle size and label size)

Labeling precision: ±1mm (Excluding objects and labels are affixed its own error)

Label width: 10-150mm

Conveyer height: 840-900mm

Machine weight(LxWxH): 2400x1500x1600mm

Power supplyer: AC220V±5%, 50HZ







SPX Automatic top labelling machineSPX Automatic top labelling machineSPX Automatic top labelling machine







SPX Automatic top labelling machineSPX Automatic top labelling machineSPX Automatic top labelling machineSPX Automatic top labelling machine
