Guangzhou quality premium semi automatic double side bottle label machine with PLC control
What is Sipuxin double side label machine
This machine can be used for a variety of cylindrical objects entire week / half weeks, front and backlabeling, such as red wine, wine, square bottle, octagonal bottle labeling; the machine can also be equipped with ribbon coding, labeling can be achieved simultaneously print production lot number and other information.
Labeling process analysis

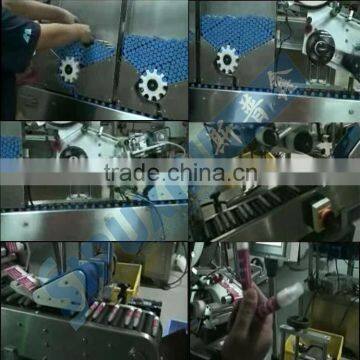

Bottle transfer→ Bottles separate → Labeling detection → Labelingcovering → Bottle sent after labeling → Bottles goes to next process or collect out
Features
♣This model applies to cosmetics, beverages and pharmaceutical industries areas.
♣Equip with PLC touch screen has two language of chinese and English, easy to operate.
♣Labeling sending system can be changebale by adjustment of 8-dimensional space,easily changeable to suitble for different bottles size.
♣Adopt dynamical soft rubber coverd roll to make sure labeling quality,the structure of cylinder claimping roller would improve the labeling precision.
♣Special label for round bottles,precision is high and will not appear bubble on the surface.
♣Air compressor is reciprocating type,to position the bottles,it can stick one or both label at the one time ,it is special suitable for both sides labeling.
♣We can customized machine for your request,the labeling machine can be connect with filling machine,screw capping machine,material transport pump ,etc.
Technical parameter
| Labeling accuracy | ± 1mm (excluding products, labeling error) |
| Labeling speed | 30 ~ 60 / min (with the product label size) |
| Applicable Size | 30≤ product diameter ≤ ¢ 150mm |
| Applicable Label Size | 15≤ width ≤110mm, length ≥20mm |
| Overall size | 4500 × 1500 × 1600mm (length × width × height) |
| Power supply | 220V 50 / 60HZ |
| Total Weight | 450Kg |
Note:In case of inconformity of the date in the form due to technical improvement or customization, the real object shall prevail.

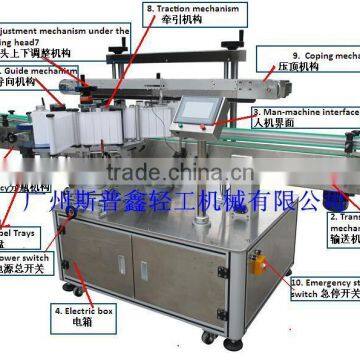

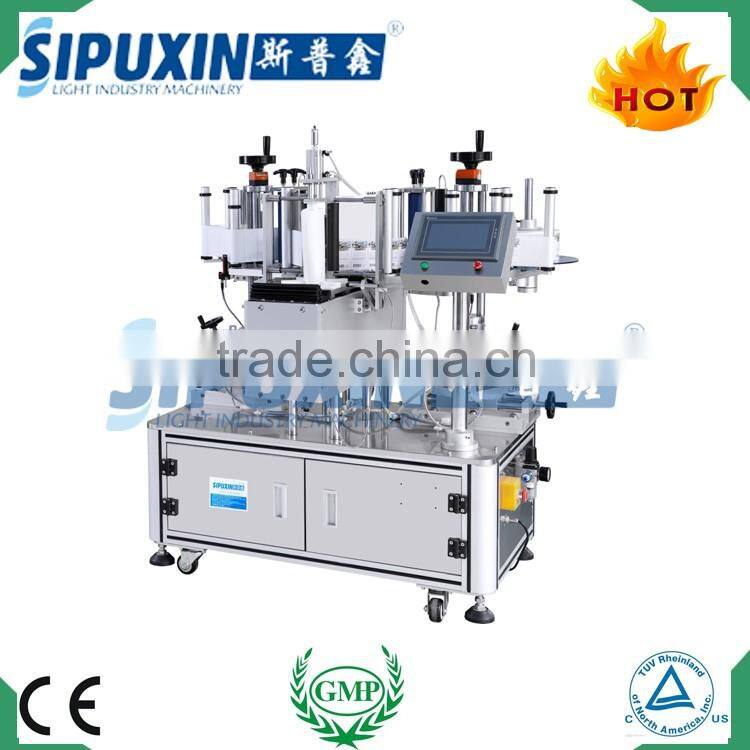

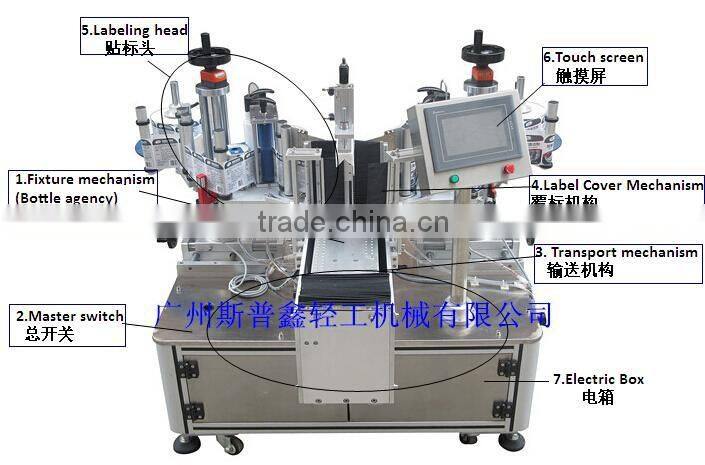

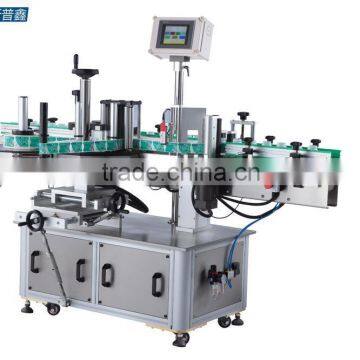

Image of double side label machine
Material Sources Of Parts
Other products you may like
SIPUXIN light industry machinery is a leading Chinese supplier manufacturing Industry and trade integration different industrial mixing and blending including Vacuum Homogenzier Emulsifier, Mixers, Duplex Hydraulic Lifting Fix_type Vcuum Emulsifying Mixers, Small Vacuum Emulsifier Mixers and Liquid Detergent Blending Mixer. Storage Tank . Reverse Osmosis Water Treatment . Filling Machine Sealing Machine. Labeling Machine . Capping Machine. Inkjet Printer other mixer machines. With customers all over the world, and serving industries as diverse as cosmetics, pharmaceuticals, food and chemicals, SIPUXIN has become one of the top manufacturers in the field of industrial mixing and blending.
* Pre-sale: According to email communication or further more communication to make sure the details about the machine.
* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.
Q Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
Q: Do you have one in stock?
A:Sorry. We don’t. All products are manufactured according to customer’s requirement;
Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have provlem,
we will send our engineer oversea for installation guide;
Q: Where is the nearest port?
A:Guangzhou
Q:How to contact you?
