Automatic high speed plane customized plastic water bottle label
What is Sipuxin labeler machine small ?
This machine can be used for a variety of cylindrical objects entire week / half weeks, front and backlabeling, such as red wine, wine, square bottle, octagonal bottle labeling; the machine can also be equipped with ribbon coding, labeling can be achieved simultaneously print production lot number and other information.
Labeling process analysis
Bottle transfer→ Bottles separate → Labeling detection → Labelingcovering → Bottle sent after labeling → Bottles goes to next process or collect out
Features
♣This model applies to cosmetics, beverages and pharmaceutical industries areas.
♣Equip with PLC touch screen has two language of chinese and English, easy to operate.
♣Labeling sending system can be changebale by adjustment of 8-dimensional space,easily changeable to suitble for different bottles size.
♣Adopt dynamical soft rubber coverd roll to make sure labeling quality,the structure of cylinder claimping roller would improve the labeling precision.
♣Special label for round bottles,precision is high and will not appear bubble on the surface.
♣Air compressor is reciprocating type,to position the bottles,it can stick one or both label at the one time ,it is special suitable for both sides labeling.
♣We can customized machine for your request,the labeling machine can be connect with filling machine,screw capping machine,material transport pump ,etc.
Technical parameter
| Labeling accuracy | ± 1mm (excluding products, labeling error) |
| Labeling speed | 30 ~ 60 / min (with the product label size) |
| Applicable Size | 30≤ product diameter ≤ ¢ 150mm |
| Applicable Label Size | 15≤ width ≤110mm, length ≥20mm |
| Overall size | 4500 × 1500 × 1600mm (length × width × height) |
| Power supply | 220V 50 / 60HZ |
| Total Weight | 450Kg |
Note:In case of inconformity of the date in the form due to technical improvement or customization, the real object shall prevail.

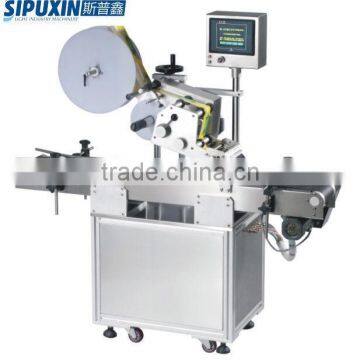

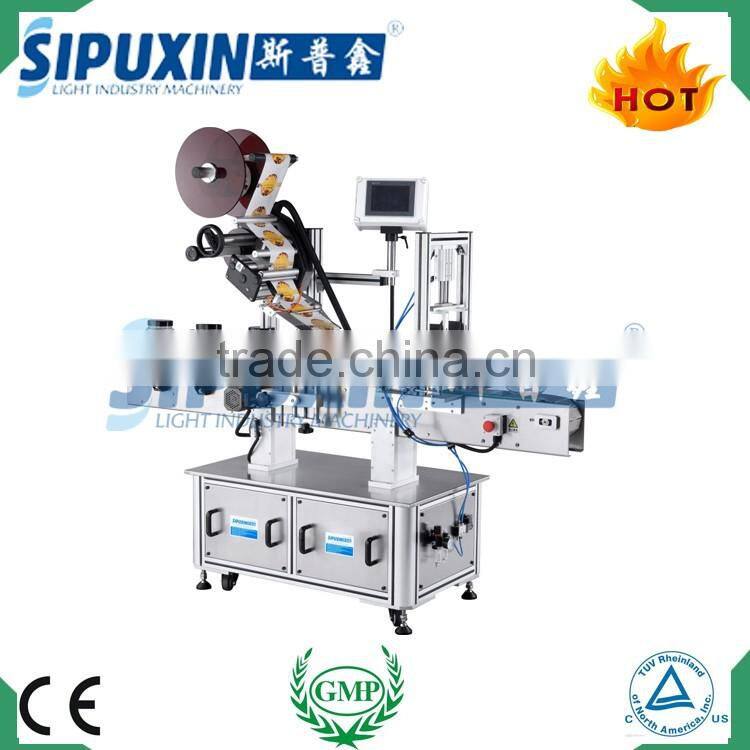

Image of labeler machine small
Material Sources Of Parts
Other products you may like
♣Guangzhou Sipuxin Light Industry Machinery Co.,Ltd. is a professional manufacturer of whole-set equipment for such industries as cosmetics, pharmaceutical ,food and daily chemical ,etc.With solid backing from Yangzhou Sipuxin Light industry Machinery equipment Factory.
♣Sipuxin is devoted to bringing professional , innovative and perfect product experience to clients.
♣Our main products:
Vacuum homogenizing emulsifier, high-shear liquid detergent mixer, reverse osmosis water treatment, storage tank, liquid and powder automatic and semi-automatic filling production line, various bottle capping machine, labeling machine, inkjet printer and other cosmetic and perfume whole-set production line, laboratory equipment, conveyor,etc.
♣Holding the businese philosophy of "customer foremost",Sipuxin supports clients to carry out factory design and model selection according to exisiting sites and provides clients with "one-stop considerate service" including product design ,research and development ,production ,engineering installation
* Pre-sale: According to email communication or further more communication to make sure the details about the machine.
* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.
Q Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
Q: Do you have one in stock?
A:Sorry. We don’t. All products are manufactured according to customer’s requirement;
Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have provlem,
we will send our engineer oversea for installation guide;
Q: Where is the nearest port?
A:Guangzhou
Q:How to contact you?
