Home > Tools & Hardware > Hardware Accessories > Clamps > Grating Clip , Saddle Clip , Grating Clamp

Grating Clip , Saddle Clip , Grating Clamp

Name: Grating Clip , Saddle Clip , Grating Clamp
Brand: Lihong Brand
SKU: 105354571
Availability: InStock

Grating Clip , Saddle Clip , Grating Clamp thumbnail-1

Grating Clip , Saddle Clip , Grating Clamp photo-1

US$ 0.5 - 0.75 MOQ: 100 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Lihong Brand

Model Number:

all

Contact Supplier Request Quote Chat Now

Ningbo Lihongyuan Steel Grating Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Lihong Brand

Model Number all

Usage Other, steel floor and walkway, platform

Material Other, ASTM A36, Q235

Structure Saddle Clamp

Standard or Nonstandard Standard

Specifications

There are three clips for
grating clip ,
saddle clip ,
grating clamp

grating clip , saddle clip , grating clamp .

Type A, B, C of grating clips---composed of a top board with double hook(where one hook can draw together. There are three clips for steel grating fixing , grating clip , saddle clip , grating clamp , steel clip , clamp & clip , steel grating

two neighboring steel gratings),a holding down plate with teeth and a M10(or M8)
inner-hexagon-bolt.

Mobile:008613757445098, TEL:008657488073967, Fax: 008657488073962, Contact person: David Huang.

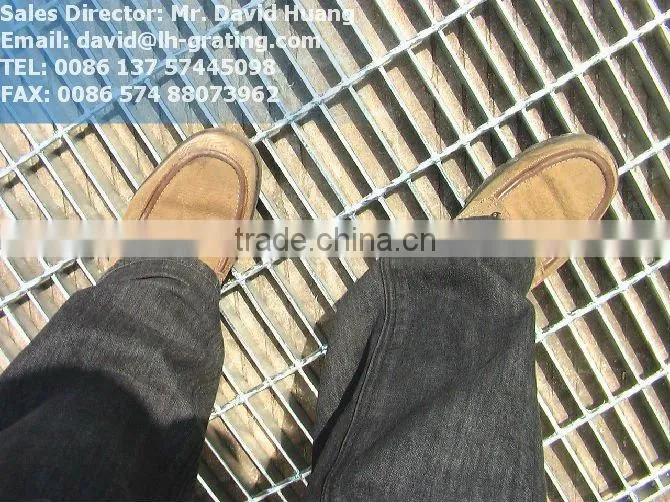

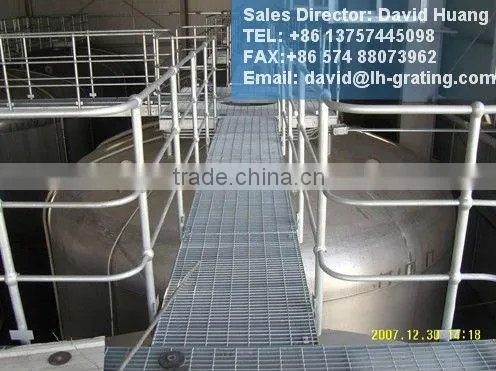

We design and manufacture many kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating, I Bar Type Steel Grating and other gratings. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We also supply standard steel grating and in customized shapes per client's requirements.

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement but 30, 40, 60mm are recommended. America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel ASTM A36 or Q235) ,Stainless Steel 304 or 316
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

Ningbo Lihong Steel Grating Co., Ltd

STEEL GRATING SPECIALIST, YOUR GRATING SOLUTIONS

Sales Director: Mr. David Huang, TEL: +86 13757445098, +86 574 88073967, FAX: +86 574 88073962

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc (Mr. David Huang)
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. (Mr. David Huang)
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc (Mr. David Huang)
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating (Mr. David Huang)
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar (Mr. David Huang)
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS (Mr. David Huang)
