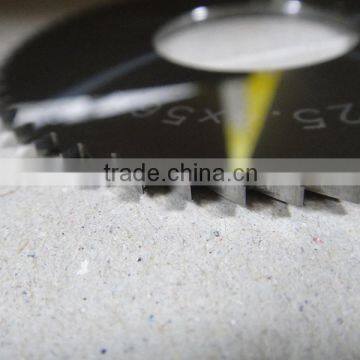

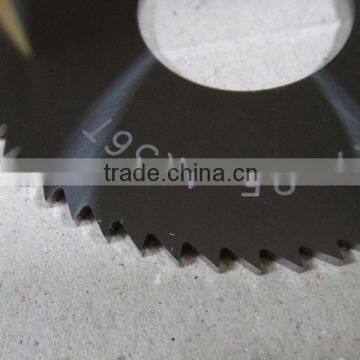

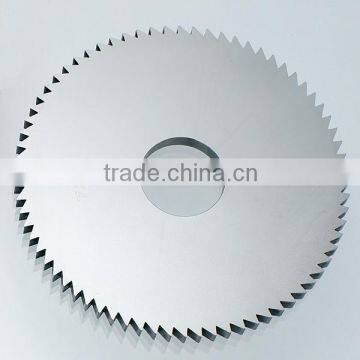

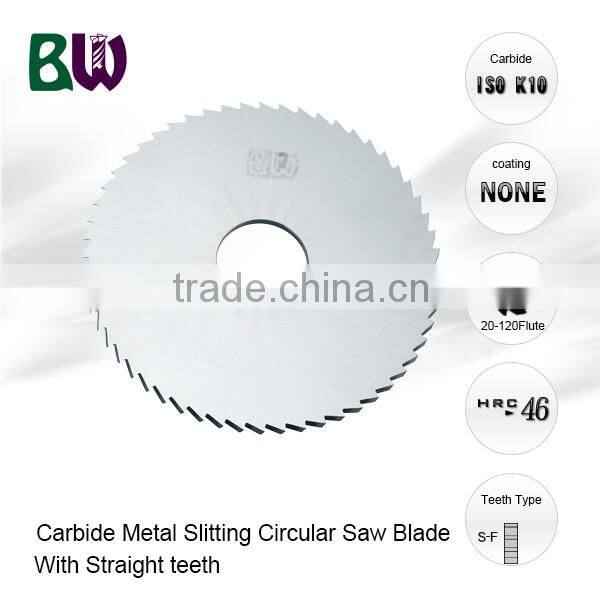

Tungsten Carbide Metal Slitting Circular Saw Blade For Milling Machine
| Product Name | Tungsten Carbide Metal Slitting Circular Saw Blade For Milling Machine |
| Place of Origin | Taiwan |
| Material | Solid Carbide - ISO K10 |
| Type |
|
| Description |
|

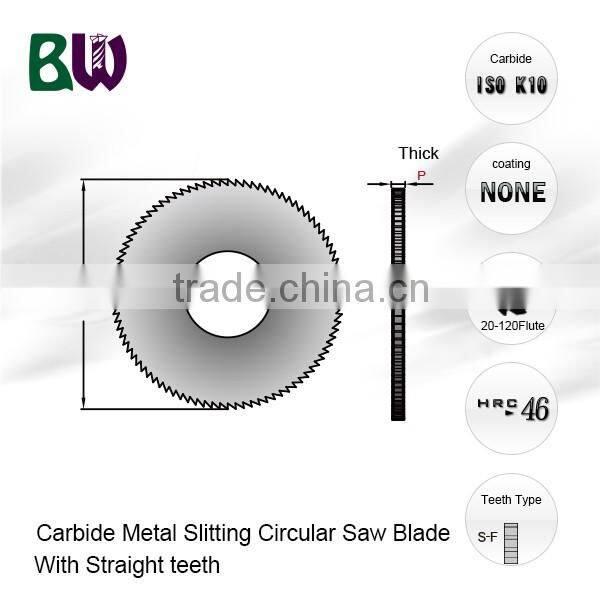

Metal Slitting Circular Saw Blade Specification:
| unit:mm | |||||
| Tungsten Carbide Metal Slitting Circular Saw Blade For Milling Machine | |||||
| Order Code | Diameter D |
Thickness P |
Bore d |
Tooth of Teeth Z |
Tooth Type |
| MSS1-02205020 | 22 | 0.5 | 8 | 20 | S-F |
| MSS1-02210020 | 22 | 1 | 8 | 20 | S-F |
| MSS1-02215020 | 22 | 1.5 | 8 | 20 | S-F |
| MSS1-02220020 | 22 | 2 | 8 | 20 | S-F |
| MSS1-02225020 | 22 | 2.5 | 8 | 20 | S-F |
| MSS1-02230020 | 22 | 3 | 8 | 20 | S-F |
| MSS1-03205032 | 32 | 0.5 | 8 | 32 | S-F |
| MSS1-03210032 | 32 | 1 | 8 | 32 | S-F |
| MSS1-03215032 | 32 | 1.5 | 8 | 32 | S-F |
| MSS1-03220032 | 32 | 2 | 8 | 32 | S-F |
| MSS1-03225032 | 32 | 2.5 | 8 | 32 | S-F |
| MSS1-03230032 | 32 | 3 | 8 | 32 | S-F |
| MSS1-04205048 | 42 | 0.5 | 25.4 | 48 | S-F |
| MSS1-04210048 | 42 | 1 | 25.4 | 48 | S-F |
| MSS1-04215048 | 42 | 1.5 | 25.4 | 48 | S-F |
| MSS1-04220048 | 42 | 2 | 25.4 | 48 | S-F |
| MSS1-04225048 | 42 | 2.5 | 25.4 | 48 | S-F |
| MSS1-04230048 | 42 | 3 | 25.4 | 48 | S-F |
| MSS1-05205056 | 52 | 0.5 | 25.4 | 56 | S-F |
| MSS1-05210056 | 52 | 1 | 25.4 | 56 | S-F |
| MSS1-05215056 | 52 | 1.5 | 25.4 | 56 | S-F |
| MSS1-05220056 | 52 | 2 | 25.4 | 56 | S-F |
| MSS1-05225056 | 52 | 2.5 | 25.4 | 56 | S-F |
| MSS1-05230056 | 52 | 3 | 25.4 | 56 | S-F |
| MSS1-06005056 | 60 | 0.5 | 25.4 | 56 | S-F |
| MSS1-06010056 | 60 | 1 | 25.4 | 56 | S-F |
| MSS1-06015056 | 60 | 1.5 | 25.4 | 56 | S-F |
| MSS1-06020056 | 60 | 2 | 25.4 | 56 | S-F |
| MSS1-06020056 | 60 | 2.5 | 25.4 | 56 | S-F |
| MSS1-06030056 | 60 | 3 | 25.4 | 56 | S-F |
| MSS1-07005056 | 70 | 0.5 | 25.4 | 56 | S-F |
| MSS1-07005072 | 70 | 0.5 | 25.4 | 72 | S-F |
| MSS1-07010056 | 70 | 1 | 25.4 | 56 | S-F |
| MSS1-07010072 | 70 | 1 | 25.4 | 72 | S-F |
| MSS1-07015056 | 70 | 1.5 | 25.4 | 56 | S-F |
| MSS1-07015072 | 70 | 1.5 | 25.4 | 72 | S-F |
| MSS1-07020056 | 70 | 2 | 25.4 | 56 | S-F |
| MSS1-07020072 | 70 | 2 | 25.4 | 72 | S-F |
| MSS1-07025056 | 70 | 2.5 | 25.4 | 56 | S-F |
| MSS1-07025072 | 70 | 2.5 | 25.4 | 72 | S-F |
| MSS1-07030056 | 70 | 3 | 25.4 | 56 | S-F |
| MSS1-07030072 | 70 | 3 | 25.4 | 72 | S-F |
| MSS1-07035056 | 70 | 3.5 | 25.4 | 56 | S-F |
| MSS1-07035072 | 70 | 3.5 | 25.4 | 72 | S-F |
| MSS1-07040056 | 70 | 4 | 25.4 | 56 | S-F |
| MSS1-07040072 | 70 | 4 | 25.4 | 72 | S-F |
| MSS1-07045056 | 70 | 4.5 | 25.4 | 56 | S-F |
| MSS1-07045072 | 70 | 4.5 | 25.4 | 72 | S-F |
| MSS1-07050056 | 70 | 5 | 25.4 | 56 | S-F |
| MSS1-07050072 | 70 | 5 | 25.4 | 72 | S-F |
| MSS1-07055056 | 70 | 5.5 | 25.4 | 56 | S-F |
| MSS1-07055072 | 70 | 5.5 | 25.4 | 72 | S-F |
| MSS1-07060056 | 70 | 6 | 25.4 | 56 | S-F |
| MSS1-07060072 | 70 | 6 | 25.4 | 72 | S-F |
| MSS1-07505056 | 75 | 0.5 | 25.4 | 56 | S-F |
| MSS1-07505072 | 75 | 0.5 | 25.4 | 72 | S-F |
| MSS1-07510056 | 75 | 1 | 25.4 | 56 | S-F |
| MSS1-07510072 | 75 | 1 | 25.4 | 72 | S-F |
| MSS1-07515056 | 75 | 1.5 | 25.4 | 56 | S-F |
| MSS1-07515072 | 75 | 1.5 | 25.4 | 72 | S-F |
| MSS1-07520056 | 75 | 2 | 25.4 | 56 | S-F |
| MSS1-07520072 | 75 | 2 | 25.4 | 72 | S-F |
| MSS1-07525056 | 75 | 2.5 | 25.4 | 56 | S-F |
| MSS1-07525072 | 75 | 2.5 | 25.4 | 72 | S-F |
| MSS1-07530056 | 75 | 3 | 25.4 | 56 | S-F |
| MSS1-07530072 | 75 | 3 | 25.4 | 72 | S-F |
| MSS1-07535056 | 75 | 3.5 | 25.4 | 56 | S-F |
| MSS1-07535072 | 75 | 3.5 | 25.4 | 72 | S-F |
| MSS1-07540056 | 75 | 4 | 25.4 | 56 | S-F |
| MSS1-07540072 | 75 | 4 | 25.4 | 72 | S-F |
| MSS1-07545056 | 75 | 4.5 | 25.4 | 56 | S-F |
| MSS1-07545072 | 75 | 4.5 | 25.4 | 72 | S-F |
| MSS1-07550056 | 75 | 5 | 25.4 | 56 | S-F |
| MSS1-07550072 | 75 | 5 | 25.4 | 72 | S-F |
| MSS1-07555056 | 75 | 5.5 | 25.4 | 56 | S-F |
| MSS1-07555072 | 75 | 5.5 | 25.4 | 72 | S-F |
| MSS1-07560056 | 75 | 6 | 25.4 | 56 | S-F |
| MSS1-07560072 | 75 | 6 | 25.4 | 72 | S-F |
| MSS1-10010072 | 100 | 1 | 25.4 | 72 | S-F |
| MSS1-10010100 | 100 | 1 | 25.4 | 100 | S-F |
| MSS1-10010120 | 100 | 1 | 25.4 | 120 | S-F |
| MSS1-10015072 | 100 | 1.5 | 25.4 | 72 | S-F |
| MSS1-10015100 | 100 | 1.5 | 25.4 | 100 | S-F |
| MSS1-10015120 | 100 | 1.5 | 25.4 | 120 | S-F |
| MSS1-10020072 | 100 | 2 | 25.4 | 72 | S-F |
| MSS1-10020100 | 100 | 2 | 25.4 | 100 | S-F |
| MSS1-10020120 | 100 | 2 | 25.4 | 120 | S-F |
| MSS1-10025072 | 100 | 2.5 | 25.4 | 72 | S-F |
| MSS1-10025100 | 100 | 2.5 | 25.4 | 100 | S-F |
| MSS1-10025120 | 100 | 2.5 | 25.4 | 120 | S-F |
| MSS1-10030072 | 100 | 3 | 25.4 | 72 | S-F |
| MSS1-10030100 | 100 | 3 | 25.4 | 100 | S-F |
| MSS1-10030120 | 100 | 3 | 25.4 | 120 | S-F |
| MSS1-10035072 | 100 | 3.5 | 25.4 | 72 | S-F |
| MSS1-10030100 | 100 | 3.5 | 25.4 | 100 | S-F |
| MSS1-10030120 | 100 | 3.5 | 25.4 | 120 | S-F |
| MSS1-10040072 | 100 | 4 | 25.4 | 72 | S-F |
| MSS1-10040100 | 100 | 4 | 25.4 | 100 | S-F |
| MSS1-10040120 | 100 | 4 | 25.4 | 120 | S-F |
| MSS1-10045072 | 100 | 4.5 | 25.4 | 72 | S-F |
| MSS1-10045100 | 100 | 4.5 | 25.4 | 100 | S-F |
| MSS1-10045120 | 100 | 4.5 | 25.4 | 120 | S-F |
| MSS1-10050072 | 100 | 5 | 25.4 | 72 | S-F |
| MSS1-10050100 | 100 | 5 | 25.4 | 100 | S-F |
| MSS1-10050120 | 100 | 5 | 25.4 | 120 | S-F |
| MSS1-10055072 | 100 | 5.5 | 25.4 | 72 | S-F |
| MSS1-10055100 | 100 | 5.5 | 25.4 | 100 | S-F |
| MSS1-10055120 | 100 | 5.5 | 25.4 | 120 | S-F |
| MSS1-10060072 | 100 | 6 | 25.4 | 72 | S-F |
| MSS1-10060100 | 100 | 6 | 25.4 | 100 | S-F |
| MSS1-10060120 | 100 | 6 | 25.4 | 120 | S-F |
| MSS1-10065072 | 100 | 6.5 | 25.4 | 72 | S-F |
| MSS1-10065100 | 100 | 6.5 | 25.4 | 100 | S-F |
| MSS1-10065120 | 100 | 6.5 | 25.4 | 120 | S-F |
| MSS1-10070072 | 100 | 7 | 25.4 | 72 | S-F |
| MSS1-10070100 | 100 | 7 | 25.4 | 100 | S-F |
| MSS1-10070120 | 100 | 7 | 25.4 | 120 | S-F |
| MSS1-10075072 | 100 | 7.5 | 25.4 | 72 | S-F |
| MSS1-10075100 | 100 | 7.5 | 25.4 | 100 | S-F |
| MSS1-10075120 | 100 | 7.5 | 25.4 | 120 | S-F |
| MSS1-10080072 | 100 | 8 | 25.4 | 72 | S-F |
| MSS1-10080100 | 100 | 8 | 25.4 | 100 | S-F |
| MSS1-10080120 | 100 | 8 | 25.4 | 120 | S-F |
| MSS1-12520100 | 125 | 2 | 25.4 | 100 | S-F |
| MSS1-12520120 | 125 | 2 | 25.4 | 120 | S-F |
| MSS1-12525100 | 125 | 2.5 | 25.4 | 100 | S-F |
| MSS1-12525120 | 125 | 2.5 | 25.4 | 120 | S-F |
| MSS1-12530100 | 125 | 3 | 25.4 | 100 | S-F |
| MSS1-12530120 | 125 | 3 | 25.4 | 120 | S-F |
| MSS1-12535100 | 125 | 3.5 | 25.4 | 100 | S-F |
| MSS1-12535120 | 125 | 3.5 | 25.4 | 120 | S-F |
| MSS1-12540100 | 125 | 4 | 25.4 | 100 | S-F |
| MSS1-12540120 | 125 | 4 | 25.4 | 120 | S-F |
| MSS1-12545100 | 125 | 4.5 | 25.4 | 100 | S-F |
| MSS1-12545120 | 125 | 4.5 | 25.4 | 120 | S-F |
| MSS1-12550100 | 125 | 5 | 25.4 | 100 | S-F |
| MSS1-12550120 | 125 | 5 | 25.4 | 120 | S-F |
| MSS1-12555100 | 125 | 5.5 | 25.4 | 100 | S-F |
| MSS1-12555120 | 125 | 5.5 | 25.4 | 120 | S-F |
| MSS1-12560100 | 125 | 6 | 25.4 | 100 | S-F |
| MSS1-12560120 | 125 | 6 | 25.4 | 120 | S-F |
| MSS1-12565100 | 125 | 6.5 | 25.4 | 100 | S-F |
| MSS1-12565120 | 125 | 6.5 | 25.4 | 120 | S-F |
| MSS1-12570100 | 125 | 7 | 25.4 | 100 | S-F |
| MSS1-12570120 | 125 | 7 | 25.4 | 120 | S-F |
| MSS1-12575100 | 125 | 7.5 | 25.4 | 100 | S-F |
| MSS1-12575120 | 125 | 7.5 | 25.4 | 120 | S-F |
| MSS1-12580100 | 125 | 8 | 25.4 | 100 | S-F |
| MSS1-12580120 | 125 | 8 | 25.4 | 120 | S-F |
BW Circular Saw Blade
keywords:Slitting Saw,circular saw blade,saw,Tungsten Carbide Metal Slitting Circular Saw Blade For Milling Machine,circular saw,carbide saw blade,cutting saw,Cutting tools,Milling Cutter,End mill
Carbide Material Data
| Technical Info of Carbide Material | |||||
| Type of Carbide | MG Micro Grain |
Super MG Super Micro Grain |
NMG Nano Micro Grain |
EMG Extra Micro Grain |
|
|
|
|
|
||
| Chemical composition | Co(%) | 10 | 12 | 9 | 13 |
| WC incl. Doping (%) | 90 | 88 | 91 | 87 | |
| Physical Data | Density ISO 3369 (g/cm3) | 14.5 | 14.1 | 14.3 | 13.9 |
| Hardness HV30 ISO 3878 | 1610 | 1680 | 2000 | 1700 | |
| Hardness HRA ISO 3778 | 91.9 | 92.3 | 94.1 | 92.4 | |
| Transverse Rupture Strength (N/mm2) | >3600 | >3800 | >4000 | >3900 | |
| Transverse Rupture Strength (1000 psi) | >522 | >551 | >565 | >565 | |
| Metallographic Data | Porosity ISO 4505 A | <=2 | <=2 | <=2 | <=2 |
| Porosity ISO 4505 B | 00 | 00 | 00 | 00 | |
| Porosity ISO 4505 C | 00 | 00 | 00 | 00 | |
| Microstructure | Average Grain Size (um) | 0.6 | 0.5 | 0.2 | 0.5 |
| ISO-Range | Classification ISO 513 | K30 ~ K40 | K40 ~ K50 | K10 ~ K30 | K40 ~ K50 |
| Application | Work Material | Stainless steels Titanium alloys Plastics Non ferrous metals Corrosion and heat resistant steels | Stainless steels Titanium alloys Non ferrous metals Corrosion and heat resistant steels | Fibreglass-reinforced plastic Grey cast iron Carbon fibre-reinforeced materials Hardened steel Graphite composite materials Aluminium alloys | Corrosion and heat resistant stells Stainless steels Titanium alloys Non ferrous matals |
| Characters | Extra fine grain hard metal for solid carbide rotary tools applications in the ISO K30-K40/C2-C3. Suit for most cuttings. | Superior grain for solid carbide rotary tools applications in very wide range ISO K40 -K50 / C1-C2. Great for low and high speed milling and roughing work when milling and boring. | High hardness and extreme bending strength, suit for the drilling of electronic boards and other fibreglass-reinforced plastics and milling of difficult materials. | Murakami-Etching | |
Characteristics of tool material is the major factor to influence the surface quality after machining, efficiency, and tool life. It affords the direct cutting work during machining. Mostly the cutting performance depends on the materials of cutting edge, the geometric parameters and the choice of the tool structure and design. The productivity, tool life, tool consumption, processing costs, machining accuracy, and surface quality,..etc., almost depends on the choice of tool materials.
Carbide is made of difficult-to-fuse metal carbides (eg. WC, TiC, TaC, NbC, etc.) and the metal binder (eg. Co, Ni, etc.) powder by metallurgy method. It is with high hardness, good wear resistance, high heat resistance, and allowing higher cutting speed, several times higher than high-speed steel, but its strength and toughness are lower than high-speed steel, the craft is not as high-speed steel, so it is often made of various types of blades, welding or mechanical clamping on the turning tools, planer, end mill shank (cutter body).
In addition to the carbon and tungsten, of course it’s also plus cobalt and other alloys to increase its mechanical properties. Tungsten carbide is very hard, so it is often used to make cutting tools. The mechanical properties of tungsten steel consists of two parts, the first part is the cobalt content, which higher the content means the lower hardness, but the toughness is better; and the other is the powder particle size, the smaller the more wear-resistance, however it is more costly.
Production Equipment
BW production equipment includes : 10-axis Super Precision Grinding Machine,5 axis CNC Milling Machine,Band Sawing Machine,3-axis CNC Milling Machine,5-axis Super Precision Grinding Machine,4-axis CNC Milling Machine,6-axis Super Precision Grinding Machine,ccd Grinding Wheel Grinder,CNC Cylindrical Grinding Machine,Plane Grinding Machine,Vacuum Welding Furnace ,CNC Wire Cut E.D.M.,Traditional Grinding Machine,CNC Laser Cutting Machine,CNC Electric Discharge Machines(EDM),CNC Automatic Grinding Machines,CNC Cutting-off Machines,Ultrasonic Cleaner,Diamond Cutting Machine,50 ton Punching Machines,30 ton Punching Machines,Vacuum arc Deposition Systems,CVD Vacuum Coating Equipment,2500 Degrees Celsius Melting Furnace,Conventional Lathes,Conventional Milling machine,Special Tools Grinding Machine,Laser Engraving Machine,Welding Machine,etc.
Quality
We select the superior carbide material to produce cutting tools through the most advanced equipments with our professional techniques. Each product need to pass our strict inspect pro-cesses before it comes to your hand. We watch every detail and don't allow any neglect. Keep sharp nose to the modern trend and worldwide technology. We concern what you concern, depend your demand as our mission statement.
BW Testing equipment includes 2D/3D Optical Profile Projector,SEM-10000X,SEM-40000X,X-Ray,CCD Optical Video Measuring System,etc.
Packaging
Packaging Details : Packaging Boxes + Cushioning material + Plastic box
International Express :Shipping
We are an experienced manufacturer and exporter , our factories located in Taiwan . We supply and export consistently high quality products through our concerted efforts of all employees. Our theme is to create maximum value for customers as the theme, and constantly strive to provide customers with better services and professional information. Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.
Best wish to you
Use BW tool, the customer can work efficiently and gain a significant advantage over the competitors. Our objective is to help every customer achieve maximum benefits. BW cutting tool is the primary source for cutting tools that meet your standard or special applications. Choose the right tool, it will make you do the things right!
BW Cutting tools~ Best wisdom we have
- Experienced profession on industrial field.
- Full Innovative technical support.
- Ability to supply premium quality products specialized in carbide end mills.
BW Cutting tools ~Best window we open
- Adequate communication between user and maker.
- Fully understanding about users' demand.
- Dedication to customer relationships and services.
- Innovative spirit to contribute to customers' progress.
BW Cutting tools ~ Best wave we follow
- Keeping sharp and sensitive mind to receive new trend worldwide and updating it.
- State-of-the-art manufacturing with comprehensive knowledge of materials & coating.
- Constantly creating new products for use in modern and advanced production processes.
- Researching & Developing the ideal design of the tools.
- Continuous quality improvement for all applications.
BW Cutting tools ~ Best Worth we provide
- Wide range of quality products.
- Highly competitive pricing.
- Extended tool life.
- Economical and complete solutions.
- High machining speed and machining efficiency.
- Superior reliability & exceptional value.
Welcome to receive your inquiry for other special specifications if any. We love hearing from our customers, so your comments and feedback are always welcome.
Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.
Company Contact Information
Head Office:No. 13, Shiang Shang 2nd St.,West Chiu, Taichung, Taiwan 40356
Tel:886- 4 -2471-0048
Fax: 886- 4 -2471-4839
Please update us from our site to get the newest product info.
Skype: miachang5953 or moli995
Send Inquiry to This Supplier
You May Also Like
-
Saw BladeNegotiableMOQ: 2000 Pieces
-
Made in Taiwan Products 250mm Carbide-Grit Hack Saw BladeUS$ 1 - 30MOQ: 720 Pieces
-
Reciprocating Band Saw Blade 300 mm LongUS$ 2 - 8MOQ: 1000 Pieces
-
Diamond Blade Material Trubo Wave Blade for Granite/concreteUS$ 5 - 30MOQ: 5 Pieces
-
Woodworking TCT /HSS Planer BladeUS$ 0.3 - 2.2MOQ: 500 Sets
-
Top Quality Control Good Price Circular Diamond Saw BladeUS$ 0.75 - 4.75MOQ: 10 Pieces
-
SAW DISCNegotiableMOQ: 2000 Pieces
-
Electric Wood Band Saw Blade Tooth SetterNegotiableMOQ: 1
-
High Quality Band Saw BladeUS$ 3,999 - 6,888MOQ: 1 Set
-
Rotary Brush Perforation Clipper Blade Cutter BladeUS$ 0.4 - 0.6MOQ: 5000 Pieces
