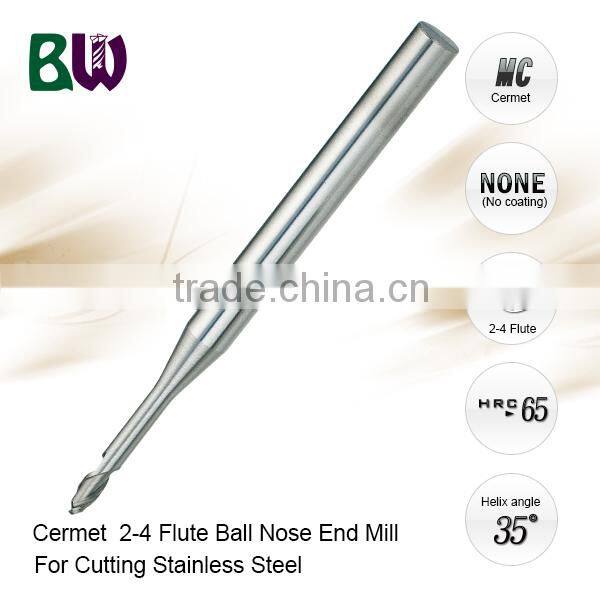

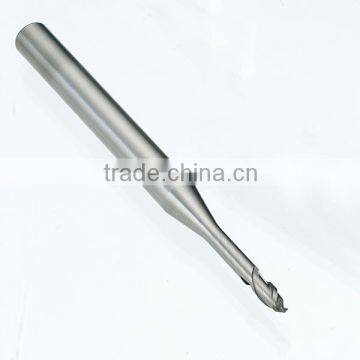

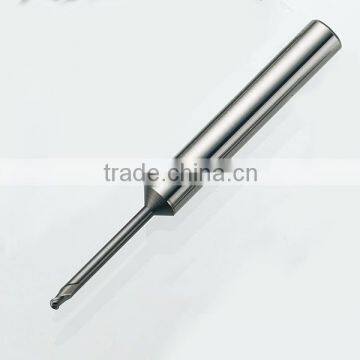

Cermet 2-4 Flute Ball Nose End Mill Cutter For Cutting Stainless Steel
| Product Name | Cermet 2-4 Flute Ball Nose End Mill Cutter For Cutting Stainless Steel |
| Place of Origin | Taiwan |
| Material | Cermet (MC) |
| Type |
|
| Description |
|

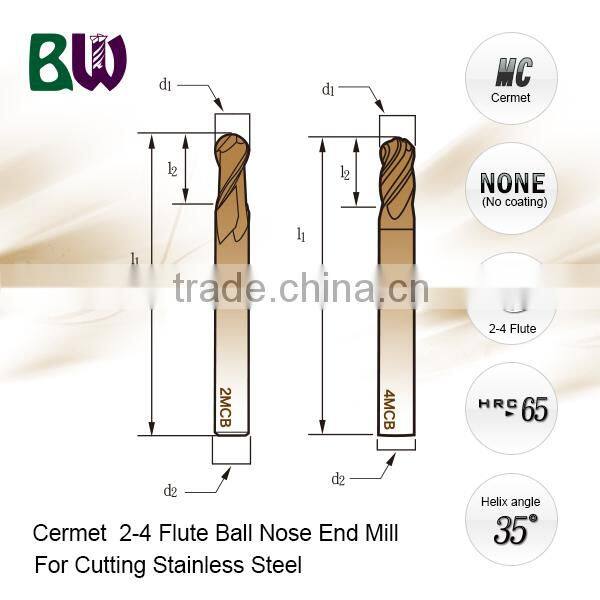

End Mill Cutter Specification:
| unit:mm | |||||
| Order Code | d1(e8/h10) | l2 | l1 | d2(e6) | Z |
| 2MC010B | R0.5 | 2 | 48 | 6 | 2 |
| 2MC020B | R1 | 4 | 48 | 6 | 2 |
| 2MC030B | R1.5 | 6 | 48 | 6 | 2 |
| 2MC040B | R2 | 8 | 48 | 6 | 2 |
| 2MC060B | R3 | 12 | 48 | 6 | 2 |
| 2MC080B | R4 | 16 | 60 | 8 | 2 |
| 2MC100B | R5 | 20 | 68 | 10 | 2 |
| 4MC040B | R2 | 11 | 48 | 6 | 4 |
| 4MC060B | R3 | 13 | 48 | 6 | 4 |
| 4MC080B | R4 | 19 | 60 | 8 | 4 |
| 4MC100B | R5 | 22 | 68 | 10 | 4 |
Cermet Cutter For Stainless Steel
keywords:ball cutter,ball end mill,For Stainless Steel,Cermet 2-4 Flute Ball Nose End Mill Cutter For Cutting Stainless Steel,Cermet end mill,Cermet Cutter,Cutting tools,Milling Cutter
Introduction to Cermet
Cermet mainly includes two series - alumina matrix (Al2O3) and nitride silicon (Si3N4), adding a variety of oxides, nitrides, carbides, and borides to form different varieties of metal ceramic materials of alumina matrix and nitride silicon matrix.
Cermet is the earliest metal matrix composites. It’s one non-homogeneous materials composed of metal and ceramic (particle reinforced composite material). Metal and ceramic can be composed of different proportions of different properties of materials. Metal matrix is usually as structural materials; Ceramic matrix is always use as tool materials.
The metal-ceramic composites is one multiphase composite material consisting of one or more of the ceramic phase and metal or alloy. Ideal metal ceramic is with both advantages of metal and ceramic. If the structure of metal ceramic is fine, it can not only maintain high-strength, high hardness, wear resistance, heat resistance, anti-oxidation and chemical stability of ceramic, but also with better metal toughness and plasticity, which is a very important tool and structural materials. Low density, high hardness, wear resistance, thermal conductivity, and it won’t be brittle easily by sudden cold or hot.
In addition, deposit one ceramic coating, good air tightness, high melting point, and poor heat transfer, on the metal surface to prevent oxidation or corrosion under high temperature. Metal-ceramic has benefits of metal toughness, high thermal conductivity and good thermal stability, corrosion and wear-resistant.
| Technical Info of Cermet Material | ||||||
| Main content | Color | Specific gravity | Hardness (HV) |
Hardness (Gpa) |
Tenacity (Mpa.m1/2) |
Flexural Strength (Mpa) |
| TiCN+Nb | blue gray | 6.4 |
1500~1650 | 14.5~16.2 | 10.0~10.5 | 2500~1960 |

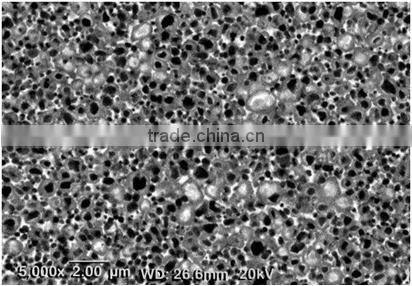

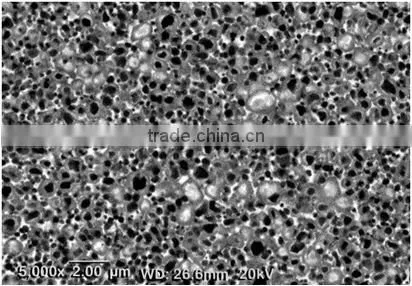

| Particle Diameter of Cermet Material | ||||||
| ||||||
Cermet Cutters
Following the development of machinery industry, a lot of difficult materials (such as chilled cast iron, hardened steel, stainless steel, Titanium alloy, etc.) are more widely applied. Those difficult to machine materials among them, such as stainless steel which with high content of Cr and Ni, Cr, can improve the strength and toughness of stainless steel, but it also increases the bonding tendency of stainless steel and cutter; Ni may apply a stable organization, but large plastic of organizations easily lead to hardening. Use tungsten cobalt carbide cutting tools to process, but the result is unsatisfactory. Metal ceramic, with high strength, high hardness, resistance to abrasion, anti-high temperature, anti-oxidation and chemical stability, has excellent performance and good solution for cutting specific difficult materials.
Production Equipment
BW production equipment includes : 10-axis Super Precision Grinding Machine,5 axis CNC Milling Machine,Band Sawing Machine,3-axis CNC Milling Machine,5-axis Super Precision Grinding Machine,4-axis CNC Milling Machine,6-axis Super Precision Grinding Machine,ccd Grinding Wheel Grinder,CNC Cylindrical Grinding Machine,Plane Grinding Machine,Vacuum Welding Furnace ,CNC Wire Cut E.D.M.,Traditional Grinding Machine,CNC Laser Cutting Machine,CNC Electric Discharge Machines(EDM),CNC Automatic Grinding Machines,CNC Cutting-off Machines,Ultrasonic Cleaner,Diamond Cutting Machine,50 ton Punching Machines,30 ton Punching Machines,Vacuum arc Deposition Systems,CVD Vacuum Coating Equipment,2500 Degrees Celsius Melting Furnace,Conventional Lathes,Conventional Milling machine,Special Tools Grinding Machine,Laser Engraving Machine,Welding Machine,etc.
Quality
We select the superior carbide material to produce cutting tools through the most advanced equipments with our professional techniques. Each product need to pass our strict inspect pro-cesses before it comes to your hand. We watch every detail and don't allow any neglect. Keep sharp nose to the modern trend and worldwide technology. We concern what you concern, depend your demand as our mission statement.
BW Testing equipment includes 2D/3D Optical Profile Projector,SEM-10000X,SEM-40000X,X-Ray,CCD Optical Video Measuring System,etc.
Packaging
Packaging Details : Packaging Boxes + Cushioning material + Plastic box
Shipping
International Express :
We are an experienced manufacturer and exporter , our factories located in Taiwan . We supply and export consistently high quality products through our concerted efforts of all employees. Our theme is to create maximum value for customers as the theme, and constantly strive to provide customers with better services and professional information. Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.
Best wish to you
Use BW tool, the customer can work efficiently and gain a significant advantage over the competitors. Our objective is to help every customer achieve maximum benefits. BW cutting tool is the primary source for cutting tools that meet your standard or special applications. Choose the right tool, it will make you do the things right!
BW Cutting tools~ Best wisdom we have
- Experienced profession on industrial field.
- Full Innovative technical support.
- Ability to supply premium quality products specialized in carbide end mills.
BW Cutting tools ~Best window we open
- Adequate communication between user and maker.
- Fully understanding about users' demand.
- Dedication to customer relationships and services.
- Innovative spirit to contribute to customers' progress.
BW Cutting tools ~ Best wave we follow
- Keeping sharp and sensitive mind to receive new trend worldwide and updating it.
- State-of-the-art manufacturing with comprehensive knowledge of materials & coating.
- Constantly creating new products for use in modern and advanced production processes.
- Researching & Developing the ideal design of the tools.
- Continuous quality improvement for all applications.
BW Cutting tools ~ Best Worth we provide
- Wide range of quality products.
- Highly competitive pricing.
- Extended tool life.
- Economical and complete solutions.
- High machining speed and machining efficiency.
-
Superior reliability & exceptional value.
Welcome to receive your inquiry for other special specifications if any. We love hearing from our customers, so your comments and feedback are always welcome.
Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.
