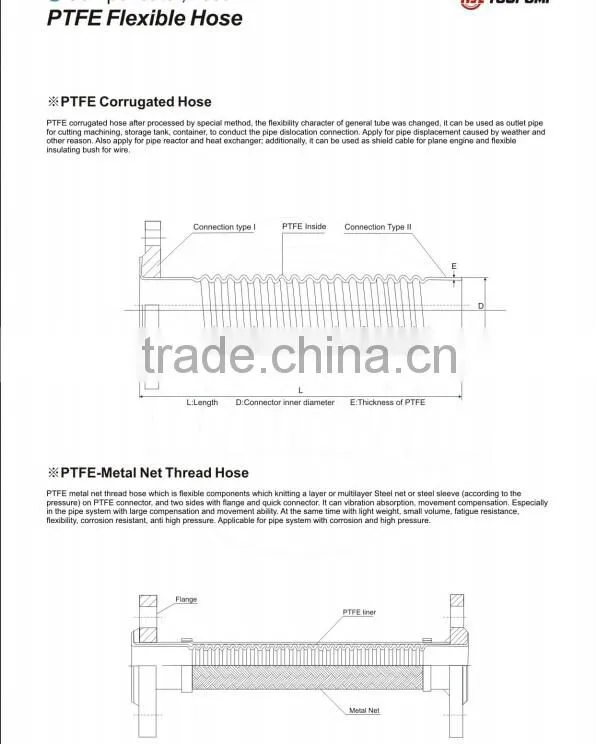

Stainless Steel PTFE lined Hose

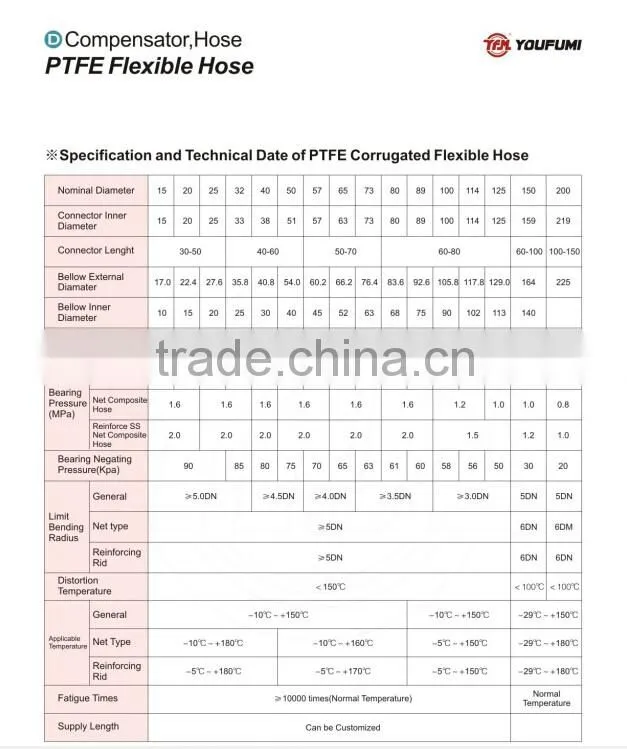

Technical Specification
Design and Manufacture Standard: GJB 2837
Flange Standard: ASME B 16.5 ,HG/T 20592,DIN ,JIS
Product Specification
Body Material: A105 , SS304 ,SS316 ,SS316L
Lining Material: PTFE , PFA , SS304+PTFE ,SS304+PFA
Nominal Diameter: 1/2"-8"(DN15~DN200)
Pressure Range: Class150 , PN10 , PN16
Connection Type: Flange ,Clamp ,FNPT/MNPT
Product description:

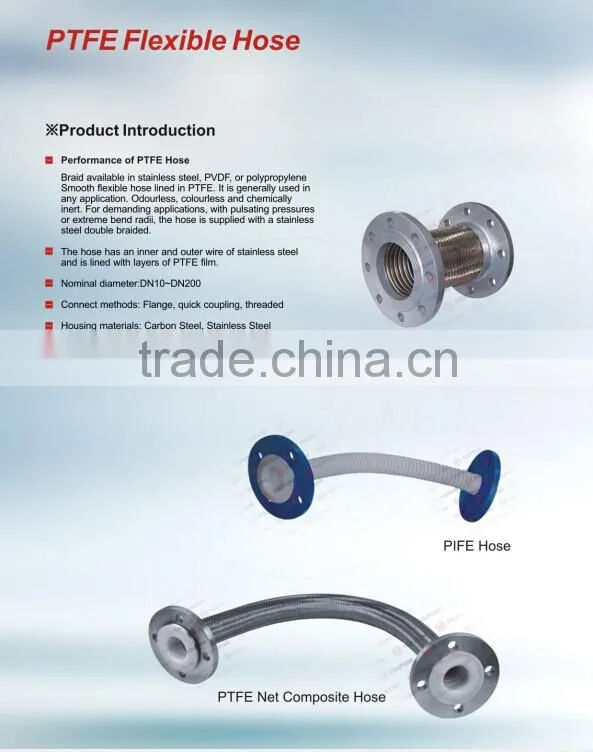

1.Stainless steel braided PTFE flexible hose is generally used in any application, odourless, colourless and chemically inert. For demanding applications, with pulsating pressures or extreme bend radii, the hose is supplied with a stainless steel double braided.
2.Nominal diameter:DN10~DN200
3.Connect methods: flange, camlock, F/M NPT
4.Housing materials: stainless steel
5.Suitable medium: Strong acid, strong alkali and strong oxidizing medium, and applicable in chemical, pharmaceutical, electronic, dairy, food, petrochemical industries.
6.It is non-stick and can be assembled in place. Flexible, handy, it accepts the smallest bend radius without kinking.
7.Lining material: PTFE, PFA,etc.
