Help CenterStable Performance TPMS Sensor Tire Valve AT528B
Related Products
-
New Arrival General Use Seatbelt Tube InflatorUS$ 8 - 16MOQ: 10 Pieces -
Manufacturer General Use Silver Seat Belt Tube InflatorUS$ 8 - 14MOQ: 10 Pieces
-
General Use Pretensioner Seatbelt InflatorUS$ 2.5 - 4MOQ: 10 Pieces
-
Top Quality Seatbelt Tube Inflator General Used for Janpanese Car and Etc AT02-RUS$ 8 - 14MOQ: 10 Pieces
-
Top Quality Gas Generator for Seatbelt Tube Inflator AT07US$ 8 - 16MOQ: 10 Pieces
1.TPMS Technical Specifications
| Receiver | |||
| Power | 3.7V | Operate Temperature | -40 °C~85°C |
| LCD Screen | -30 °C~80°C | Static Currency | <6mA |
| Operate Humidity | 5-98% | Display Weight | 105g |
| Sensor | |||
| Battery life | more than 6 years(internal) | Static Curreny | <0.8 uA |
| Operating Temperatre | -40 °C ~ 125 °C | Operative Humidity | 5-98% |
| Pressure reading Accuracy | ±1.45PSI/±0.1Bar | Pressure Range | 14.5PSI ~ 65.25PSI/1Bar ~ 4.5Bar |
2.Specifications
a. LCD display four tires' pressure and temperature, the tire status be clear at a glance;
b. Installation is simple, rapid installation for 2 minutes;
c. Germany's infineon SP37 sensor and America GE, advanced pressure sensor technology;
d. Driving induction technology, the sensor battery more durable, longer than 6 years, battery replacement is simple and easy;
e. Imported high-quality components, professional quality assurance.
f. External TPMS DIY independent installation.

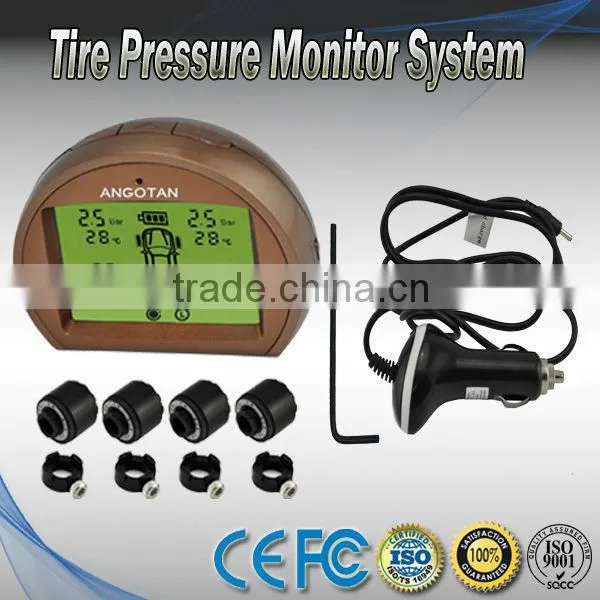

3.Packing List
| Packing List | |||
| Monitor | 1 pc | Double-side Tape | 1 pc |

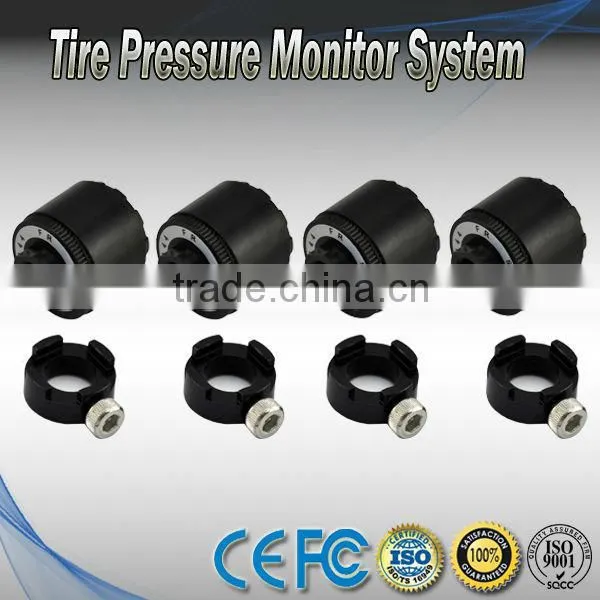

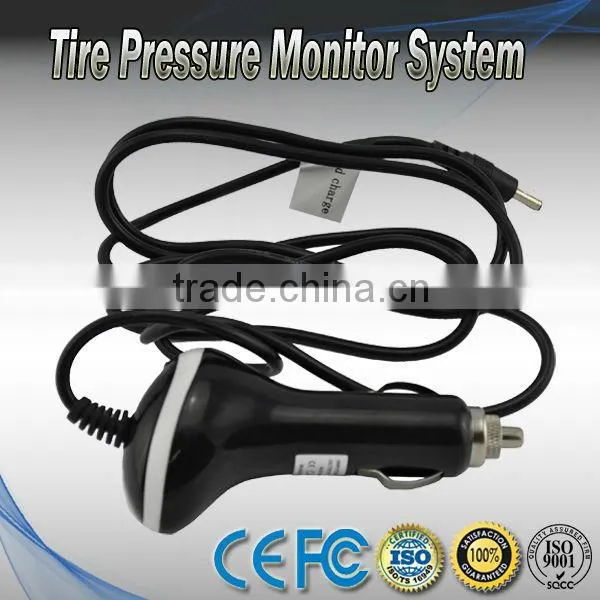

| Power Adapter | 1 pc | Sensors | 4 pc |
| Sensor Lock | 4 pc | Hex Wrench | 1 pc |
4.Question
A:What is a TMPS?
TPMS, Tire Pressure Monitoring System, is an electronic system to monitor the air pressure inside a tire.
B:What are the benefits of the TMPS?
Prevent puncture, protect vehicle and personnel safety
According to statistics, 70% of traffic accidents on expressway in China cause by puncture.30000 people die each year in traffic accidents on average.
Tire pressure is too low, accelerating tire thinning. It will be prone to puncture.
Tire pressure is too high, low tire traction and abating the brake performance.
Flat tire continue to drive will cause tire and wheel completely damaged.
Tire pressure imbalance, driving and braking easily deviation and roll downhill
Reduce the tire damage caused by lack of gas driving and reduce the consumption of gasoline-save money
Low pressure loss rate : (This information is derived from the highway traffic safety administration <NHTSA>)
Below the Normal Tire Pressure |
Increasing Fuel Consumption |
Reduce Tire Life Time |
10% |
2% |
15% |
15% |
3% |
20% |
20% |
4.5% |
28% |
30% |
6.25% |
37% |
According to the estimates from The Department of Transportation (USA):
• 80,000 accidents are caused by low tire pressure each year
• Properly inflated tires extend tire lifetime at least 35%.
• 4 million gallons of fuel per day (over 1.3 billion per year) are wasted due to low tire pressure.
Therefore, under the laws in many countries, such as USA, European Union, are through bills with a
mandate that new vehicles must have TPMS equipped in. This would be a great opportunity for you,
as you can provide your customers with this safety product.
