M02-9A Factory Outlet Solid Custom Spring Grinding Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

WNJ

Zhejiang Omnipotent Spring Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name WNJ

Model Number M02-9A

Machine Type Other, Spring Grinding Machine

Raw Material Other

Material / Metal Processed Stainless Steel

Power Other, Cnc, 3 phase 380V. AC.50HZ

Automation Automatic

Extra Services Other

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Item Name	Factory Outlet Solid Custom Spring Grinding Machine
Style	M02-9A
Color	Grey/Blue
Steel Wire Diameter of Grinding Spring (mm)	Φ1- Φ9
Diameter of Grinding Spring (mm)	≤100
Height of Grinding Spring (mm)	20-250
Grinding Wheel Size (outside x inside x height) (mm)	Φ450 x 60
Grinding Head Speed	1,430n/min
Machine Size (length x width x height)	1550x1980x2550mm
Net Weight of The Machine	2460kg
Power	3 phase 380V. AC.50HZ
Motor Power(motor 5 pcs)	15.28 KW

PRODUCT PARAMETERS

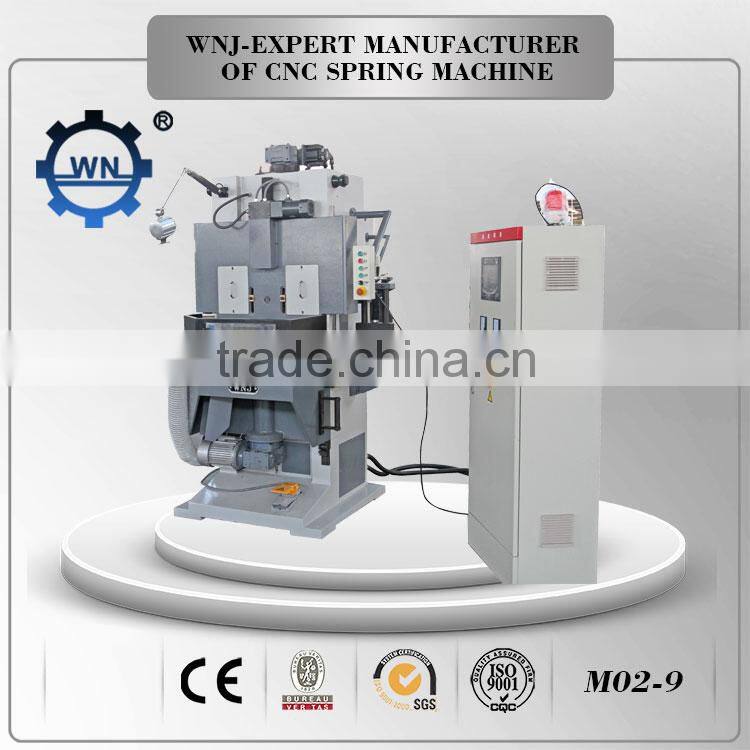

M02-9 CNC spring end grinding machine is the newly developed grinding spring machine based on the advanced CNC end grinding technology at home and abroad.
It adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming.
The feed speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen.
This machine is convenient to operate and has a high efficiency and it is the ideal equipment for double-end grinding of large quantity spring.
