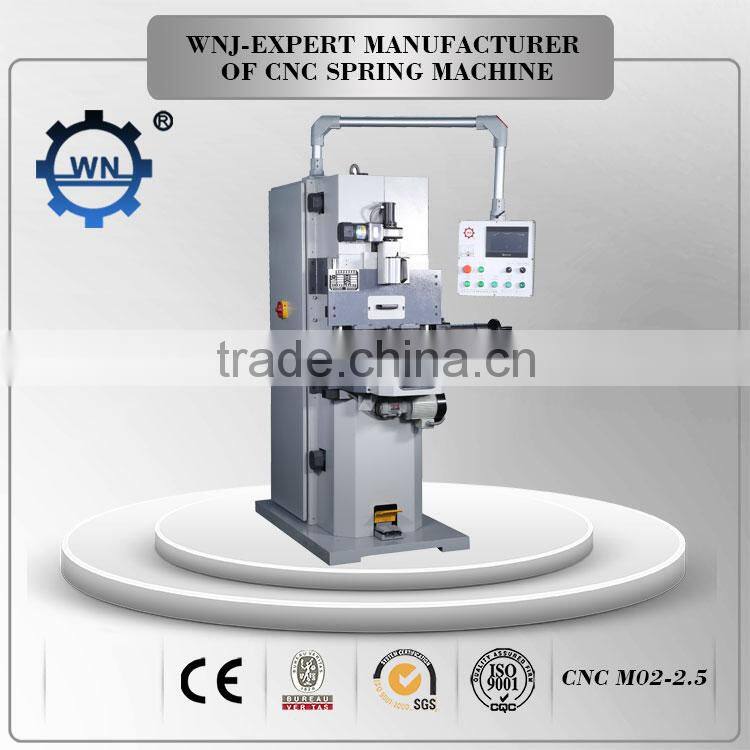

Spring Machine Grinding With Taiwan Computer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

CNC

Zhejiang Omnipotent Spring Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 9mm

Max. Grinding Length 100

Place of Origin Zhejiang, China

Brand Name WNJ

Model Number CNC M02-2.5

Voltage three phase 380V AC 50 HZ

Power(W) 3.55

Dimension(L*W*H) 650x700x1800mm

Weight 550kg

Certification 3C

After-sales Service Provided Engineers available to service machinery overseas

Item Name	Spring Machine Grinding With Taiwan Computer
Style	CNC M02-2.5
Color	Grey/Blue
Steel Wire Diameter of Grinding Spring (mm)	Φ0.5- Φ2.5
Diameter of Grinding Spring (mm)	Φ5- Φ30
Height of Grinding Spring (mm)	8-90
Grinding Wheel Size (outside x inside x height) (mm)	Φ350* Φ135*50
Grinding Head Speed	1,430n/min
Machine Size (length x width x height)	650x700x1800mm
Net Weight of The Machine	550kg
Power	3 phase 380V. AC.50HZ
Motor Power(motor 5 pcs)	3.55 KW

PRODUCT PARAMETERS

The grinding head is controlled by computers, realizing following properties,such as,automatic replacing,automatic feeding speed adjustment,automatic feeding quantity adjustment,automatic-compensation of grinding pressure,as wellas manual operation for grinding pressure.
The rotational speed of the feed tray could be adjusted by frequency-control gear device.
The lower grinding head adopts manual-compensation for the wearing of emery wheel.
