Machinery Supplier Top Quality Solid Automatic Spring Machine Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WNJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer 9 Years Super Seller Automatic Machine for Spring GrinderNegotiableMOQ: 1 Set -
Manufactured in China Top Quality Solid CNC Spring Grinding MachineNegotiableMOQ: 1 Set
-
Manufactured in China New Arrive Leaf Spring Grinding Manufacturing MachineNegotiableMOQ: 1 Set
-
28 Years Manufacture Experience Professional CNC Leaf Grinding MachineNegotiableMOQ: 1 Piece
-
28 Years Supplier High Quality CNC Spring Small Grinding MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
WNJ
Model Number
M04-2.5
Material / Metal Processed
Stainless Steel
Automation
Automatic
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Power
Other, 3 phase 380V. AC.50HZ

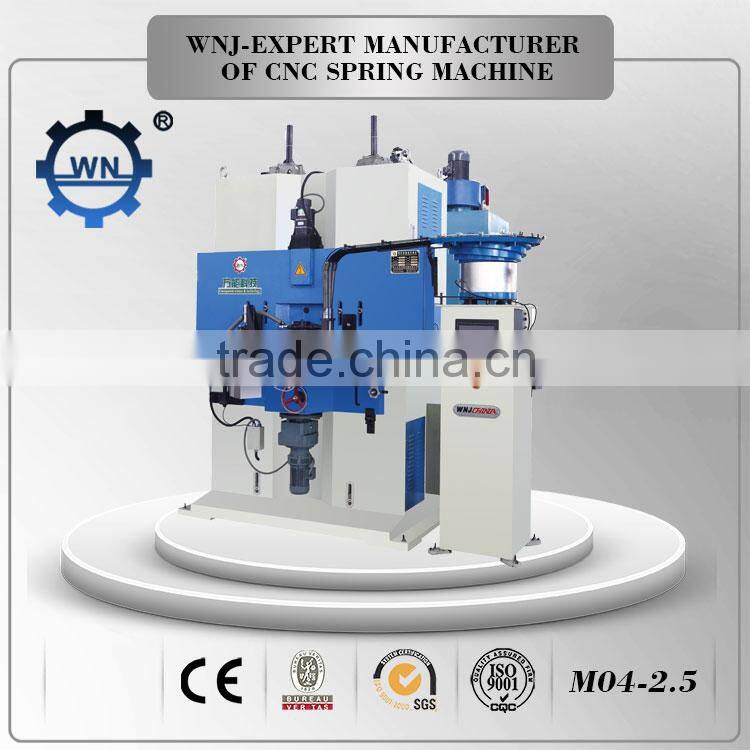

| Item Name | Machinery Supplier Top Quality Solid Automatic Spring Machine Price |
| Style | M04-2.5 |
| Color | Grey/Blue |
| Dia of Tray (mm) | Φ580 |
| Diameter of Grinding Spring (mm) | Φ5~ Φ30 |
Steel Wire Diameter of Grinding Spring (mm) |
Φ0.5~ Φ2.5 |
Height of Grinding Spring (mm) |
10-100 |
| Grinding Head Speed | 1,400r/min |
Grinding Wheel Size (Outside*Height) |
Φ440* Φ140*55 |
| Machine Size (Length x Width x Height) | 1200 x1300x2000 |
| Net Weight of The Machine | 2000kg |
| Power | 3 phase 380V. AC.50HZ |
| Motor Power(motor 5 pcs) | 10.5 KW |
PRODUCT PARAMETERS
- It is equipped with four grinding stones,which makes rough and precision grinding at one time.It therefore,becomes more efficient compared to traditional grinding machine.
- It adopts PLC system of Panasonic ,touch screen control,automatic alarm,easy operation,fixed-frequency governor is used in the rotating speed of tray along with automatic feeder .
- The performance evaluation has up to the international standard.
-
production line is formed to lessen the labor by working with spring coiling machine,temper furnace and other ancilary equipment.

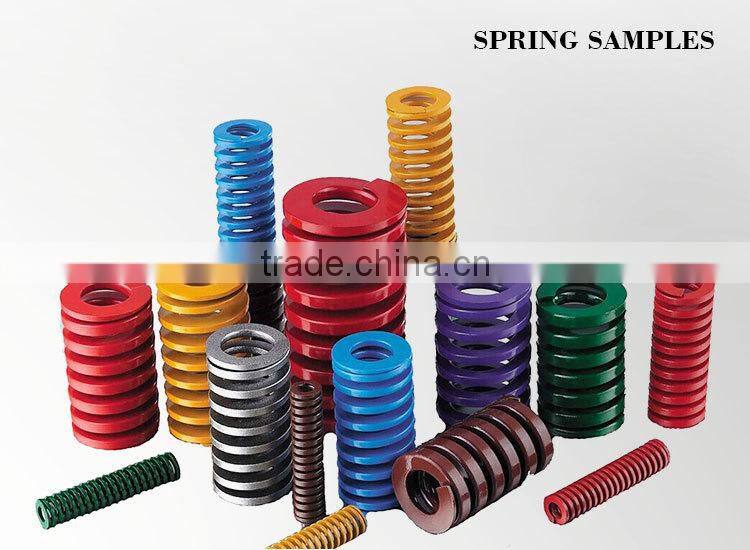

- Especially suitable for valve springs,clutch springs and other special-shaped springs in large quantities.
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
