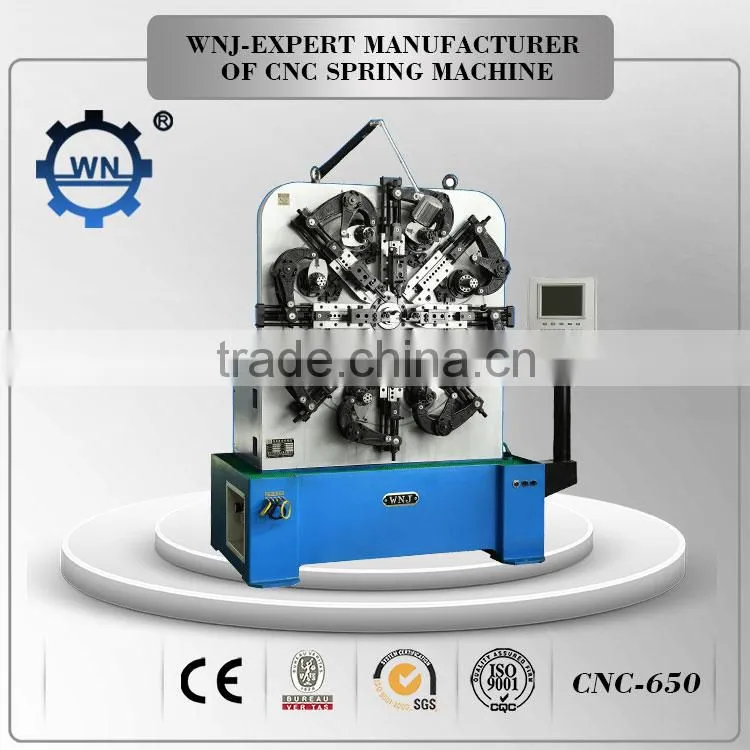

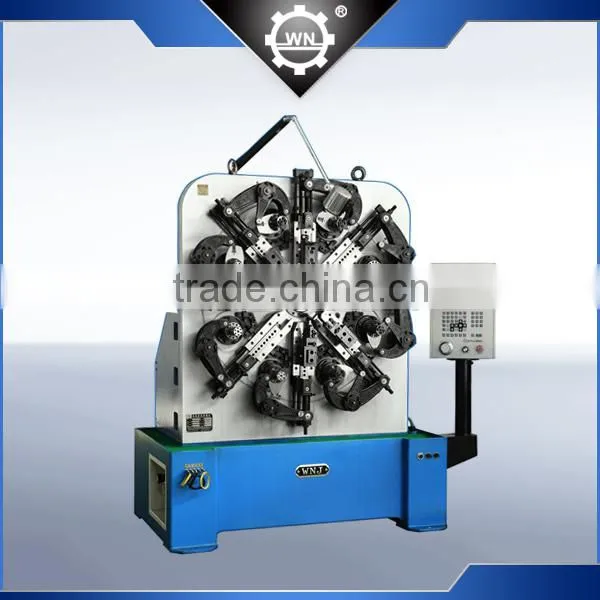

CNC-650 5 Axis Second Hand CNC Spring Manufacturer Machine in WNJ

Name: CNC-650 5 Axis Second Hand CNC Spring Manufacturer Machine in WNJ
Brand: WNJ
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	WNJ	Model Number:	CNC-650
Condition:	New	After-sales Service Provided:	Engineers available to service machinery overseas

Item Name	CNC-650 5 Axis Second Hand CNC Spring Manufacturer Machine in WNJ
Style	CNC-650
Color	Grey/Blue
Wire Diameter of Coiled Material	φ2.5 -φ5.0mm
Max. Outside Diameter of Coiled Spring	φ100mm
Instruction Value of Wire Feed	±0.01 - ±9999.99
Instruction Value of Cam	±0.1° - ±359.9°
Savable System	99 groups
Motor Power	11KW (X-Y axis), 1.0KW (Z axis)
Power	Three phase 380V, AC ,50HZ
Weight	3500kg

PRODUCT PARAMETERS

Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan .
This machine is for camdesign,set up spring with high speed and accuracy.And with stable good enough .
Wire feed with the function of rotary wire,so it is easy to adjust .
Computer interface displayed in Chinese and English which makes the operation easy .

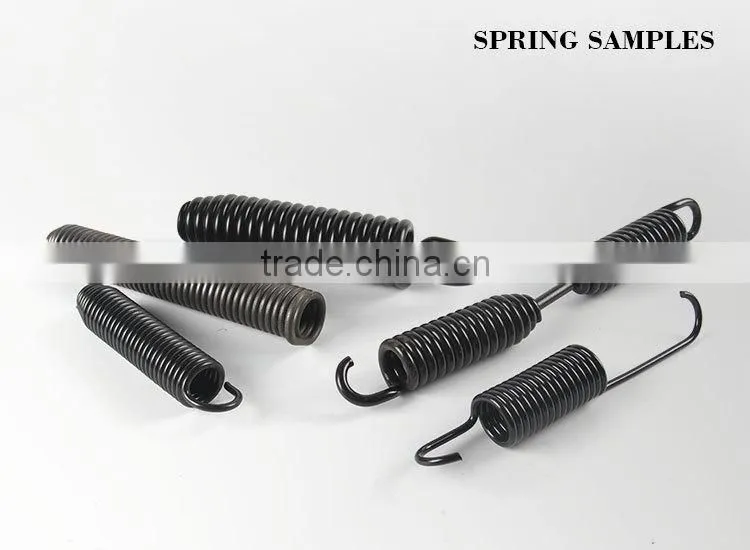

It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring .
