Specifications
1. Including Filter,Regulator,Lubricator three parts2. In stock
3. Competitive price
A brief description of the product and advantage
Air source treatment unit
1. Including filter regulator and lubricator 2 Parts
2. In stock
3. Competitive price
Specifications
Air source treatment unit
1. It includes 3 parts: filter, regulator and lubricator.
2. It has standard dimensions and steady performance.
3. We manufacture all important parts by ourself to insure the quality.
4. Outsourcing parts were selected and tested very strictly.
5. Auto Drain can be selected. All size have overflow function.
Air source treatment unit
Model |
AC1000-M5 |
AC2000-01 |
AC2000-02 |
AC2500-02 |
AC2500-03 |
AC3000-02 |
|
Rated Flow |
90 |
500 |
500 |
1500 |
1500 |
2000 |
|
Joint Pipe Bore |
M5 |
G1/8" |
G1/4" |
G1/4" |
G3/8" |
G1/4" |
|
Filter Precision |
25 μm |
||||||
Highest Working Pressure |
1.0 MPa |
||||||
Ensured Pressure Resistance |
1.5 MPa |
||||||
Operating Temperature Range |
5-60 °C |
||||||
Range of Adjustable Pressure |
0.05-0.7 MPa |
0.05-0.85 MPa |
|||||
Recommended Oil Use |
ISO VG32 |
||||||
Container Material |
Polycarbonate |
||||||
Protective Cove |
Not Available |
Available |
|||||
Drain Function |
Differential Drain |
Differential Drain, automatic Drain |
|||||
Valve Type |
With Overflow |
||||||
Composing Elements |
Filter |
AF1000-M5 |
AF2000-01 |
AF2000-02 |
AF3000-02 |
AF3000-03 |
AF3000-02 |
Regulator |
AR1000-M5 |
AR2000-01 |
AR2000-02 |
AR2500-02 |
AR2500-03 |
AR3000-02 |
|
Lubricator |
AL1000-M5 |
AL2000-01 |
AL2000-02 |
AL3000-02 |
AL3000-03 |
AL3000-02 |
|
Model |
AC3000-03 |
AC4000-03 |
AC4000-04 |
AC4000-06 |
AC5000-06 |
AC5000-10 |
|
Rated Flow |
2000 |
4000 |
4000 |
4500 |
5000 |
5000 |
|
Joint Pipe Bore |
G3/8" |
G3/8" |
G1/2" |
G3/4" |
G3/4" |
G1" |
|
Filter Precision |
25 μm |
||||||
Highest Working Pressure |
1.0 MPa |
||||||
Ensured Pressure Resistance |
1.5 MPa |
||||||
Operating Temperature Range |
5-60 °C |
||||||
Range of Adjustable Pressure |
0.05-0.85 MPa |
||||||
Recommended Oil Use |
ISO VG32 |
||||||
Container Material |
Polycarbonate |
||||||
Protective Cove |
Available |
||||||
Drain Function |
Differential Drain, automatic Drain |
||||||
Valve Type |
With Overflow |
||||||
Composing Elements |
Filter |
AF3000-03 |
AF4000-03 |
AF4000-04 |
AF4000-06 |
AF5000-06 |
AF5000-10 |
Regulator |
AR3000-03 |
AR4000-03 |
AR4000-04 |
AR4000-06 |
AR5000-06 |
AR5000-10 |
|
Lubricator |
AL3000-03 |
AL4000-03 |
AL4000-04 |
AL4000-06 |
AL5000-06 |
AL5000-10 |
|

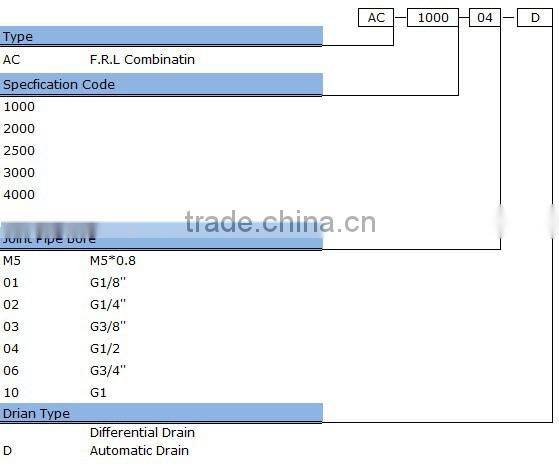

How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Ningbo Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
1. Competitive Price
2. In stock & Best delivery time
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Customization is available.
